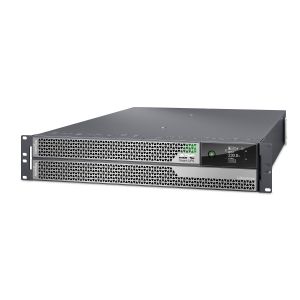

APC APC Smart-UPS Ultra On-Line, 5000VA, Lithium-ion, Rack/Tower 2U, 230V, Hardwired 3-Wire Output, Network Card, Extended runtime, W/rail kit

IMG 1 of 7
Our Price:
$14,224.00
RRP:
$16,830.00
You Save:
$2,606.00
or quickly purchase this product
Backorder
Part Number:
557279
(?) Brand:
APC Web Site
Manuf No:
SRTL5KRM2UI-HW
SRTL5KRM2UIHW
Shipping Weight:
38.5 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
SRTL5KRM2UI-HW, SRTL5KRM2UIHW, UPASRTL5KRM2UIHW, UPA-SRTL5KRM2UI-HW, 731304738015, 6279064
2U, 5000W/5000VA UPS rack/ tower convertible UPS with autorotating LCD display
Lithium-ion batteries lasts 3x VRLA UPS, no need to replace the battery during the life of the UPS
EcoStruxure Ready for remote monitoring and management
1-Year Secure Network Management Card subscription included
5-year warranty on UPS and internal batteries

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5KVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with Hardwired input and Hardwired 3-Wire output. It embeded Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Specifications

Overview
Lead timeUsually in Stock
Main
Run time for load
W
Min-max: 500-5000 W
5min 17s
Max. Capacity Used
100 %
Main Input Voltage230 V AC 1 phase
Product or component typeUninterruptible power supply (UPS)
Other Input Voltage220 V
Main Output Voltage230 V AC 1 phase
Other Output Voltage220 V
Rated power in W5000 W
Rated power in VA5000 VA
Output connector typeHard wire 3-wire (1P + N + E) for 1 zone(s)
Number of rack unit2U
Battery typeLi-Ion (Lithium-Ion)
Provided equipmentUSB cable
Front cover
Earth terminal block
Temperature sensor
Stabilization feet
Rail extension
2P-3P connector
Range of productSmart-UPS Ultra
Complementary
Battery typeLi-Ion (Lithium-Ion) internal included
UPS connectivitySerial port
USB port
Available expansion slot
Mounting modeRack/tower convertible with included kit
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Battery recharge time1.5 h
Number of battery replacement quantity1
Battery voltage180 V
Battery charger power600 W rated
Battery life810 year(s)
Extended runtime1
Physical
ColourSilver grey
Height86 mm
Width432 mm
Depth701 mm
Net weight29.2 kg
Mounting locationFront
Mounting preferenceNo preference
Mounting modeTower-mounted with kit
Rack-mounted with kit
USB compatibleYes
Mounting positionHorizontal
Input
Network frequency40...70 Hz auto-sensing
Number of input connectors1 hard wire 3-wire (1P + N + E)
Input voltage limits180...275 V adjustable (half load)
Output
Maximum configurable power in W5000 W
Harmonic distortionLess than 2 %
Output frequency50/60 Hz +/- 3 Hz sync to mains
Crest factor3 : 1
UPS typeDouble conversion online
Wave typeSine wave
Bypass typeInternal bypass (automatic and manual)
Maximum configurable power in VA5000 VA
Conformance
Product certificationsCE
UKCA
EN/IEC 62040-1
MarkingCE Mark
UKCA
Environmental
Ambient air temperature for operation040 C
Relative humidity095 % non-condensing
Operating altitude0...10000 ft
Ambient air temperature for storage-1545 C
Storage Relative Humidity095 % non-condensing
Storage altitude015240 m
Acoustic level55 dBA
Heat dissipation931 Btu/h
IP degree of protectionIP20
Communications & Management
Preinstalled deviceNetwork management card
AlarmAudible and visible alarms : prioritized by severity
Emergency power offYes
Surge Protection and Filtering
Surge energy rate1260 J
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height39.2 cm
Package 1 Width58.5 cm
Package 1 Length98.4 cm
Package 1 Weight38.5 kg
Contractual warranty
Warranty (in months)60
