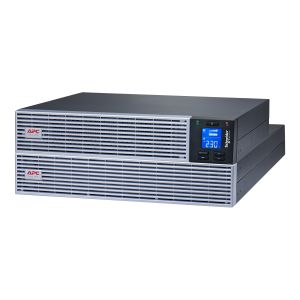

APC APC Easy UPS 1000VA/800W Online UPS, 4U Rackmount, 230V/10A Input, 3x IEC C13 Outlets, Lithium Battery, W/ Extended Battery Pack, W/ Rail Kit

IMG 1 of 6
Our Price:
$3,760.95
RRP:
$4,455.00
You Save:
$694.05
or quickly purchase this product
Backorder
Part Number:
557280
(?) Brand:
APC Web Site
Manuf No:
SRVL1KRILRK
Shipping Weight:
45 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
SRVL1KRILRK, UPASRVL1KRILRK, UPA-SRVL1KRILRK, 5659650, 731304436782
1000VA/900W double-conversion on-line pure sine wave 4U rackmount UPS
Rack/Tower convertible (rail kit included)
Add up to 2 external battery packs (SRVL48RMBP2U) for extended runtime
Lithium-ion battery minimizes the need to replace battery during UPS lifetime
Graceful shutdown of servers and workstations

Description

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line 4U rackmount lithium-ion UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRVL comes with IEC320 C14 input and 6x IEC320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. With purchased Network Management Card and license, the UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Emergency Power Off (EPO) function can remotely shut off the UPS in an emergency. It's ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. The UPS has a 3-year warranty and Lithium-Ion battery has a 5-year warranty. The SRVL comes with a easy-to-read 90 degree rotatable LCD display for detailed and accurate information on UPS status. This lithium-ion UPS is ideal for Micro data centers, Co-working space, ATMs Surveillance, Server rooms, POS, and Healthcare IT. Rack/ Tower convertible design with default accessory kit.

Specifications

Overview
PresentationDouble-conversion On-line UPS with Lithium-Ion battery to scalable runtime. Ideal UPS for essential power protection needs even in the most unstable power conditions.
Lead timeUsually in Stock
Main
Run time for load
W
Min-max: 90-900 W
2h 16min
Max. Capacity Used
100 %
Main Input Voltage230 V AC 1 phase
Product or component typeUninterruptible power supply (UPS)
Other Input Voltage230 V
Output voltage230 V AC 1 phase
Other Output Voltage220 V
240 V
Rated power in W900 W
rated power in VA1000 VA
Input Connection TypeIEC 60320 C14
Output connection type6 IEC 60320 C13
Number of rack unit4U
Provided equipmentBasic UPS signalling RS-232 cable
USB cable
RJ45 cable
RJ11 cable
C13-C14 power cord
IEC-C14 - Shuko input power cord
Rack mounting brackets
Stabilization feet
User manual
Safety guide
Battery cable
Range of productEasy UPS On-Line
Complementary
Battery typeLi-Ion (Lithium-Ion) external included
UPS connectivitySerial port
USB port
Available expansion slot
Mounting modeRack-mounted with included kit
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Battery typeLi-Ion (Lithium-Ion)
Battery voltage48 V
Extended runtime1
Number of battery filled slots0
Number of battery free slots0
Battery recharge time8.5 h
Battery life810 year(s)
Battery charger power240 W
General
Number of power module filled slots0
Number of power module free slots0
RedundantNo
Physical
ColourBlack with silver front bezel
Height172 mm
Width438 mm
Depth616 mm
Net weight36.3 kg
USB compatibleYes
Mounting positionHorizontal and vertical
Input
Input voltage limits160...300 V full load
110...300 V 60 % load
Network frequency40...70 Hz auto-sensing
Output
Maximum configurable power in VA1000 VA
Maximum configurable power in W900 W
Output frequency50/60 Hz +/- 3 Hz sync to mains
UPS typeDouble conversion online
Wave typeSine wave
Efficiency90 % (full load)
Bypass typeInternal bypass (automatic and manual)
Crest factor3 : 1
Conformance
Product certificationsCB
CE
RCM
EAC
TISI
UKCA
KC
UN 38.3
IEC 62619
Environmental
Ambient air temperature for operation040 C
Relative humidity095 % non-condensing
Operating altitude0...3000 m
Ambient air temperature for storage-2050 C
Storage Relative Humidity095 % non-condensing
Storage altitude015000 m
Acoustic level50 dBA
Heat dissipation341 W
IP degree of protectionIP20
Communications & Management
AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power offYes
Control panelMultifunction LCD status and control console
Surge Protection and Filtering
Surge energy rate945 J
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height48 cm
Package 1 Width80 cm
Package 1 Length60 cm
Package 1 Weight48.82 kg
Contractual warranty
Warranty (in months)36 UPS|60 Battery
