HOME / Back -> Power Protection/UPS -> Rack Mount -> APC

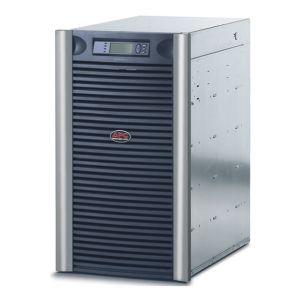

APC APC APC Symmetra LX 12kVA Scalable to 16kVA N+1 Rack-mount, 220/230/240V or 380/400/415V

IMG 1 of 10
Our Price:
$29,623.20
RRP:
$30,800.00
You Save:
$1,176.80
or quickly purchase this product
Backorder
Part Number:
557281
(?) Brand:
APC Web Site
Manuf No:
SYA12K16RMI
Shipping Weight:
290 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
SYA12K16RMI, UPASYA12K16RMI, UPA-SYA12K16RMI, 7330381788819

Description

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

Specifications

Overview
PresentationHigh performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Lead timeUsually in Stock
Main
Run time for load
W
Min-max: 840-8400 W
7min 32s
Max. Capacity Used
100 %
Main Input Voltage220 V AC 1 phase
400 V AC 3 phases
230 V AC 1 phase
240 V AC 1 phase
380 V AC 3 phases
415 V AC 3 phases
Product or component typeUninterruptible power supply (UPS)
Other Input Voltage220 V
240 V
380 V
415 V
Main Output Voltage220 V AC 1 phase
230 V AC 1 phase
240 V AC 1 phase
Other Output Voltage220 V
240 V
Rated power in W8400 W
Rated power in VA12000 VA
output connection type8 IEC 60320 C13
10 IEC 60320 C19
Output connector typeHard wire 3-wire (H N + E) for 1 zone(s)
Number of rack unit19U
Battery typeLead-acid battery
Provided equipmentCD with software
Documentation CD
Installation guide
User manual
Web/SNMP management card
Range of productSymmetra LX
Complementary
Battery typeLead-acid internal included
UPS connectivitySerial port
Available expansion slot
Pre-installed network management card 3
Mounting modeRack-mounted with included kit
Batteries & Runtime
Run Time
View Runtime Graph
Number of battery filled slots3
Number of battery free slots1
Battery recharge time3 h
Additional informationConfigurable for 220 : 230 or 240 nominal output voltage
Battery charger power861 W rated
Battery life35 year(s)
Extended runtime1
General
product web sub-family4kVA power increments
Number of power module free slots2
Number of power module filled slots3
RedundantYes
Physical
ColourBlack
Silver
Height838 mm
Width472 mm
Depth688 mm
Net weight242.74 kg
Mounting locationFront
Mounting preferenceLower
Mounting modeRack-mounted
Two post mountable0
USB compatibleNo
Input
Network frequency45...65 Hz auto-sensing
Number of input connectors1 hard wire 3-wire (1P + N + E)
1 hard wire 5-wire (3P + N + E)
Input voltage limits155...276 V
290...480 V 3:1
Input harmonic distortionLess than 7 % for full load
Input Power Factor at Full Load0.98
Output
Maximum configurable power in W11200 W
Harmonic distortionLess than 5 % at full load
Output frequency47...63 Hz sync to mains
60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised
50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
Crest factorUp to 5 : 1
UPS typeDouble conversion online
Wave typeSine wave
Bypass typeInternal bypass (automatic and manual)
Efficiency90 % (full load)
Maximum output current55 A
Maximum configurable power in VA16000 VA
Conformance
Product certificationsC-Tick
CE
GOST
VDE
StandardsEN 50091-1
EN 50091-2
EN 55022 class A
EN 55024
EN 60950
IEC 60950
Environmental
Ambient air temperature for operation040 C
Relative humidity095 %
Operating altitude0...10000 ft
Ambient air temperature for storage-1545 C
Storage Relative Humidity095 %
Storage altitude04572 m
Acoustic level62 dBA
Heat dissipation3707 Btu/h
Communications & Management
Free slots1
Preinstalled deviceNetwork management card 2 with environmental monitoring
Control panelMultifunction LCD status and control console
AlarmAudible and visible alarms : prioritized by severity
Emergency power offYes
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height105.4 cm
Package 1 Width59.9 cm
Package 1 Length99.7 cm
Package 1 Weight290 kg
Contractual warranty
Warranty (in months)24
