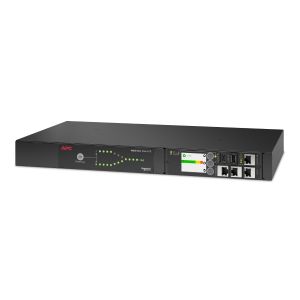

APC APC Netshelter Rack Automatic Transfer Switch, 1U, 16A, 230V, 2 IEC309 IN, 1 IEC309 OUT, 50/60Hz

IMG 1 of 3
Our Price:
$1,876.95
RRP:
$2,227.50
You Save:
$350.55
or quickly purchase this product
Backorder
Part Number:
557282
(?) Brand:
APC Web Site
Manuf No:
AP4422A
Shipping Weight:
7 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
AP4422A, UPAAP4422A, UPA-AP4422A, 731304432432, 5631919
1-Year Secure Network Management Card subscription included
Minimized downtime disruption with Field-replaceable NMC
Monitor temperature and humidity efficiently
Dual input power cords to enhance uptime for critcal loads
Connect and manage up to 32 Rack ATSs from one IP address

Description

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4422A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4422A is single phase 1U Rack ATS with 16A rated current, 230V rated voltage and 3840VA load capacity. It comes with 2 IEC 309 inlet and 1 IEC 309 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Specifications

Overview
Lead timeUsually in Stock
Main
Main Input Voltage230 V AC 1 phase
Product or component typeAutomatic transfer switch
Main Output Voltage230 V AC 1 phase
Input Connection TypeIEC 60309 16 A 2P + E
Number of rack unit1U
Cable length2.43 m
Number of cables2
Provided equipmentMounting hardware
Rack mounting brackets
Physical
ColourBlack
Height44 mm
Width432 mm
Depth236 mm
Net weight4.21 kg
Mounting locationFront
Mounting preferenceNo preference
Mounting modeRack-mounted
Mounting positionHorizontal
Input
Network frequency50/60 Hz
[In] rated current16 A
Permissible voltage207253 V
Max line current16 A
Input current limits16 A
Load capacity3840 VA
Output
Number of power socket outlets1 IEC 60309 16 A 2P + E
Number of power socket outlets1
Protection typeWithout circuit breaker
Power cable length0.91 m
Conformance
Product certificationsCE
EMC directive 2004/108/EC
LVD directive 2006/95/EC
StandardsEN/IEC 60950-1
UL 60950-1
Environmental
Ambient air temperature for operation-545 C
Relative humidity595 %
Operating altitude0...10000 ft
Ambient air temperature for storage-2565 C
Storage Relative Humidity595 %
Storage altitude015240 m
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height12.000 cm
Package 1 Width35.500 cm
Package 1 Length60.000 cm
Package 1 Weight6.462 kg
Contractual warranty
Warranty (in months)24

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (APC) web site.
