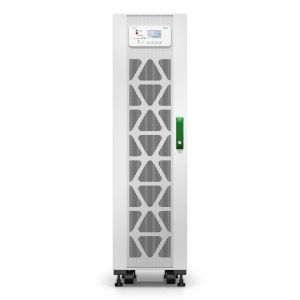

APC APC Easy UPS 3S 10 kVA 400 V 3;1 UPS for internal batteries

IMG 1 of 2
Our Price:
$9,004.90
RRP:
$10,312.50
You Save:
$1,307.60
or quickly purchase this product
Backorder
Part Number:
557298
(?) Brand:
APC Web Site
Manuf No:
E3SUPS10K3IB
Shipping Weight:
150 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
E3SUPS10K3IB, UPAE3SUPS10K3IB, UPA-E3SUPS10K3IB, 4563656, 731304340720
Easy UPS 3S is easy to install and start up
Parallel up to 4 UPSs for capacity or redundancy
Extended runtime options available
EcoStruxure IT: Enables resilient, secure, and sustainable IT environments

Description

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime.

Specifications

Overview
PresentationHigh-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.
Lead timeUsually Ships within 6 Weeks
Main
Main Input Voltage400 V 3 phases
Product or component typeUninterruptible power supply (UPS)
Other Input Voltage380 V
415 V
Output voltage230 V
Other Output Voltage220 V
240 V
Rated power in W10 kW
Rated power in VA10 kVA
Provided equipmentDust filter
Installation guide
Range of productEasy UPS 3S
Batteries & Runtime
Efficiency
View Efficiency Graph
Battery typeVRLA
Battery voltage240 V
Maximum short-circuit current10 kA
Number of battery filled slots0
Number of battery free slots3
Discharge battery voltage+/- 198 V DC
Physical
ColourWhite (RAL 9003)
Height140 cm
Width38 cm
Depth90.7 cm
Net weight130 kg
USB compatibleYes
Input
Maximum input current18 A
Input harmonic distortionLess than 4 % for full load
Input Power Factor at Full Load0.99
Input voltage limits304...477 V
Network frequency45...65 Hz
Output
Maximum configurable power in VA10 kVA
Maximum configurable power in W10 kW
Output frequency50 Hz sync to mains
60 Hz sync to mains
Harmonic distortionLess than 3 %
Output harmonic distortion< 5.5% at 100% non-linear load
Output overload operation10 minutes at 125% and 60 seconds at 150%
Output voltage tolerance+/- 1.5 %
UPS typeDouble conversion online
Crest factor3 : 1
Conformance
Product certificationsCE
EAC
RCM
Environmental
Ambient air temperature for operation040 C
Relative humidity095 % non-condensing
Operating altitude0...3281 ft
Ambient air temperature for storage-2555 C
Storage Relative Humidity095 % non-condensing
Storage altitude015240 m
Acoustic level60 dBA
Heat dissipation516 W
IP degree of protectionIP20
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height164.000 cm
Package 1 Width101.400 cm
Package 1 Length56.300 cm
Package 1 Weight145.000 kg
Contractual warranty
Warranty (in months)12
