DESCRIPTION

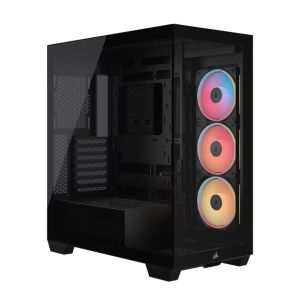

3500X LX-R RGB iCUE LINK
MID-TOWER PC CASE
Watch Video

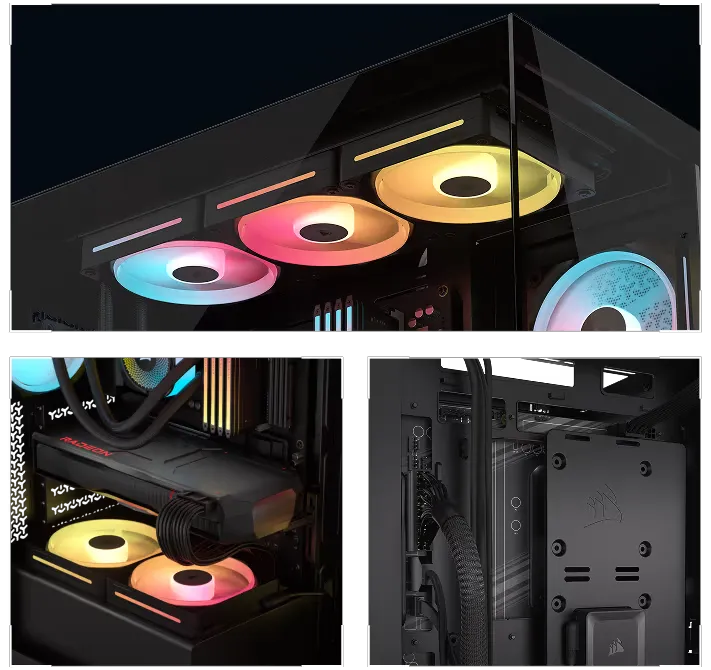

VERSATILITY BUILT-IN
BUILD WITHOUT BOUNDARIES
You dont need a large footprint to build a decked-out PC. The 3500X accommodates most large graphics cards and CPU coolers, 360mm radiators, and even E-ATX motherboards, without taking up your entire desk.
ATTENTION TO DETAILS
REVERSE MOTHERBOARD SUPPORT
Validated for use with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth motherboards featuring connections on the back of the board, so your view isnt spoiled by cables.
WHAT IS iCUE LINK?
BUILD BETTER. BUILD SMARTER.
Redefine the way you build a DIY PC with a groundbreaking single-cable technology that automatically detects and configures your PC fans, CPU coolers, and other internal components.
THE EASY WAY TO BUILD
Reduce cable clutter with a network of smart, interconnected components.
LINK YOUR COMPONENTS
The iCUE LINK ecosystem uses a single connector for all iCUE LINK devices.
UNITE YOUR SETUP
Each component connects directly to the next, creating a chain of devices.
STRENGTH IN NUMBERS
INCLUDES iCUE LINK LX120-R RGB PERFORMANCE FANS
Three LX120-R RGB reverse-rotor fans and an iCUE LINK System Hub enable you to take advantage of a revolutionary ecosystem for an easier build. These fans undergo months of rigorous testing to ensure they deliver powerful, efficient airflow that keeps your system running at its best.

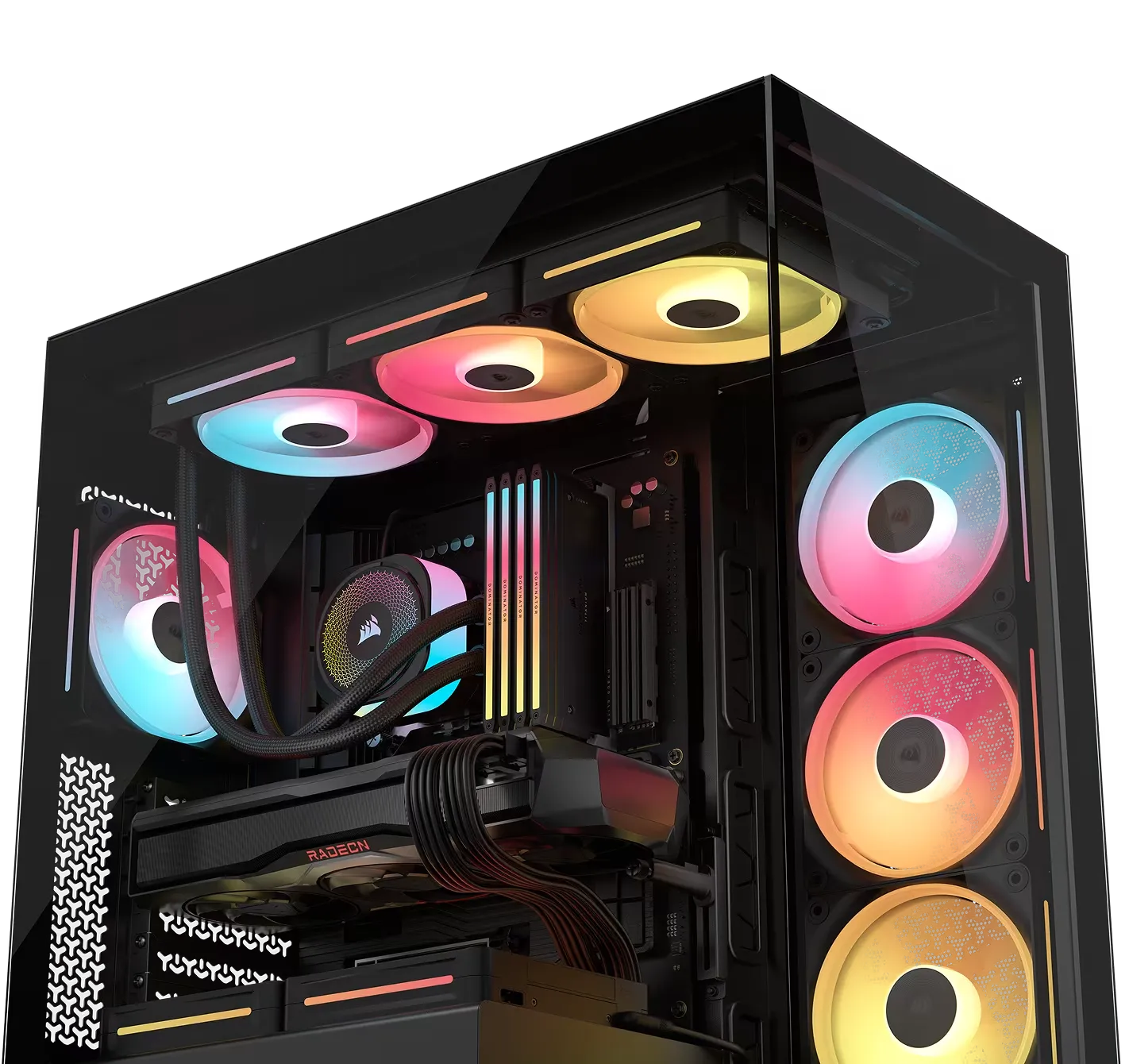

THE AIR IN THERE
COOLING PERFORMANCE
Strong cooling is paramount for a modern PC, and the 3500X excels with side, roof, and PSU fan mounts so you can cover all the angles. And with 360mm radiator mounting points in the side and roof, youll have plenty of potential for liquid cooling.
A BREEZE TO BUILD IN
With a modern design approach to a mainstream PC format, the 3500X has the convenient features to take the hassle out of your build.

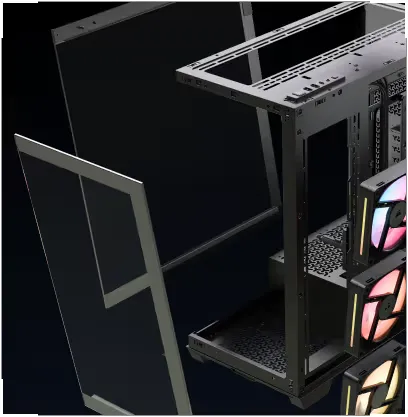

REMOVABLE GLASS PANELS
The front and side tempered glass panels that give the 3500X its signature look are easily removable for quick access.

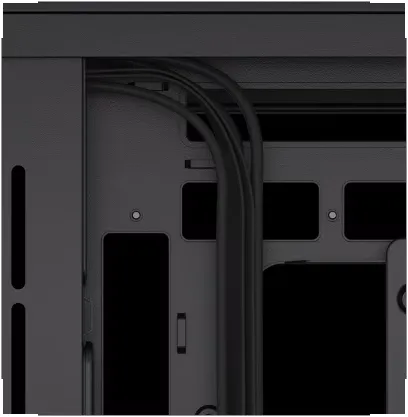

CABLE ROUTING
A spacious interior and roomy 38mm behind the motherboard makes cable routing easy and comfortable, while a set of DoubleShot grommets ensures it looks tidy.

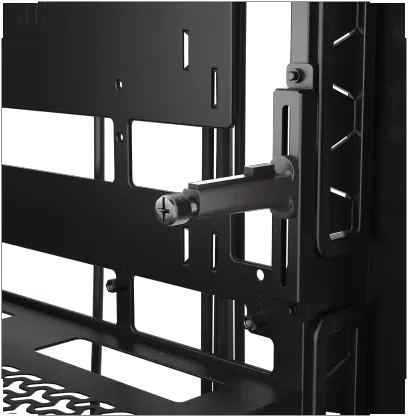

SAG-FREE GRAPHICS CARDS
Includes a GPU Anti-sag Stabilisation Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.
WIDE COOLING FLEXIBILITY
Customise your cooling setup with room for up to 10x 120mm fans, plus versatile radiator mounting options including up to 360mm in the side and roof.

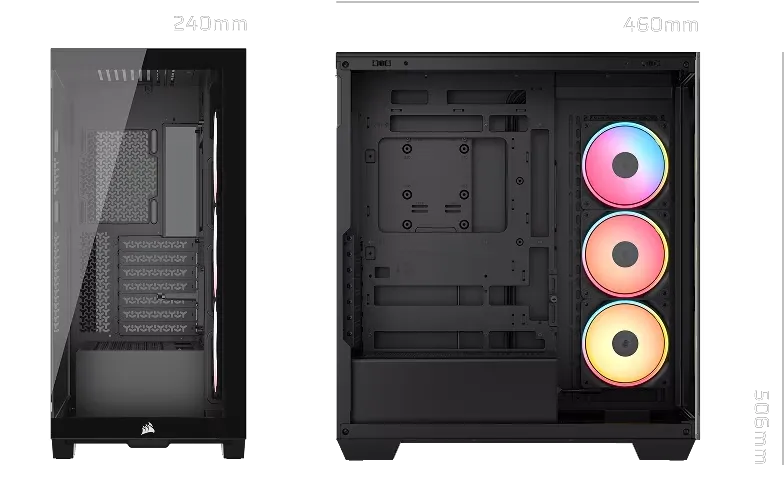

DIMENSIONS
FAN CAPACITY
RADIATOR CAPACITY
The 3500X has more than enough space to accommodate and cool your most ambitious build.

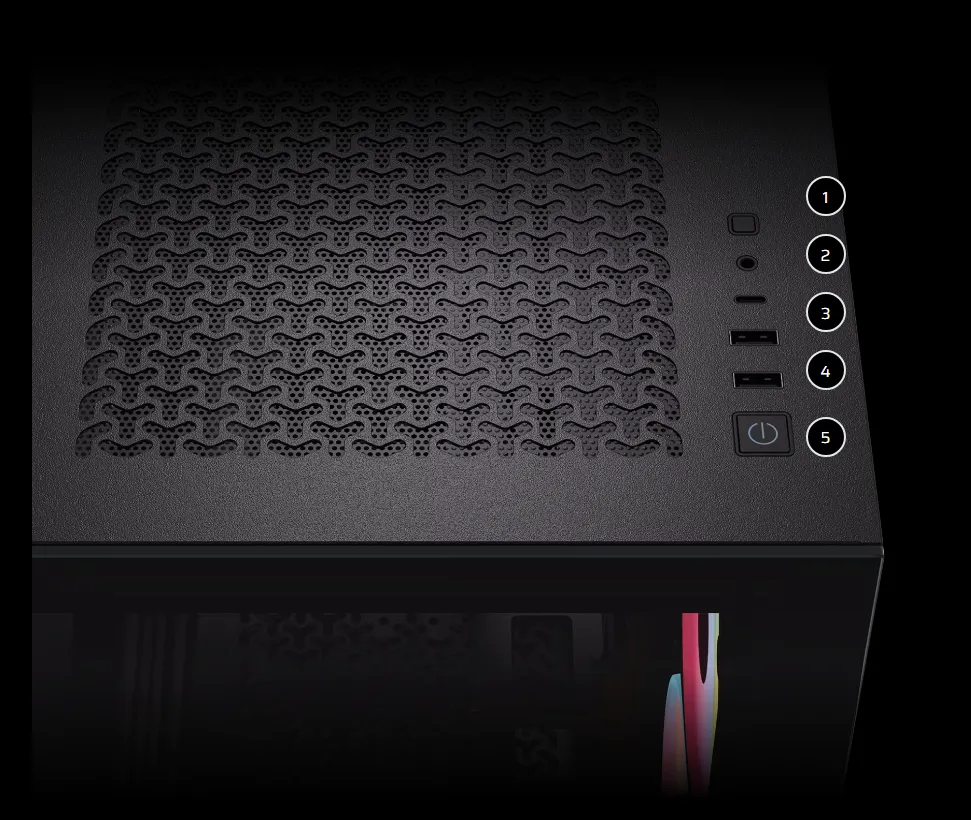

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.
2
Headphone / Mic Combo Jack
3
USB 3.2 Gen 2 Type-C Port
4
2x USB 3.2 Gen 1 Type-A Ports
TWO-YEAR WARRANTY
WORLD-CLASS SUPPORT
CORSAIR's award-winning service means you can enjoy your gear worry-free.
Specifications
Case Supported
Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Material
Steel, Tempered Glass
Radiator Compatibility
120mm, 140mm, 240mm, 280mm, 360mm
Case Window
Tempered Glass
Compatible Liquid Coolers
H60, H100, H115, H150 (All Series)
Internal 3.5" Drive Bays
2
Internal 2.5" Drive Bays
2
Maximum CPU Cooler Height
170mm
Case Front IO
(1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Case Expansion Slots
7 Horizontal (or 4 Vertical)
Radiator Support - Top
360mm, 280mm, 240mm
Radiator Support - Front
None
Radiator Support - Bottom
None
Radiator Support - Side
360mm, 280mm, 240mm
Radiator Support - Rear
1x 120mm
Fan Support - Top
3x 120mm; 2x 140mm
Fan Support - Bottom
3x 120mm; 1x 140mm
Fan Support - Side
3x 120mm; 2x 140mm
Fan Support - Rear
1x 120mm
Front IO Motherboard Connections
1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL
Reverse Connector Motherboard Support
Yes
Included Fans
iCUE LINK LX Series
RapidRoute Included
Compatible (Sold Separately)
Left Side Panel
Tempered Glass
Vertical Mount Support
Supported (Riser Card Sold Separately)
Box Contents
3500X Case
3x iCUE LINK LX120R RGB Fans
1x iCUE LINK System Hub
