DESCRIPTION

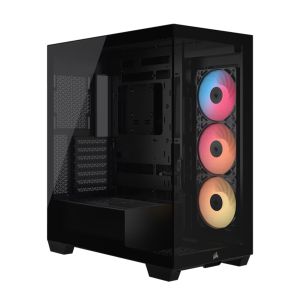

3500X RS-R ARGB
MID-TOWER PC CASE
Watch Video

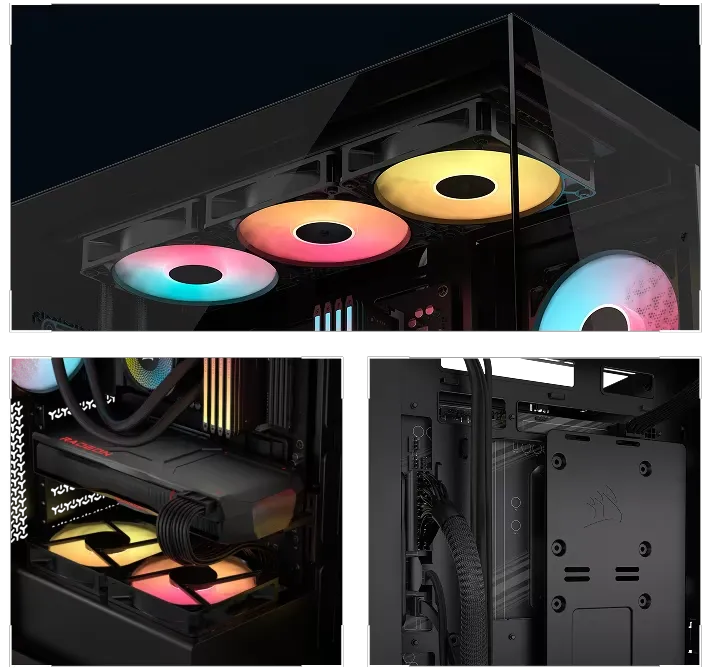

VERSATILITY BUILT-IN
BUILD WITHOUT BOUNDARIES
You dont need a large footprint to build a decked-out PC. The 3500X accommodates most large graphics cards and CPU coolers, 360mm radiators, and even E-ATX motherboards, without taking up your entire desk.
ATTENTION TO DETAILS
REVERSE MOTHERBOARD SUPPORT
Validated for use with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth motherboards featuring connections on the back of the board, so your view isnt spoiled by cables.
STRENGTH IN NUMBERS
INCLUDES RS120-R ARGB PERFORMANCE FANS
Three RS120-R ARGB fans deliver great cooling and vivid lighting, with daisy-chain connections for simple setup. Their reverse-rotor design keeps the vibrant LEDs fully visible, so lighting effects remain clear and unobstructed.
These fans incorporate CORSAIR Magnetic Dome bearings, AirGuide technology, and custom-engineered fan blades, delivering exceptional cooling performance for both radiator and case setups.

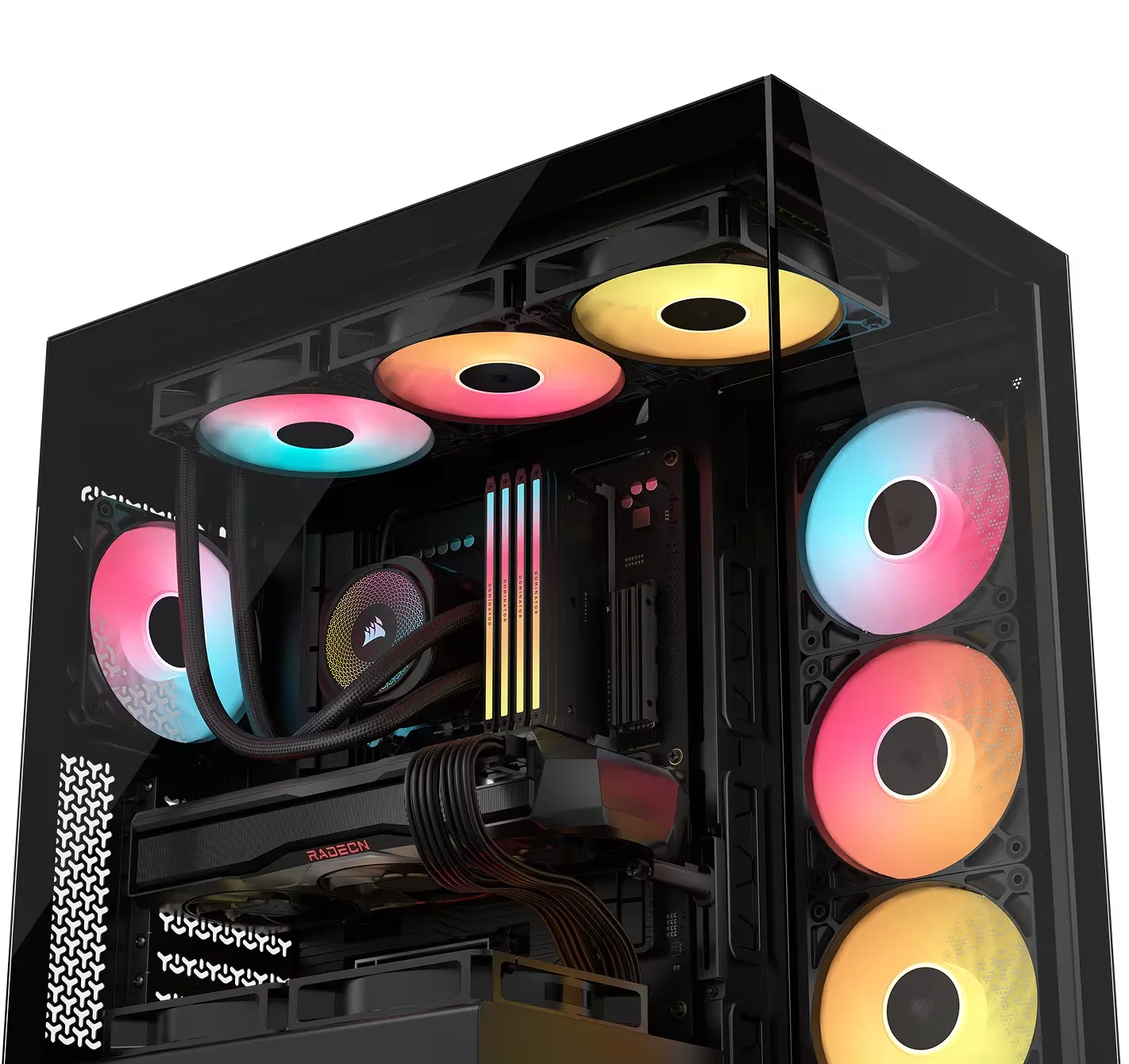

THE AIR IN THERE
COOLING PERFORMANCE
Strong cooling is paramount for a modern PC, and the 3500X excels with side, roof, and PSU fan mounts so you can cover all the angles. And with 360mm radiator mounting points in the side and roof, youll have plenty of potential for liquid cooling.
A BREEZE TO BUILD IN
With a modern design approach to a mainstream PC format, the 3500X has the convenient features to take the hassle out of your build.

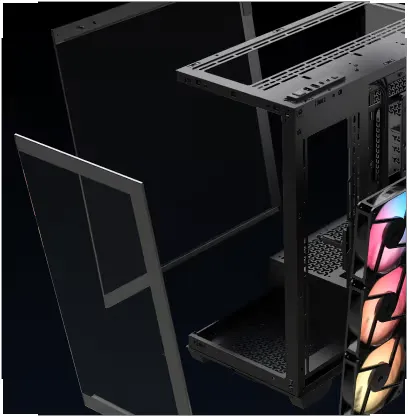

REMOVABLE GLASS PANELS
The front and side tempered glass panels that give the 3500X its signature look are easily removable for quick access.

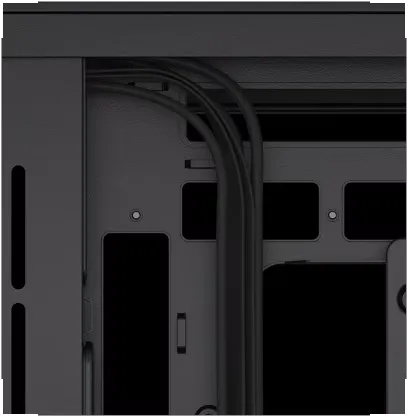

CABLE ROUTING
A spacious interior and roomy 38mm behind the motherboard makes cable routing easy and comfortable, while a set of DoubleShot grommets ensures it looks tidy.

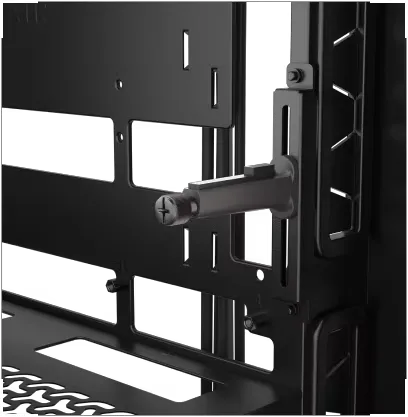

SAG-FREE GRAPHICS CARDS
Includes a GPU Anti-sag Stabilisation Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.
WIDE COOLING FLEXIBILITY
Customise your cooling setup with room for up to 10x 120mm fans, plus versatile radiator mounting options including up to 360mm in the side and roof.
DIMENSIONS
FAN CAPACITY
RADIATOR CAPACITY
The 3500X has more than enough space to accommodate and cool your most ambitious build.

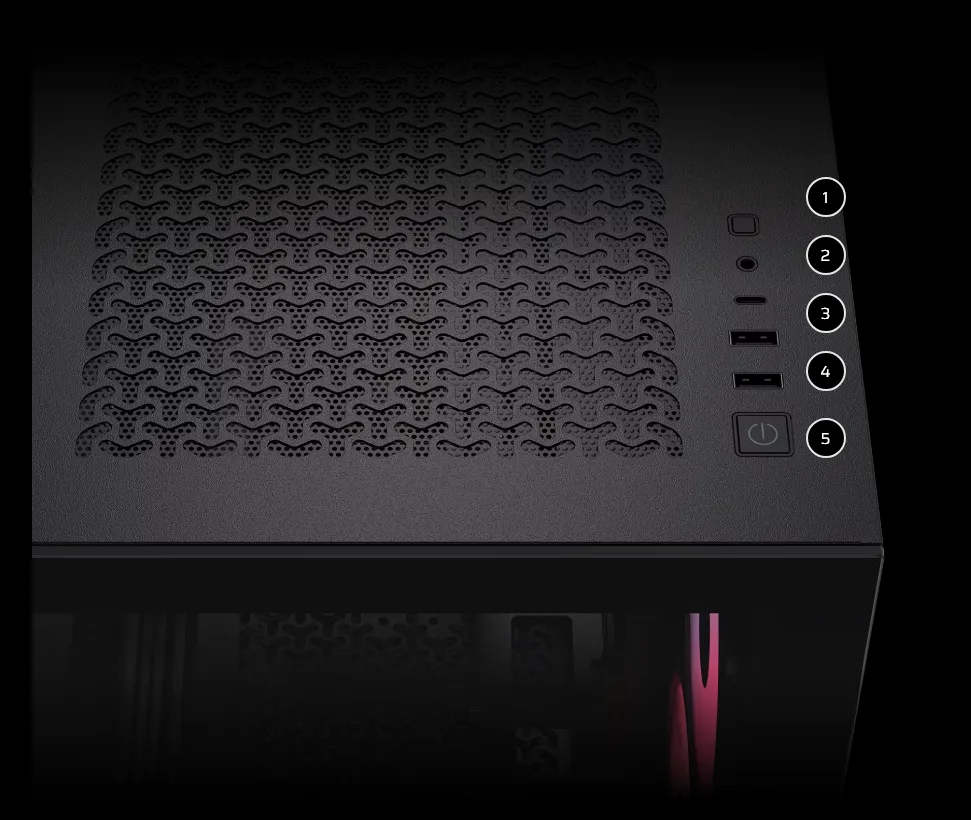

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.
2
Headphone / Mic Combo Jack
3
USB 3.2 Gen 2 Type-C Port
4
2x USB 3.2 Gen 1 Type-A Ports
TWO-YEAR WARRANTY
WORLD-CLASS SUPPORT
CORSAIR's award-winning service means you can enjoy your gear worry-free.
Specifications
Case Supported
Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Material
Steel, Tempered Glass
Radiator Compatibility
120mm, 140mm, 240mm, 280mm, 360mm
Case Window
Tempered Glass
Compatible Liquid Coolers
H60, H100, H115, H150 (All Series)
Internal 3.5" Drive Bays
2
Internal 2.5" Drive Bays
2
Maximum CPU Cooler Height
170mm
Case Front IO
(1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Case Expansion Slots
7 Horizontal (or 4 Vertical)
Radiator Support - Top
360mm, 280mm, 240mm
Radiator Support - Front
None
Radiator Support - Bottom
None
Radiator Support - Side
360mm, 280mm, 240mm
Radiator Support - Rear
1x 120mm
Fan Support - Top
3x 120mm; 2x 140mm
Fan Support - Bottom
3x 120mm; 1x 140mm
Fan Support - Side
3x 120mm; 2x 140mm
Fan Support - Rear
1x 120mm
Front IO Motherboard Connections
1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL
Reverse Connector Motherboard Support
Yes
Included Fans
RS ARGB Series
RapidRoute Included
Compatible (Sold Separately)
Left Side Panel
Tempered Glass
Vertical Mount Support
Supported (Riser Card Sold Separately)
Box Contents
3500X Case
