All stock codes associated to this product
CC-9011314-WW, CC9011314WW, CAC4500XRSARGBBK, CAC-4500XRSARGB-BK
DESCRIPTION

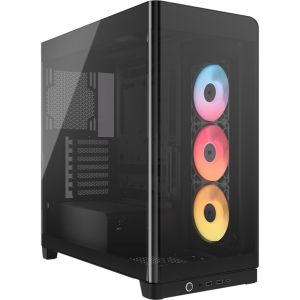

FRAME 4500X RS-R ARGB
PANORAMIC GLASS MID-TOWER PC CASE
Watch Video
CURVES AHEAD
PANORAMIC GLASS SIDE PANEL
A single-piece of curved tempered glass lets you show off your build uninhibited, without any seams or sharp angles blocking the view. The curved glass wraps around the front and side, providing an unobstructed view of your high-powered hardware.
The tempered glass side panel is laminated with a practically invisible film coating for safety and noise reduction.
GO BIG, OR GO BIGGER

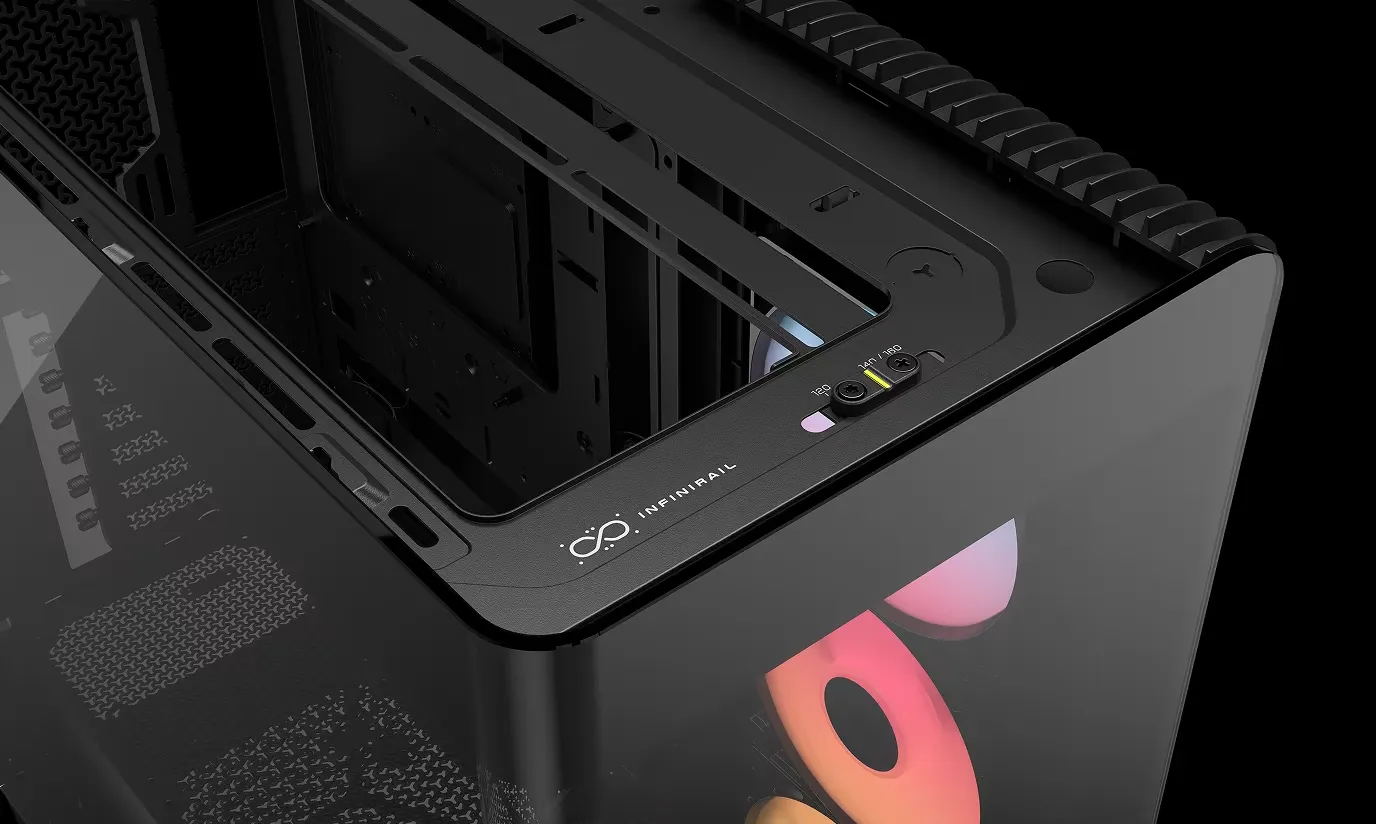

CORSAIR INFINIRAIL FAN MOUNTING SYSTEM
This steel multi-point fan mounting system provides unmatched flexibility for the roof fan configuration. Easily slide the rail to mount either 120mm or 140mm fans exactly where you need it, ensuring targeted airflow without the limitation of fixed mounting points.
A FAN FAVORITE
RS-R REVERSE-ROTOR INTAKE FANS INCLUDED
Reverse-rotor ARGB PWM RS-R intake fans are included for unobstructed RGB lighting and low-noise cooling. Fresh air is pulled through the ventilated side and into the spacious mid-tower chassis for effective cooling and plenty of airflow to ensure maximum performance.
CASCADING COOL
VENTILATED SIDE AND TOP PANELS
Airflow optimised panels adorn the top and side of the FRAME 4500X to provide maximum breathability for fans mounted in both locations.
The side-mounted reverse-rotor intake fans pull cool air in from outside the chassis, while top-mounted fans (sold separately) exhaust hot air out of the case to keep the interior frosty.
HIDDEN FROM VIEW
LOOK, NO CABLES
Fully compatible with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth, this design features ample connector and cable cutouts, along with tie-downs to keep your build neat and organised, even where you cant see them.
EASY TO LIVE WITH
DIY DONE RIGHT
The FRAME 4500X incorporates useful features to make building a PC easier.

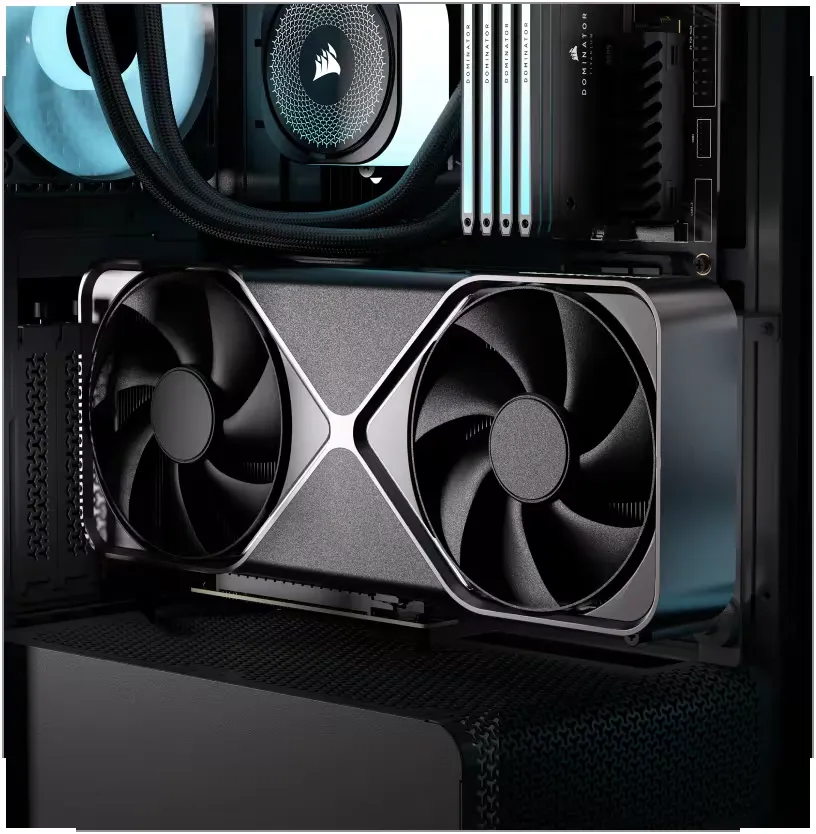

VERTICAL GPU READY
Put your GPU front and center in your new build with easy vertical mounting, no tools or bracket required (Riser Cable sold separately).

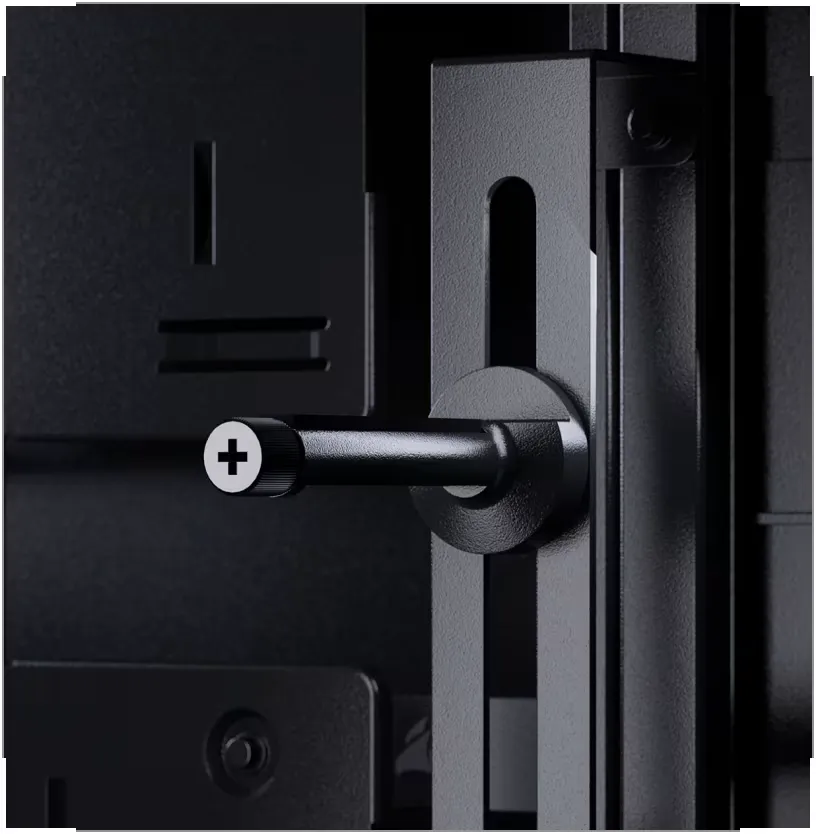

SAG-FREE GRAPHICS CARDS
A GPU Anti-sag Stabilisation Arm keeps your GPU steady, so you never have to worry about damaging your PCIe slot.
REUSABLE SCREW BOX
Never lose an important screw again thanks to the included reusable screw box holding everything you need securely locked away.
WIDE COOLING FLEXIBILITY
Customise your cooling setup with room for up to 10x 120mm fans, plus versatile radiator mounting options including up to 2x 360mm radiators at the same time.

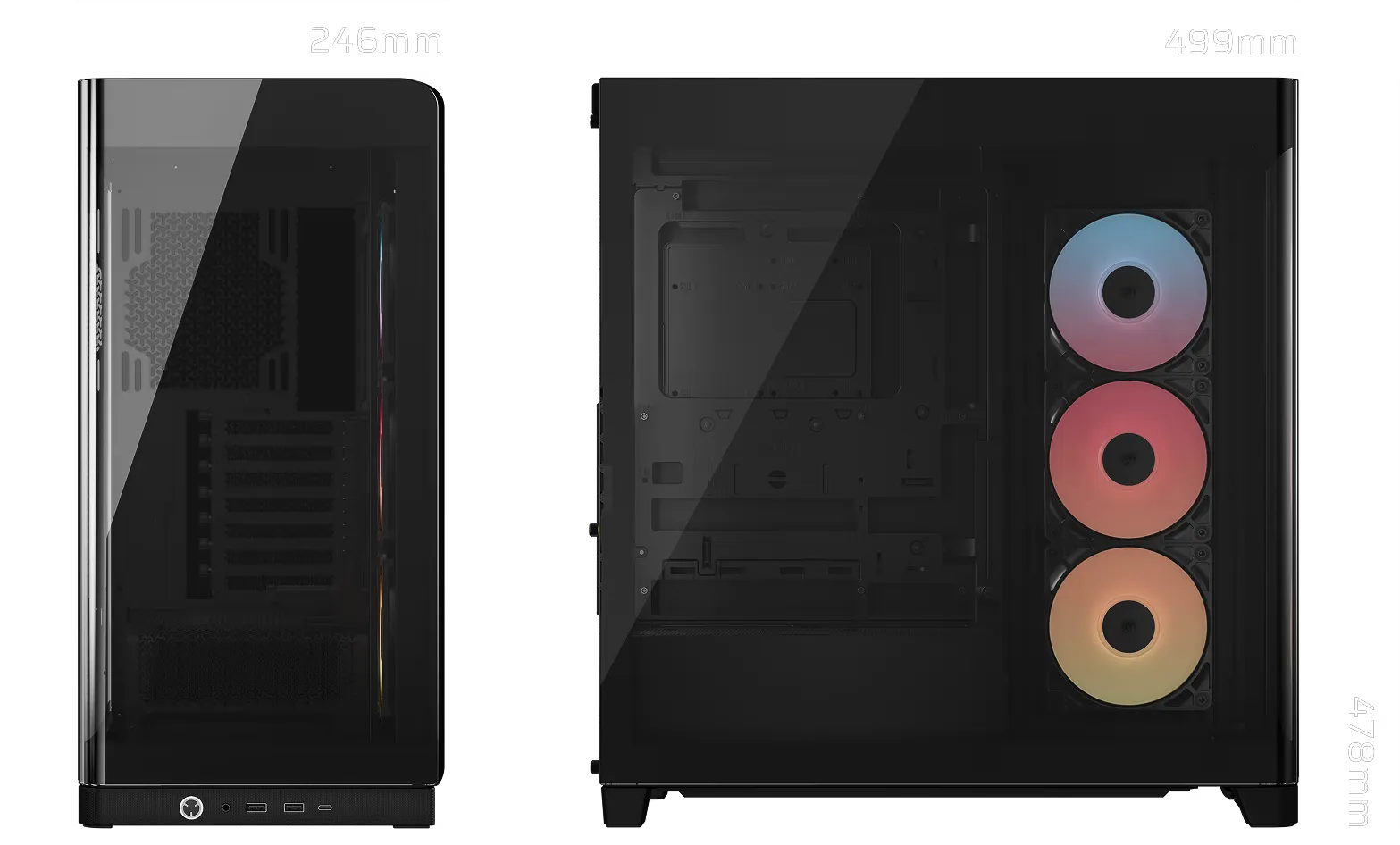

DIMENSIONS
FAN CAPACITY
RADIATOR CAPACITY
The FRAME 4500X has more than enough space to accommodate and cool your most ambitious build.

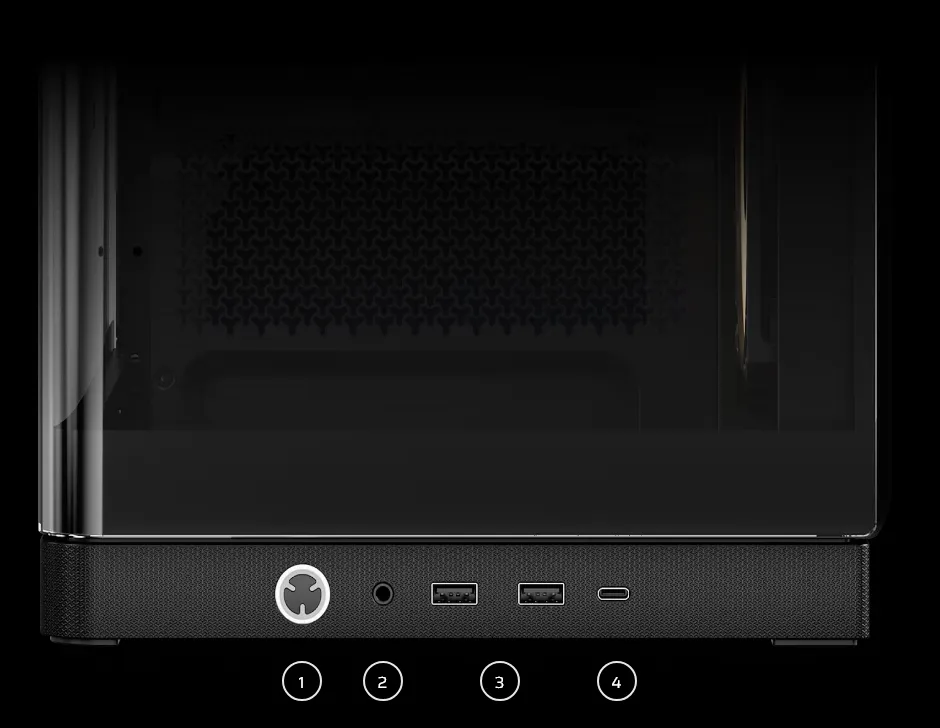

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.
2
Headphone / Mic Combo Jack
3
2x USB 3.2 Gen 1 Type-A Ports
4
USB 3.2 Gen 2 Type-C Port
*Configuration shown for illustrative purposes only and functionality may not be representative of real-world use capabilities.
TWO-YEAR WARRANTY
WORLD-CLASS SUPPORT
CORSAIR's award-winning service means you can enjoy your gear worry-free.
Specifications
Case Supported
Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Dimensions (mm)
499 x 246 x 478 mm
Material
Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
Motherboard Support
Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Radiator Compatibility
120mm, 140mm, 240mm, 280mm, 360mm
Case Window
Tempered Glass
Compatible Liquid Coolers
H60, H100, H115, H150, NAUTILUS, TITAN
Internal 3.5" Drive Bays
1
Internal 2.5" Drive Bays
2
Maximum CPU Cooler Height
185mm
Case Front IO
(1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Case Expansion Slots
7 Horizontal or 3 Vertical
Radiator Support - Top
360mm, 280mm, 240mm
Radiator Support - Front
None
Radiator Support - Bottom
None
Radiator Support - Side
360mm, 280mm, 240mm
Radiator Support - Rear
140mm, 120mm
Fan Support - Top
3x 120mm, 2x 140mm
Fan Support - Bottom
3x 120mm, 1x 140mm
Fan Support - Side
3x 120mm, 2x 140mm
Fan Support - Rear
1x 120mm, 1x 140mm
Front IO Motherboard Connections
1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL
Reverse Connector Motherboard Support
Yes
Included Fans
RS ARGB Series
Left Side Panel
Tempered Glass
Vertical Mount Support
Supported (Riser Card Sold Separately)
Box Contents
FRAME 4500X Case
3x RS120R ARGB Fans
Case Accessory Box
