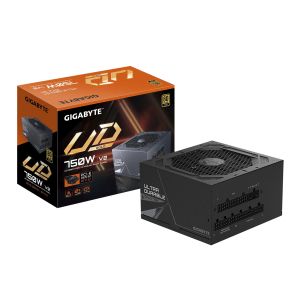

Gigabyte UD750GM PG5 V2, 750W ATX PSU Power Supply 80+ Gold >90% Black Embossed Cables 100-240 Vac >100K Hrs

IMG 1 of 4
Our Price:
$169.50
or quickly purchase this product
Backorder
Part Number:
559739
(?) Brand:
Gigabyte Web Site
Manuf No:
UD750GM PG5 V2
Shipping Weight:
2.64 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
UD750GM PG5 V2, PSGUD750GMPG5V2, PSG-UD750GMPG5V2
Gigabyte UD750GM PG5 V2, 750W ATX PSU Power Supply 80+ Gold >90% Black Embossed Cables 100-240 Vac >100K Hrs (NEW)

SPECIFICATIONS

Model
GP-UD750GM PG5 V2

Type
Intel Form Factor ATX 12V v3.1

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)

Input Current
15-6.5A

Input Frequency
60-50 Hz

Output Capacity
750W

Dimension
150 x 140 x 86mm

Fan Type
120mm Hydraulic Bearing(HYB)fan

80 PLUS
Gold

Efficiency
90% at typical load

MTBF
>100,000 hours

Protection
OVP/OPP/SCP/UVP/OCP/OTP


Power Good Signal
100-150ms

Hold Up Time
>16ms

Cable Type
Embossed, All black

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
PCI-e 12+4 Pin x 1:700mm*1
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Gigabyte) web site.
