Corsair FRAME 5000D WORKSTATION Mid-Tower Case - Black, supports E-ATX, tempered glass, high airflow design, 420mm radiator, 450mm GPU support

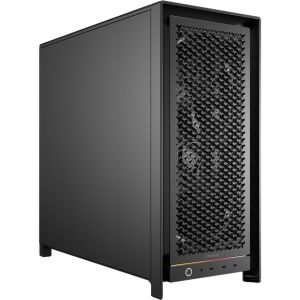

IMG 1 of 4
Our Price:
$305.25
RRP:
$317.90
You Save:
$12.65
or quickly purchase this product
Backorder
Part Number:
559979
(?) Brand:
Corsair Web Site
Manuf No:
CC-9011330-WW
CC9011330WW
Shipping Weight:
16 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
CC-9011330-WW, CC9011330WW, CACFRAME500WXRSBK, CAC-FRAME500WXRS-BK


FRAME 5000D WORKSTATION

MID-TOWER PC CASE

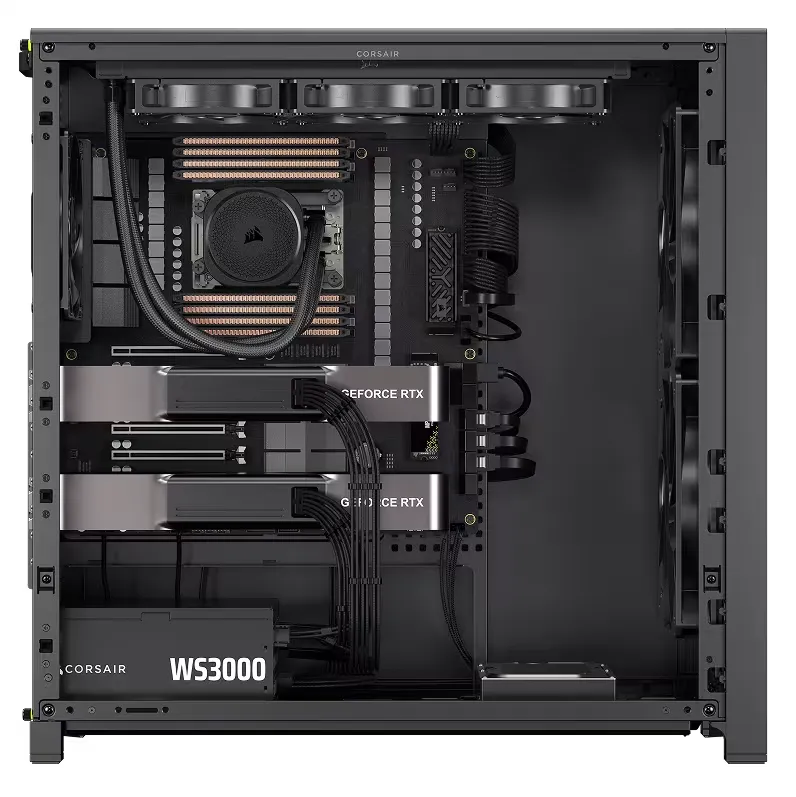

SUPERSIZED
SUPERSIZED

FILL IT UP WITH THE LATEST HARDWARE

The spacious interior is fully compatible with SSI-EEB/CEB motherboards for servers as well as more traditional ATX, E-ATX, and motherboards with reverse connectors.

GPU OPTIMISED

BUILT FOR DEMANDING WORKLOADS

The interior of the FRAME 5000D WORKSTATION is made for multi-GPU builds with ample vertical clearance for up to four dual-slot GPUs for advanced rendering, CAD, and AI workloads.

PLENTIFUL STORAGE
PEACEFULLY POWERFUL

BUILT TO ELIMINATE NOISE

The steel side panels feature embedded sound dampening materials for quiet operation, while the massive 200mm intake fans in the ventilated front panel and rear 140mm exhaust fan provide continuous airflow with very little noise.

EXPANSION IS ENCOURAGED

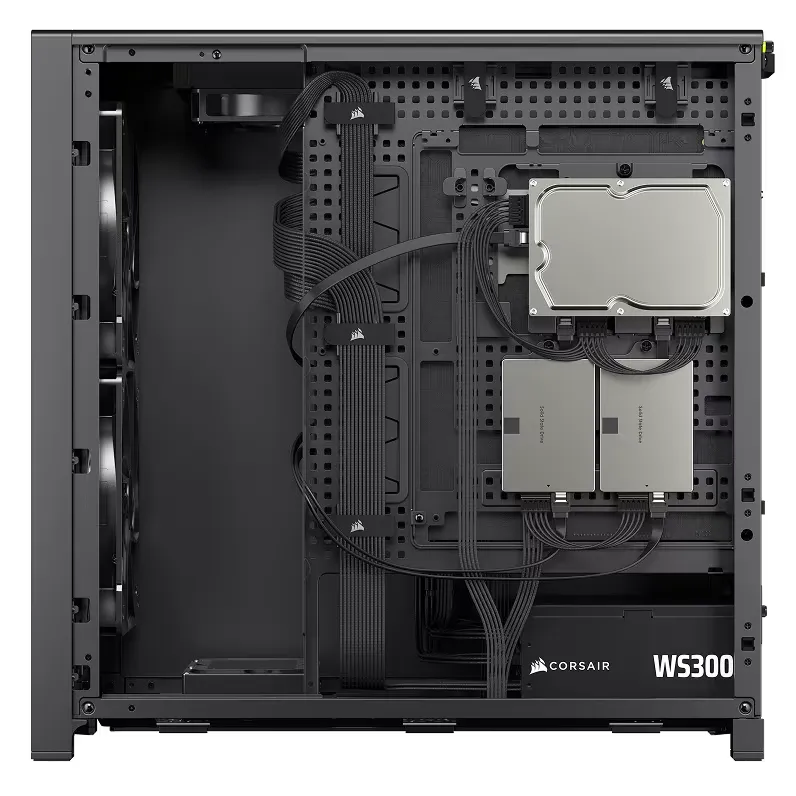

PLENTIFUL STORAGE

Abundant storage options include dual HDD/SDD combo trays and two dedicated 2.5" SSD trays for a total of 2x 3.5" HDDs and up to 6x 2.5" SSDs for those who need more than just M.2 drives.

PLENTIFUL STORAGE

WIDE COOLING FLEXIBILITY

Customise your cooling setup with room for up to 9x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators in the roof and front.

DIMENSIONS
FAN CAPACITY
RADIATOR CAPACITY

The FRAME 5000D WORKSTATION has a cavernous interior designed for high-powered builds and abundant cooling.

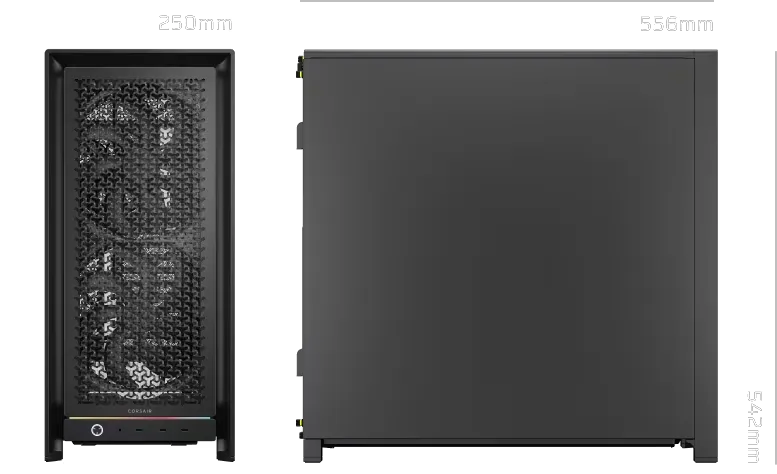

Dimensions

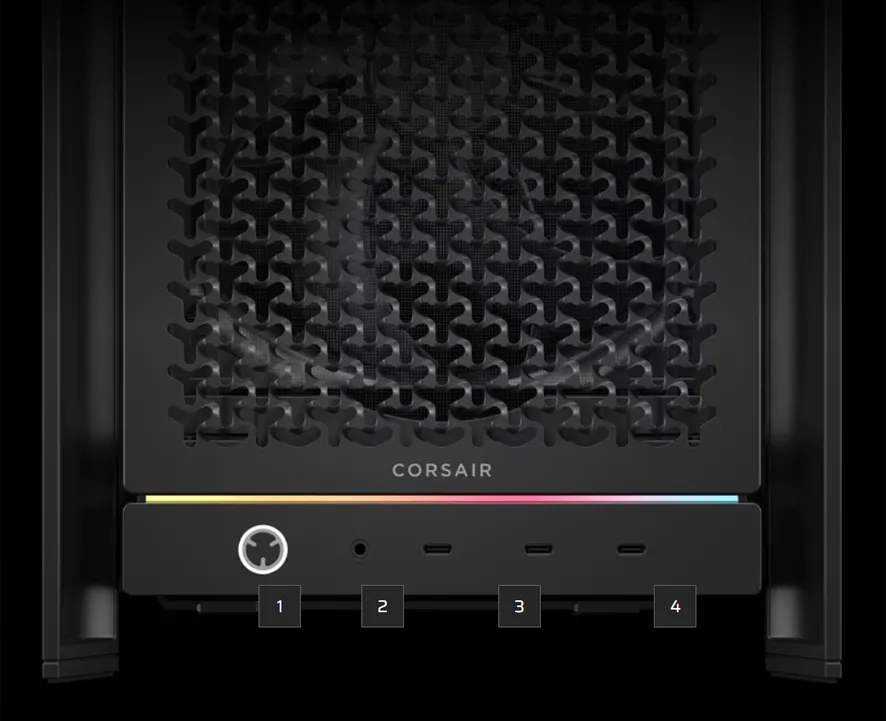

Front Panel I/O

MODERN FRONT PANEL I/O

Puts your connections within easy reach, including 2x USB 3.2 Gen 1 Type-C ports, 1x USB 3.2 Gen 2x2 Type-C port, and a combination audio/microphone jack.

1
Power Button
2
Headphone / Mic Combo Jack
3
2x USB 3.2 Gen 1 Type-C Ports
4
USB 3.2 Gen 2x2 Type-C Port
Warranty
TWO-YEAR WARRANTY

WORLD-CLASS SUPPORT

CORSAIR's award-winning service means you can enjoy your gear worry-free.

TAILOR MADE

MODULAR AND CUSTOMISABLE

The FRAME 5000D WORKSTATION is a flexible and powerful platform that can be customised to fit your exact needs. CORSAIR offers UV printing options for personalised branding, as well as bespoke chassis configurations for a wide variety of build diversity thanks to the FRAME Modular Case System.

Specifications
Case Supported

Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm), SSI-CEB, SSI-EEB

Case Height

542mm

Case Length

556mm

Case Width

250mm

Material

Steel, 3D-Y Airflow Steel, Plastic

Colour

Black

Case Size

Mid-Tower

Maximum CPU Cooler Height

175mm

Case Front IO

(1x) USB 3.2 Gen2 Type-C, (2x) USB 3.2 Gen1 Type-C, (1x) Headphone/Microphone, (1x) Power

Maximum GPU Length

450mm

Weight

15.48kg

Case Expansion Slots

9 Horizontal

Case Power Supply

ATX

Radiator Support - Top

420mm, 360mm, 280mm, 240mm

Radiator Support - Front

360mm, 280mm, 240mm

Radiator Support - Bottom

None

Radiator Support - Side

None

Radiator Support - Rear

140mm, 120mm

Fan Support - Top

3x 120mm, 3x 140mm

Fan Support - Front

3x 120mm, 3x 140mm, 2x 200mm (2x RS200 Fans Included)

Fan Support - Bottom

2x 120mm

Fan Support - Side

None

Fan Support - Rear

1x 120mm, 1x 140mm (1x RS140 Fan Included)

Front IO Motherboard Connections

1x HD Audio, 1x USB 3.2 Gen1, 1x USB-3.2 Gen2 Type-E, 1x F_PANEL, 1x 5V ARGB

Reverse Connector Motherboard Support

Yes

Included Fans

RS Series

Dust Filtration

Yes

Cable Routing Space

42mm

RapidRoute Included

Yes

Vertical Mount Support

Supported (Riser Card Sold Separately)

Box Contents

FRAME 5000D Workstation Case
Case Accessory Box
