Corsair HX1000i SHIFT Fully Modular Platinum ATX Power Supply, ATX 3.1, 8x PATA, 2x EPS, 8x SATA, 4x PCIe, DSP, fully modular, 140mm FDB fan, 10yr WTY

IMG 1 of 5
Our Price:
$473.10
or quickly purchase this product
Backorder
Part Number:
560012
(?) Brand:
Corsair Web Site
Manuf No:
CP-9020265-AU
CP9020265AU
Shipping Weight:
3.76 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
CP-9020265-AU, CP9020265AU, PSCPHX1000ISF, PSCP-HX1000I-SF

HX1000i SHIFT Fully Modular Platinum ATX Power Supply

  • Integrated iCUE LINK System Hub
  • Side-mounted SHIFT connectors
  • Cybenetics Platinum efficiency
  • Native 12V-2x6 cable for high-end GPUs
  • 105C-rated 100% Japanese electrolytic capacitors
  • 10-year warranty


HX1000iSHIFT POWER TABLE

MODEL
RPS0195
PART NO.
75-005795
AC INPUT RATING
AC INPUT
100240V
100V240V

(Only for Korea and India)
INPUT CURRENT
13A6.5A
10A
FREQUENCY
47Hz63Hz
Max LOAD
Max OUTPUT
+3.3V
25A
150W
+5V
20A
+12V
83.3A
1000w
+5VSB
3A
15W
TOTAL POWER
1000W

HX1000iSHIFT POWER TABLE

QTY
CABLE
CONNECTORS PER CABLE
TOTAL CONNECTORS
CONNECTOR SPACING
TOTAL LENGTH
CABLE TYPE
1

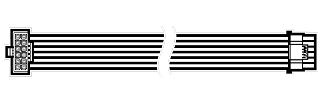

ATX Motherboard (24-pin) - Modular
1
1
610mm
610mm
( 10mm)
Debossed
2

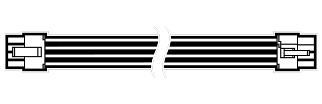

ATX12V / EPS12V (4+4-pin) - Modular
1
2
650mm
650mm
( 10mm)
Debossed
2

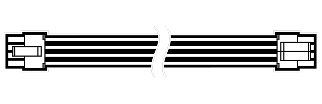

8-pin PCIe (6+2-pin) - Modular
1
2
650mm
650mm
( 10mm)
Debossed
1

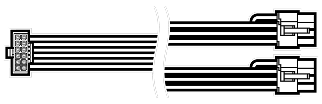

90 12V-2x6 to 2x 8-pin PCIe (6+2-pin) - Modular
2
2
650mm
650mm
( 10mm)
Debossed
1
90 12V-2x6 to 600W 12V-2x6 (12+4-pin) - Modular
1
1
650mm
650mm
( 10mm)
Debossed
2

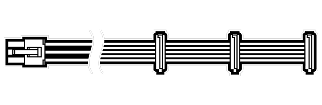

4 SATA - Modular
4
8
445mm,
155mm,
155mm,
155mm
800mm
( 10mm)
Debossed
2
4 PATA - Modular
4
8
450mm, 100mm, 100mm, 100mm
750mm
( 10mm)
Debossed
1

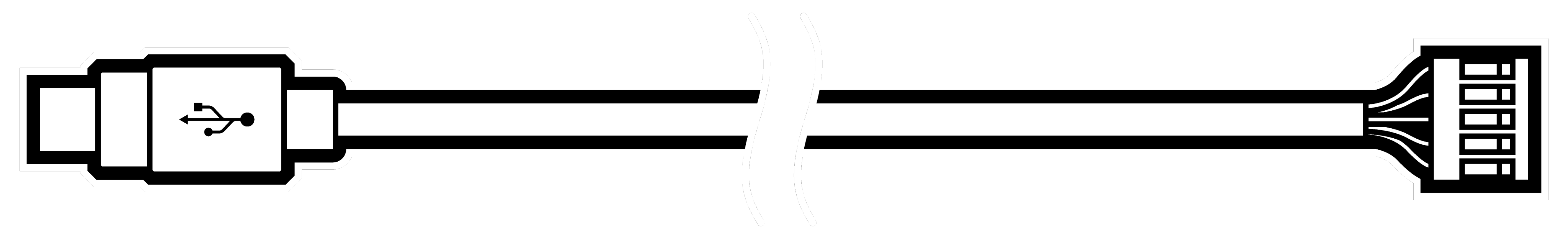

USB (Type-C to USB 10-pin Header) - Modular
1
1
525mm,
525mm
( 25mm)
Round
1

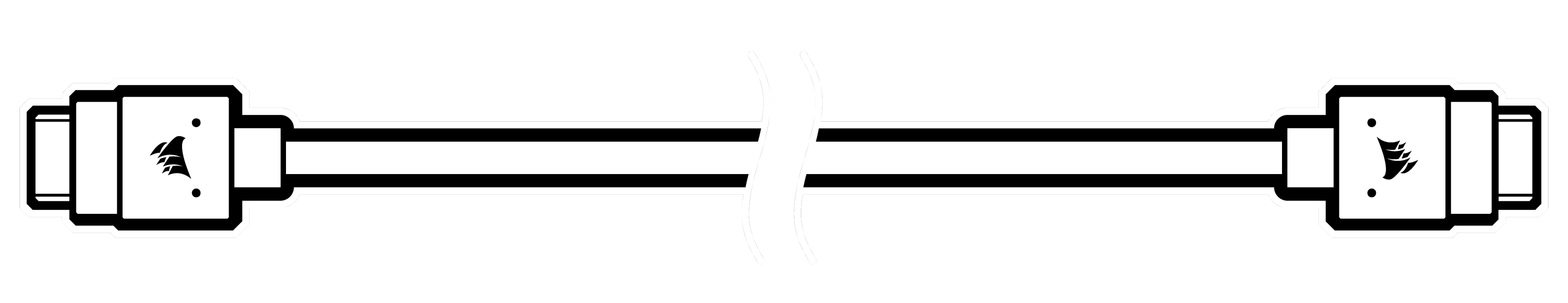

iCUE LINK to 90 iCUE LINK - Modular
1
1
200mm
200mm
( 25mm)
Round
1
iCUE LINK to iCUE LINK - Modular
1
1
600mm
600mm
( 25mm)
Round

Tech Specs

Cybenetics EfficiencyPlatinum
Cybenetics NoiseA+
Special TechnologyDSP
PATA Connector8
EPS Connector2
SATA Connector8
Fan Bearing TechnologyFluid Dynamic Bearing
Modern StandbyYes
Dimensions180mm x 150mm x 86mm
ModularFully
Cable TypeType 5
PCIe Connector4
Zero RPM ModeYes
PSU Form FactorATX
Fan Size MM140
Continuous Power W1000 Watts
ATX Connector1
ATX12V Version3.1
MTBF Hours100,000 hours
Warranty10 Year
Weight3.557kg
