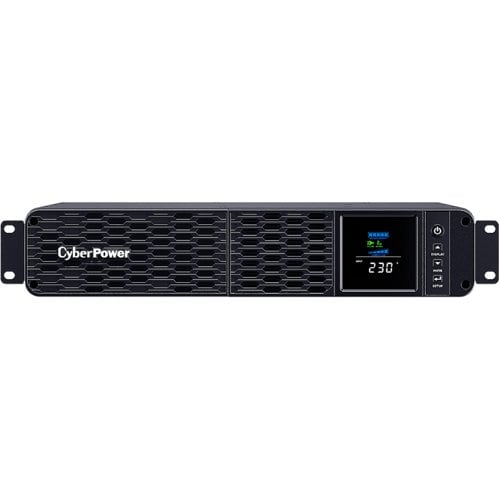

CyberPower PFC Sinewave CP1600EIPFCRM2U Line-interactive UPS - 1.60 kVA/1 kW - Rack-mountable - AVR - 8 Hour Recharge - 2.50 Minute Stand-by - 230 V AC Input - 230 V AC Output - 8 x IEC 60320 C13 Receptacle(s) -

IMG 1 of 3
Our Price:
$837.00
or quickly purchase this product
Backorder
Part Number:
560916
(?) Brand:
CyberPower Web Site
Manuf No:
CP1600EIPFCRM2U
Shipping Weight:
12.56 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
CP1600EIPFCRM2U, 6649512, 4711027797717

The short-depth rackmount UPS for equipment requiring active PFC power source

Designed for office and server room applications, the PFC Sinewave (E) Series is a reliable UPS adopting line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilized AC power output. The products are compatible with electronic devices requiring active PFC power supply and equipped with hot-swappable battery packs for maintenance without power interruption. The data line protection with high-speed transmission design safeguards networking devices against surges and spikes as well as supporting data transmission speed up to 1Gbps. Besides, the rackmount UPSs are perfectly suitable to be installed in places where space is at a premium because of the short-depth chassis design. In addition, the UPSs feature a color LCD panel for easy viewing of power information and also provide compatibility with power management software to achieve real-time monitoring.

SERIES FEATURES

  • Line-interactive UPS Topology
  • Energy Saving Technology
  • Pure Sine Wave Output
  • Automatic Voltage Regulation (AVR)
  • Overload Protection
  • Critical/Non-critical Load Outlets
  • Hot-swappable Batteries
  • Color LCD Panel
  • LED Status Indicator
  • USB Connectivity Port
  • High-speed Ethernet Data Transmission
  • PowerPanel Management Software
  • SNMP/HTTP Remote Management Capability (Optional)
  • Surge and Spike Protection
  • EMI and RFI Filtration
  • Short-depth Chassis Design
  • Works adequately in situations where the supply is prone to sags and surges
  • Up to 2.50 minute runtime on full load to preserve critical data from power shortage interruptions
  • 1 kW load capacity - backup power for your valuable electronics
  • 1.60 kVA load capacity provides sufficient backup during power failures



Display & Graphics
DisplayLCD
Management
Network ManagementRS-232
SNMP/HTTP Remote Monitoring
Environmental Conditions
Thermal Dissipation20.50 BTU/h
Minimum Operating Temperature0C
Maximum Operating Temperature40C
Interfaces/Ports
USBYes
Network (RJ-45)Yes
Serial PortYes
USB (HID Compliant) PortYes
Battery Information
Battery ChemistryLead Acid
Hot SwappableYes
Backup/Run Time (Half Load)10.40 Minute
Backup/Run Time (Full Load)2.50 Minute
Battery CharacteristicsSealed
Replaceable BatteryYes
Typical Battery Recharge Time8 Hour
Physical Characteristics
Weight (Approximate)12.56 kg
Form FactorRack-mountable
Height86 mm
Width433 mm
Depth274 mm
Product ColorBlack
Color FamilyBlack
General Information
Product TypeLine-interactive UPS
Manufacturer Part NumberCP1600EIPFCRM2U
Manufacturer Website Addresshttps://www.cyberpower.com/au
ManufacturerCyberPower Systems, Inc
Product ModelCP1600EIPFCRM2U
Product NamePFC Sinewave E CP1600EIPFCRM2U 1600VA Rack-mountable UPS
Product LinePFC Sinewave
Product SeriesE
Brand NameCyberPower
Power Description
Circuit BreakerYes
Input Voltage230 V AC
Output Voltage230 V AC
Input Current10 A
Waveform TypePure Sine Wave
Input Voltage Range169 V AC - 271 V AC
Output Frequency60 Hz
50 Hz
Input Frequency50 Hz
60 Hz
Load Capacity (VA)1.60 kVA
Load Capacity (Watt)1 kW
Output Power Factor0.625
Technical Information
Application/UsageOffice
Equipment
Electronic Device
Server Room
Overload ProtectionYes
Surge SuppressionYes
Receptacle TypeIEC 60320 C13
EMI/RFI Noise FilterYes
AVRYes
Energy SavingGreenPower UPS Bypass Technology
Number of Battery & Surge Outlets8
Number of Critical Load Outlets4
Receptacle Detail8 x IEC 60320 C13

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CyberPower) web site.
