UniFi UPS Tower
UniFi managed 1kVA uninterruptible power supply with 5 backup outlets 5 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices.
Note. For Graceful Shutdown functionality, UniFi OS version 4.4.3 or higher is required.
Introducing Uninterruptible Power
Ubiquiti are proud to share the first step in a new hardware direction with the UniFi Uninterruptible Power Strategy. Designed to safeguard critical infrastructure, these first devices balance performance, third-party integration, and affordability while laying the groundwork for enterprise-grade model expansion.
* US version shown in video.

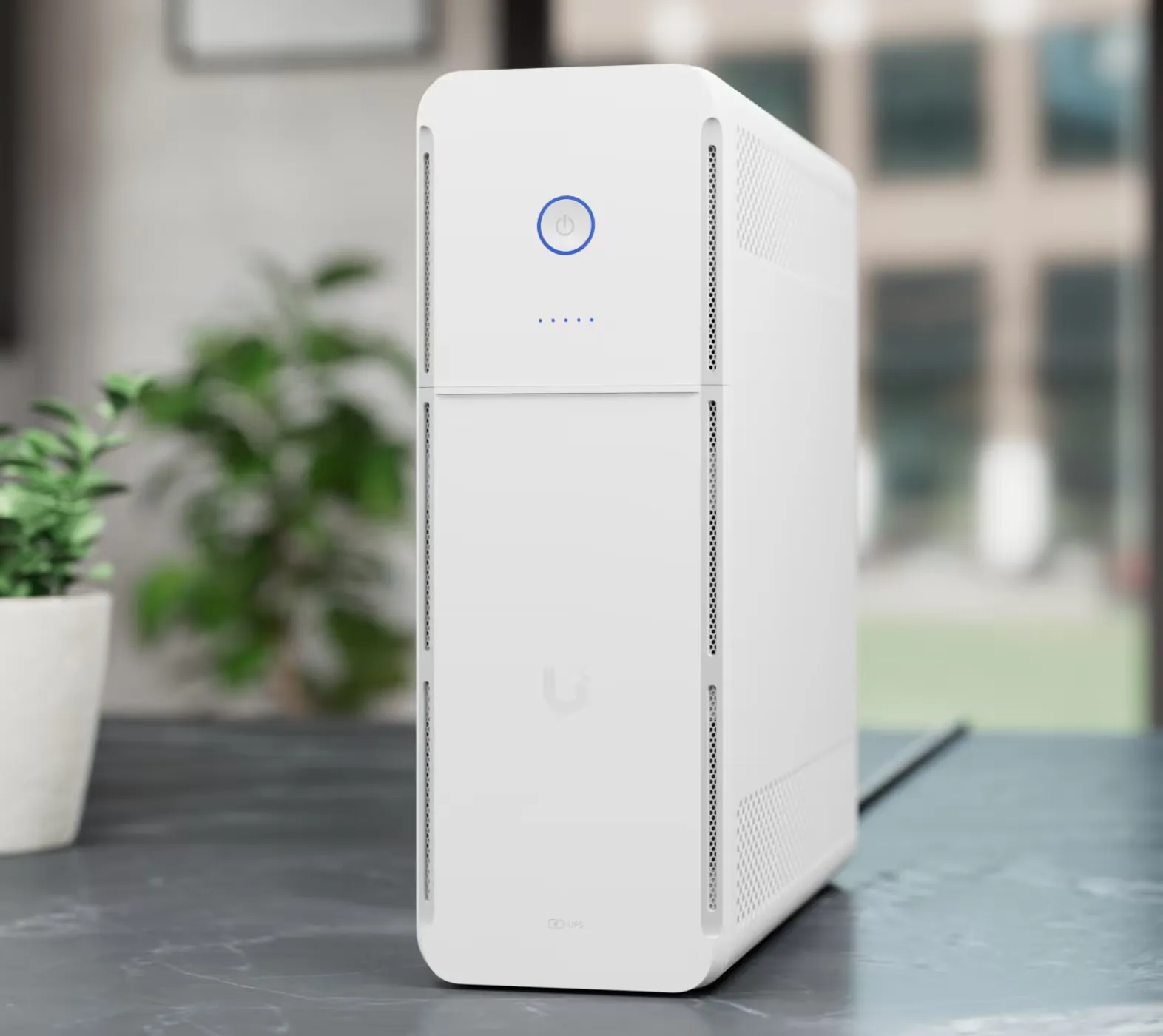

UniFi UPS Tower: Compact Protection
For smaller deployments, the UniFi UPS Tower provides a space-saving alternative without compromising essential protection. Its compact tower design makes it ideal for offices, edge devices, or lighter loads.
- Scaled capacity for essential equipment
- Seamless integration with UniFi Network application
- Reliable surge and backup protection

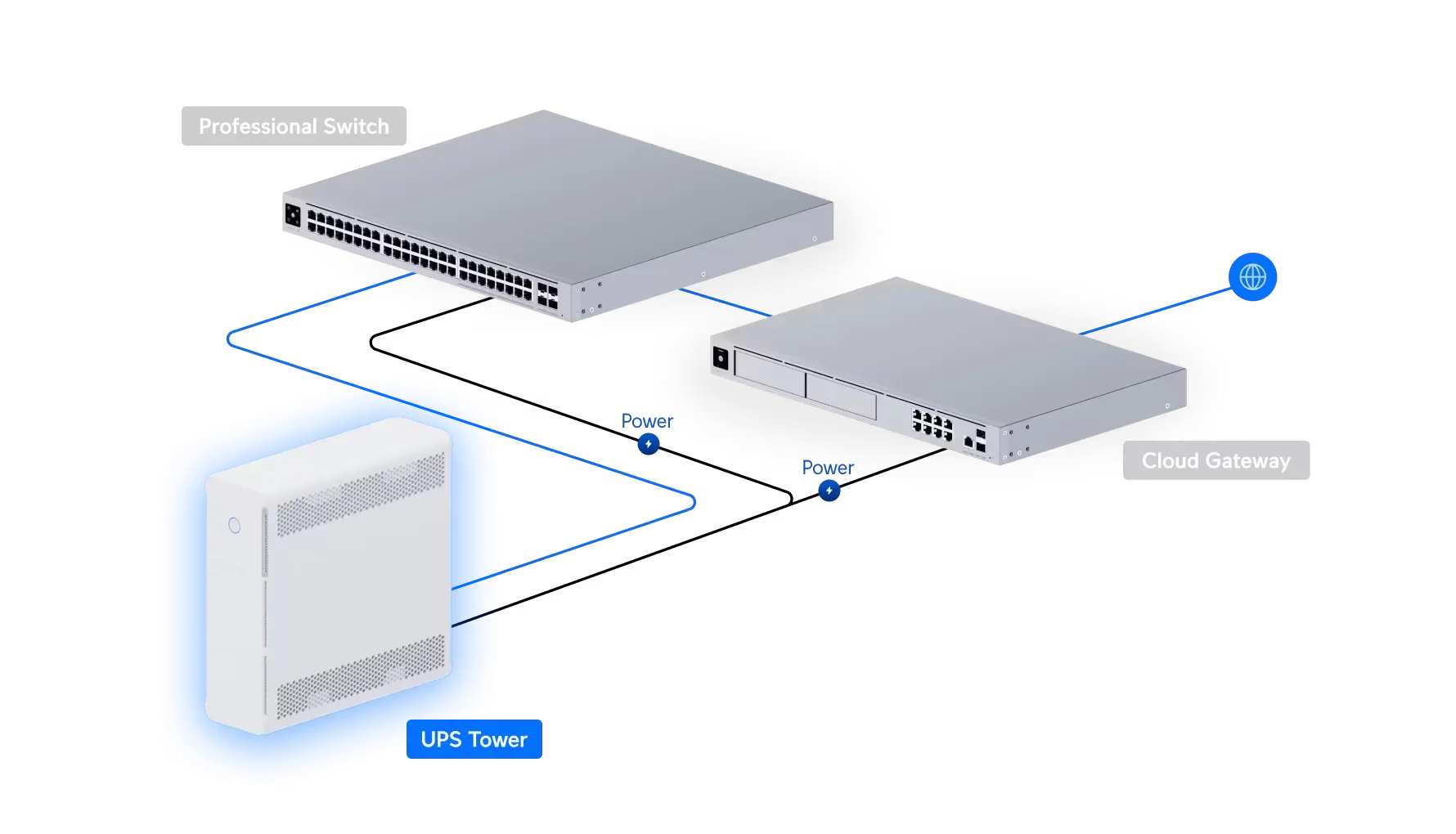

Seamless Integration with UniFi Network
Like every UniFi solution, these UPS devices are built to connect smoothly with UniFi OS and the UniFi Network application. Setup and monitoring are straightforward, giving users full visibility and control from the same familiar interface.
Overview

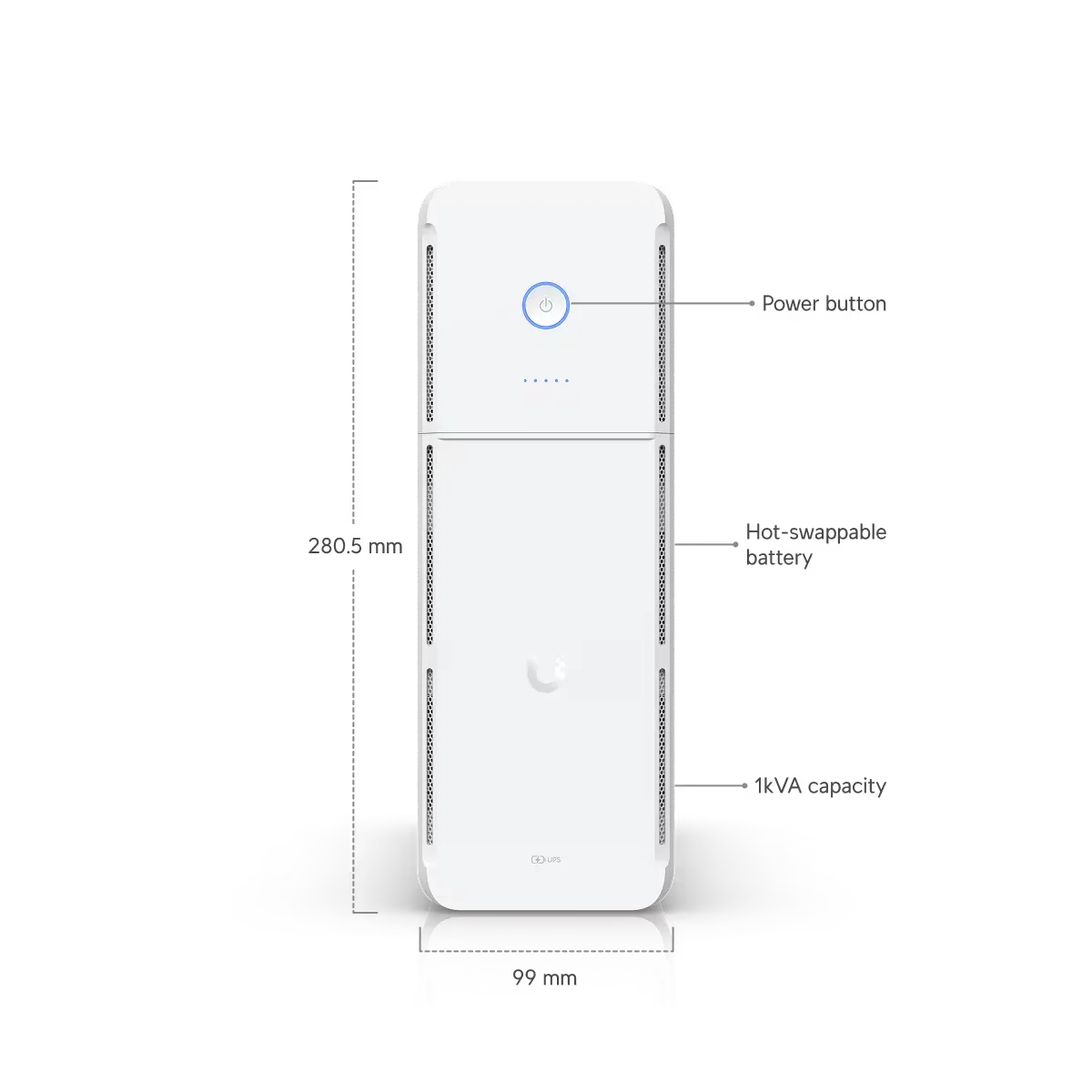

Dimensions
288 x 99 x 280.5 mm (11.3 x 3.9 x 11")
Enclosure Material
Polycarbonate and acrylonitrile butadiene styrene blend

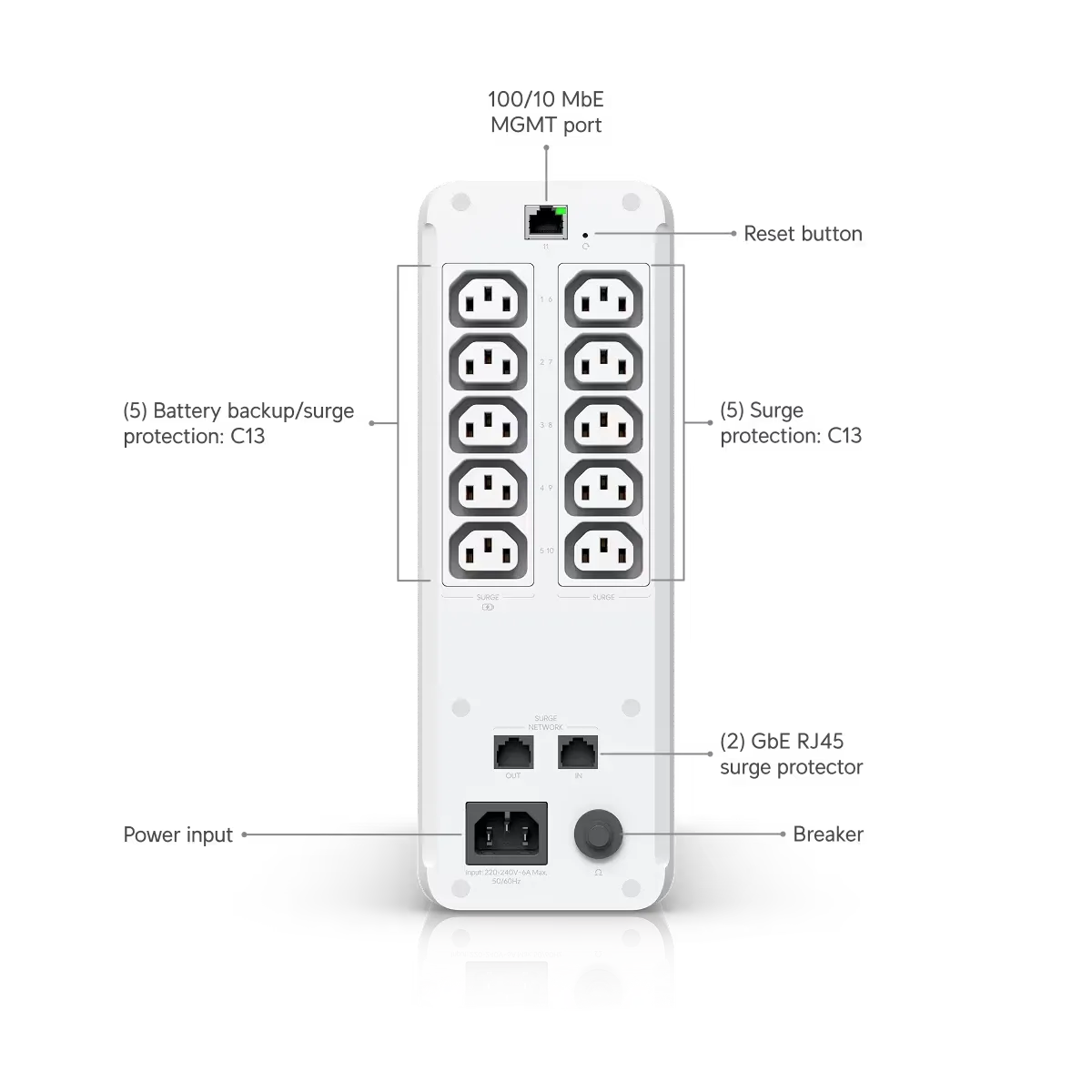

Hardware
Networking Interface
(1) 100/10 MbE port for network connection
(2) GbE ports for surge in/out
Power
(1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord
(5) Battery backup/surge protection: C13
(5) Surge protection: C13
Input Voltage Range
170280V AC
Power Method
(1) TN system, 220240V AC, 6A Max., 50/60 Hz
Nominal Input Voltage
230V AC
Nominal Output Voltage
230V AC
Frequency Range
AC mode: 50/60 Hz 5 Hz (Auto sensing)
Battery mode: 50 Hz 1 Hz
AC Voltage Regulation
10% (Battery mode)
Transfer Time
6 ms typical; 10 ms max. (Battery mode)
Wave Form
Simulated sine wave (Battery mode)
Battery Type
(1) Lead Acid 12V, 9Ah
Runtime
Full load: 2 min
Half load: 7 min
Battery Charging Time
6-8 hours recovery to 90% capacity
Overload at On-Line Mode
110% 5 min go to fault
120% go to fault immediately
Overload at Battery Mode
110% shutdown in 5 sec
120% shutdown immediately
Short Circuit Protection at On-Line Mode
Breaker, 250V AC, 10A
Output Short-Circuit Current
Ipeak 401.9A
Irms 160.7A
Buttons
(1) Power
(1) Factory reset
LEDs - Status
Off: device not turned on
Flashing white: initialising / factory default
Steady white: waiting for adoption
Steady blue: device adoption and working
Flashing blue: battery mode
Alternating white/blue: firmware upgrading
Rapid flashing blue: locate
Steady red: warning
Flashing red: low battery
LEDs - Battery Indicator
All off: 0%
(1) Steady blue: battery 1-19%
(2) Steady blue: battery 20-39%
(3) Steady blue: battery 40-59%
(4) Steady blue: battery 60-79%
(5) Steady blue: battery 80-100%
Operating Altitude
3,000 m (1.9 mi)
Operating Environment
Pollution Degree 2
Ambient Storage Temperature
-20 to 50 C (-4 to 122 F)
Ambient Operating Temperature
0 to 40 C (32 to 104 F)
Ambient Operating Humidity
0 to 95% noncondensing
Certifications
CE, IEC 62040-1
Backup Power Compatible Devices
- UCG-Fiber
- UCG-Max
- UCG-Ultra
- UDM-Pro
- UDM-Pro-Max
- UDM-SE
- UDM
- UDR
- UDR-5G-Max
- UDR7
- UX
- UX7
- USW-16-POE
- USW-24
- USW-24-POE
- USW-48
- USW-48-POE
- USW-Aggregation
- USW-Enterprise-8-PoE
- USW-Enterprise-24-PoE
- USW-EnterpriseXG-24
- USW-Flex
- USW-Flex-2.5G-5
- USW-Flex-2.5G-8
- USW-Flex-2.5G-8-PoE
- USW-Flex-Mini
- USW-Flex-Utility
- USW-Flex-XG
- USW-Lite-8-PoE
- USW-Lite-16-PoE
- USW-Pro-8-PoE
- USW-Pro-24
- USW-Pro-24-POE
- USW-Pro-48
- USW-Pro-48-POE
- USW-Pro-Aggregation
- USW-Pro-HD-24
- USW-Pro-Max-16
- USW-Pro-Max-16-PoE
- USW-Pro-Max-24-PoE
- USW-Pro-Max-48
- USW-Pro-Max-48-PoE
- USW-Pro-XG-8-PoE
- USW-Pro-XG-10-PoE
- USW-Pro-XG-24
- USW-Pro-XG-24-PoE
- USW-Pro-XG-48
- USW-Pro-XG-48-PoE
- USW-Ultra
- USW-Ultra-60W
- USW-Ultra-210W
- USW-WAN
- USW-WAN-RJ45
- UNAS-2
- UNAS-Pro
- UNAS-Pro-4
- UNVR
- UNVR-Pro
- USP-PDU-Pro
