Corsair FRAME 4000D WOOD RS Modular Mid-Tower PC Case, White & Oak

IMG 1 of 4
Our Price:
$243.00
RRP:
$11,878.81
You Save:
$11,635.81
or quickly purchase this product
Backorder
Part Number:
562144
(?) Brand:
Corsair Web Site
Manuf No:
CC-9011341-WW
CC9011341WW
Shipping Weight:
10 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
CAC4000DWOODRSWH, CAC-4000DWOODRS-WH, CC9011341WW, CC-9011341-WW


FRAME 4000D WOOD RS

PREMIUM MODULAR MID-TOWER PC CASE
NATURALLY COOLER

NATURAL WOOD FRONT PANEL

The FRAME 4000D WOOD RS lets you create a standout build that blends right in thanks to a refined front panel featuring real wood for the perfect mix of style and cooling performance.

BUILD YOUR WAY

EXPANSIVE MODULAR POSSIBILITIES

The revolutionary FRAME Modular Case System redefines customisation by offering a modular design with an array of easily-swappable parts so you can customise the look and performance of your PC.

Infinirail
FAN FOCUSED

CORSAIR INFINIRAIL FAN MOUNTING SYSTEM

This steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail to mount fans up to 200mm (140mm in the roof) exactly where you need them, ensuring targeted airflow without limitations of fixed mounting points.

BUILD AND CHILL

THREE 360mm RADIATOR MOUNTS

Customise your cooling with three dedicated mounting locations for 360mm radiators in the front, roof, or side. Mount up to dual 360mm radiators simultaneously while still having space for additional intake/exhaust fans for extra cooling performance.

GO WITH THE FLOW

FOUR RS120 PWM FANS INCLUDED

RS120 PWM fans feature daisy-chainable connections for easy setup. Their magnetic dome bearings minimise friction, delivering a perfect combination of high airflow and quiet operation.

FUTURE PROOF

A BREEZE TO BUILD IN

With a modern design approach to a mainstream PC format, the FRAME 4000D WOOD RS has the convenient features to take the hassle out of your build.

Airflow
EXTRA AIRFLOW

An additional 120mm fan is pre-installed in the rear mount to help keep components cooler right out of the box.

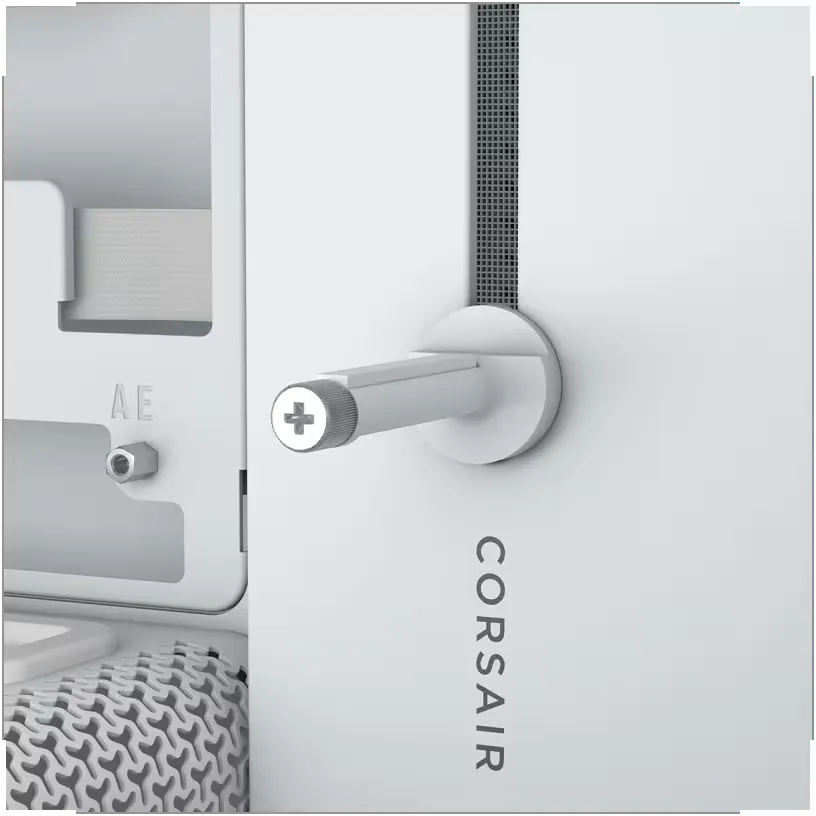

Graphics Card
SAG-FREE GRAPHICS CARDS

Every CORSAIR FRAME 4000D WOOD RS includes a GPU Anti-sag Stabilisation Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.

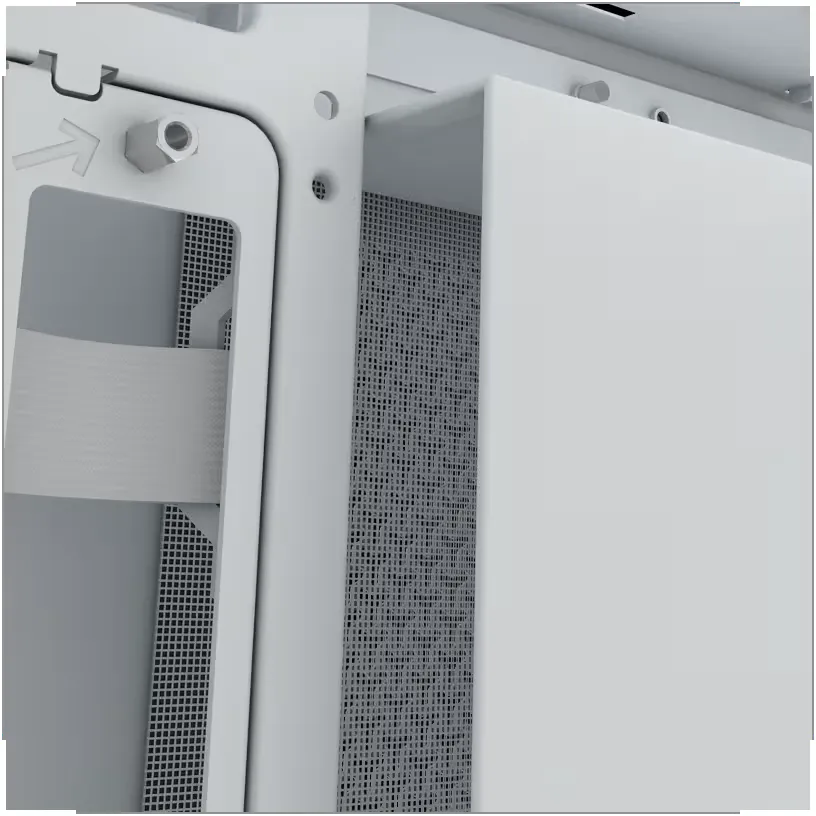

Cable Shroud
CABLE SHROUD

Keep unused and overly long cables out of sight with the cable shroud for a clean and organised interior.

WIDE COOLING FLEXIBILITY

Customise your cooling setup with room for up to 13x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators.

DIMENSIONS
FAN CAPACITY
RADIATOR CAPACITY

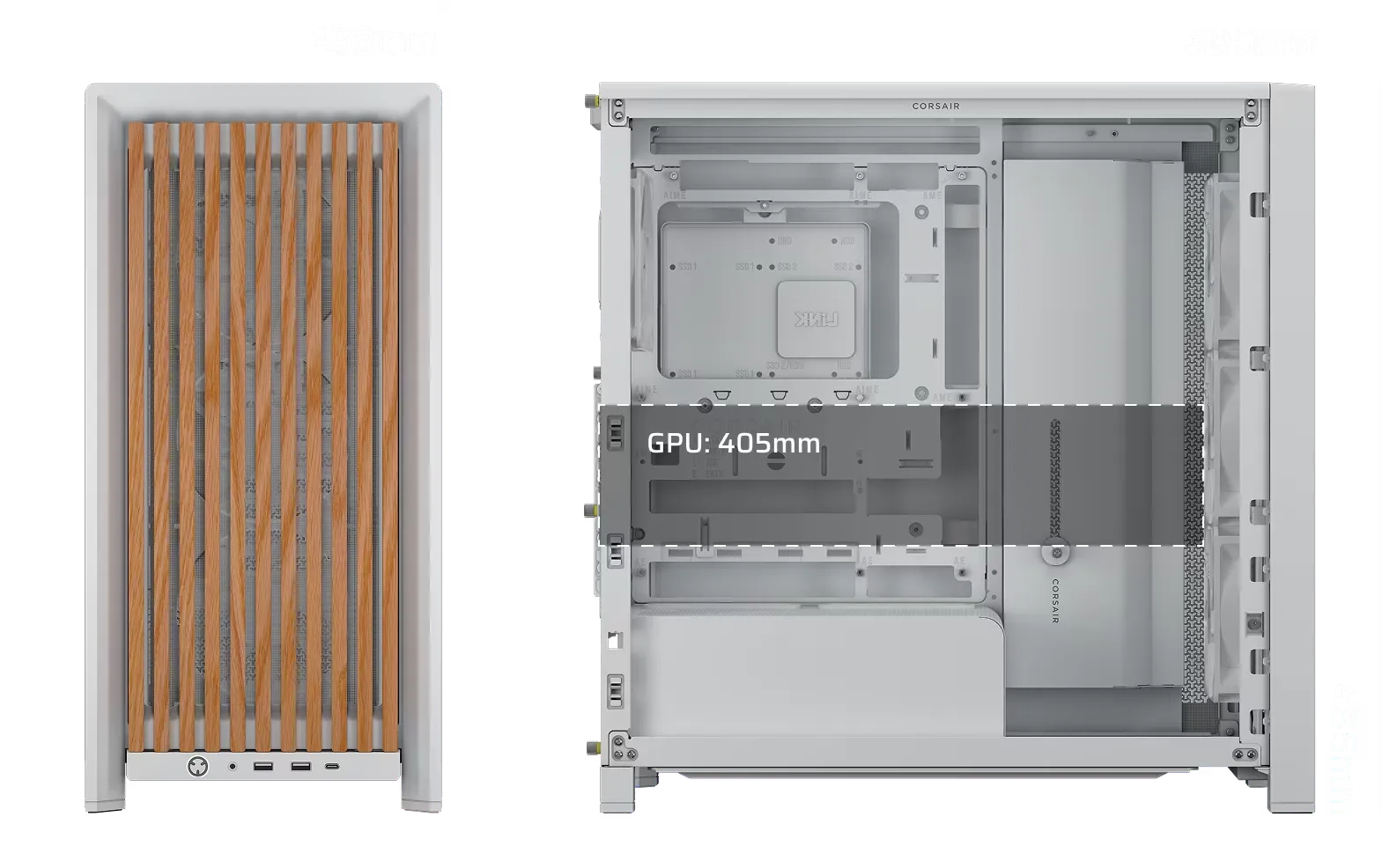

The FRAME 4000D WOOD RS has space to accommodate the most ambitious builds with room to fit GPUs up to 405mm, even with 25mm front fans installed.

Dimensions

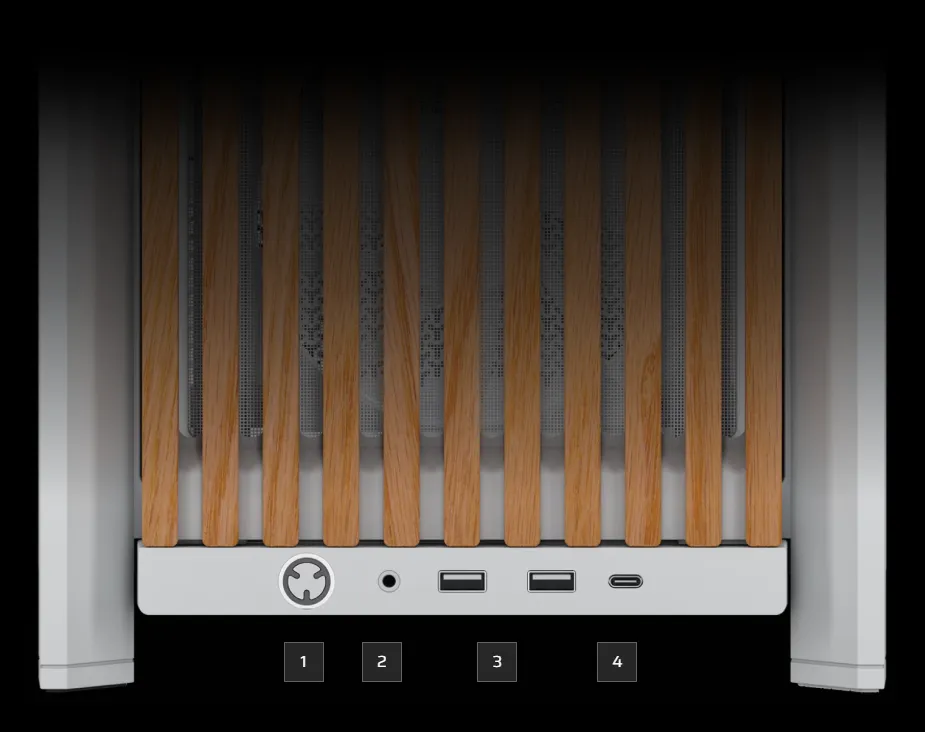

Front Panel I/O

MODERN I/O WITH ARGB POWER BUTTON

Fast I/O including a USB 3.2 Gen 2x2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack. The power button features a swappable mechanical switch and ARGB to compliment your builds lighting.

1
ARGB Power Button
2
Headphone / Mic Combo Jack
3
2x USB 3.2 Gen 1 Type-A Ports
4
1x USB 3.2 Gen 2x2 Type-C Port

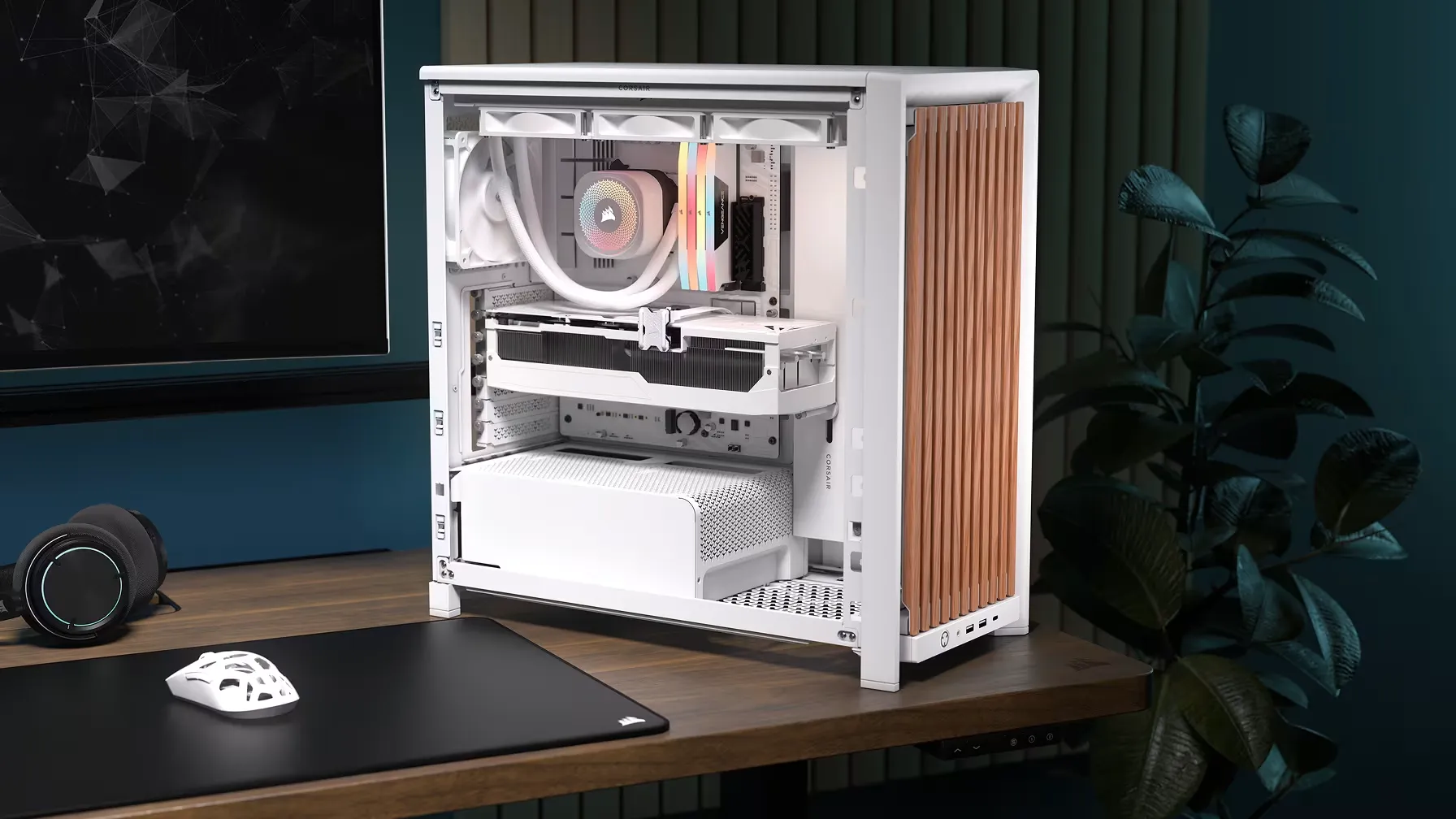

Scenario
Warranty
TWO-YEAR WARRANTY

WORLD-CLASS SUPPORT

CORSAIR's award-winning service means you can enjoy your gear worry-free.

Specifications
Case Supported

Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Case Height

486mm

Case Length

490mm

Case Width

239mm

Material

Steel, Solid Wood, Tempered Glass, Plastic

Colour

White Oak

Case Size

Mid-Tower

Radiator Compatibility

120mm, 140mm, 240mm, 280mm, 360mm

Case Window

Tempered Glass

Compatible Liquid Coolers

H60, H100, H115, H150, NAUTILUS, TITAN

Case Warranty

2 Year

Internal 3.5" Drive Bays

1

Internal 2.5" Drive Bays

2

Maximum CPU Cooler Height

170mm

Maximum PSU Length

220mm

Case Front IO

(1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out

Maximum GPU Length

430mm

Weight

11.82kg

Case Expansion Slots

7 Horizontal or 3 Vertical

Case Power Supply

ATX

Radiator Support - Top

360mm, 280mm, 240mm

Radiator Support - Front

360mm, 280mm, 240mm

Radiator Support - Bottom

None

Radiator Support - Side

360mm, 280mm, 240mm

Radiator Support - Rear

140mm, 120mm

Fan Support - Top

3x 120mm, 2x 140mm

Fan Support - Front

3x 120mm, 2x 140mm, 2x 200mm

Fan Support - Bottom

3x 120mm

Fan Support - Side

3x 120mm; 2x 140mm

Fan Support - Rear

1x 120mm, 1x 140mm

Front IO Motherboard Connections

1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio

Reverse Connector Motherboard Support

Yes

Included Fans

RS Series

Dust Filtration

Yes

Cable Routing Space

37mm

RapidRoute Included

No

Left Side Panel

Tempered Glass

Right Side Panel

Steel

Vertical Mount Support

Supported (Riser Card Sold Separately)

Box Contents

FRAME 4000D WOOD RS Case
Case Accessory Box
