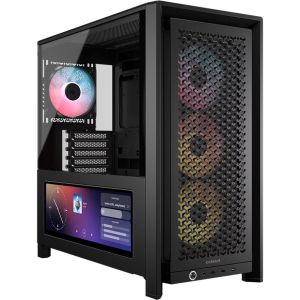

Corsair FRAME 4000D LCD RS ARGB Premium Mid-Tower PC Case- Black, ATX/mATX/ITX/E-ATX, 486x490x239mm, 430mm GPU, 360mm rad, tempered glass

IMG 1 of 1
Our Price:
$582.40
RRP:
$603.90
You Save:
$21.50
or quickly purchase this product
Backorder
Part Number:
562147
(?) Brand:
Corsair Web Site
Manuf No:
CC-9011326-WW
CC9011326WW
Shipping Weight:
12.36 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
CAC4000DLCDRSARGBBK, CAC-4000DLCDRS-ARGB-BK, CC9011326WW, CC-9011326-WW


FRAME 4000D LCD RS ARGB

PREMIUM MID-TOWER PC CASE
Watch Video
A TOUCH ABOVE

LEVEL UP YOUR BATTLESTATION

Take your build to the next level with this standout 14.5" display. Showcase system metrics, calendars, weather apps, or in-game chats.

PREMIUM POWER

BUILD YOUR DREAM MACHINE

This leveled-up version of the FRAME 4000D includes a host of upgrades for peak performance with a pre-installed XENEON EDGE 14.5" LCD Touchscreen, more cooling power, updated front panel I/O, and increased rigidity for the ultimate mid-tower chassis.

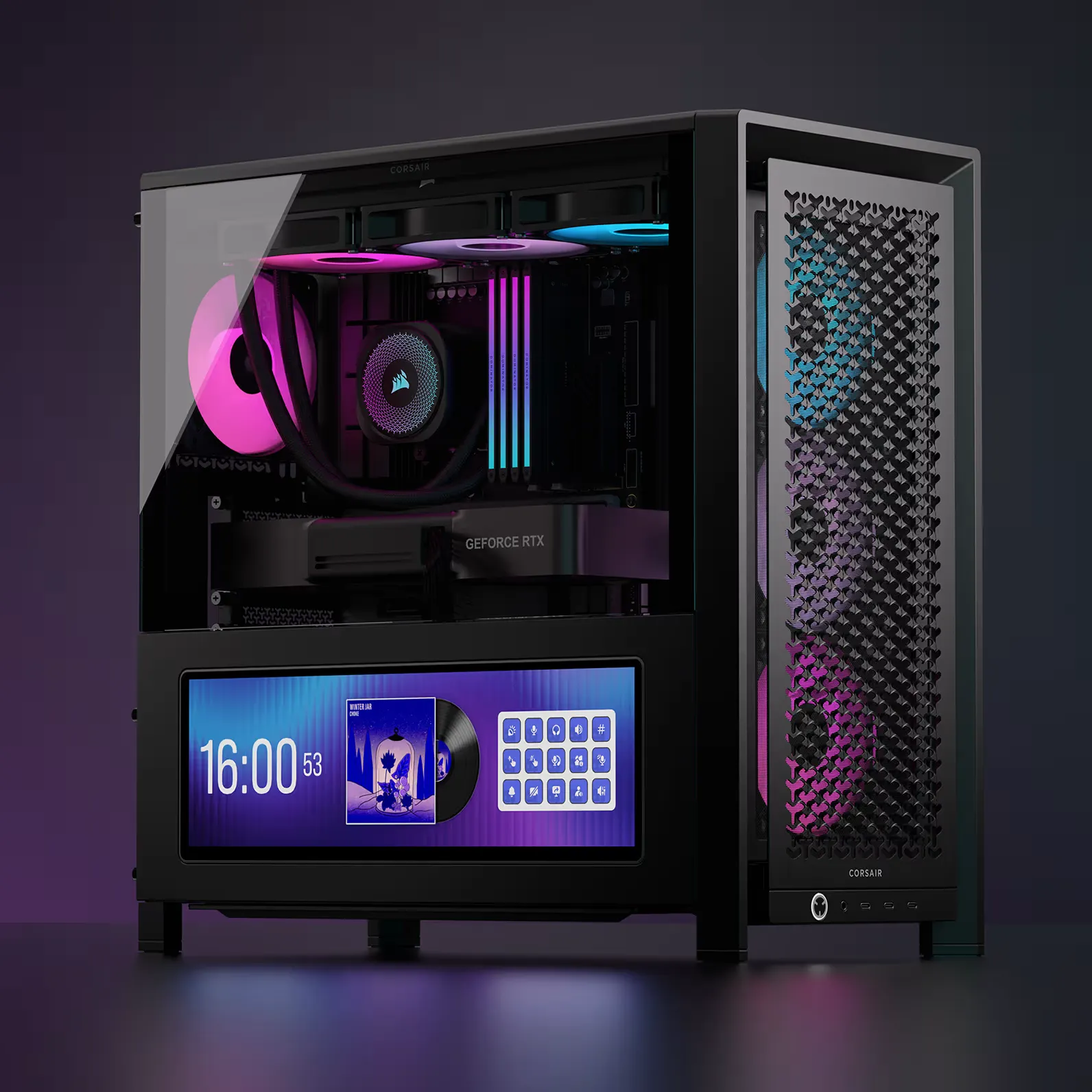

Dream Machine

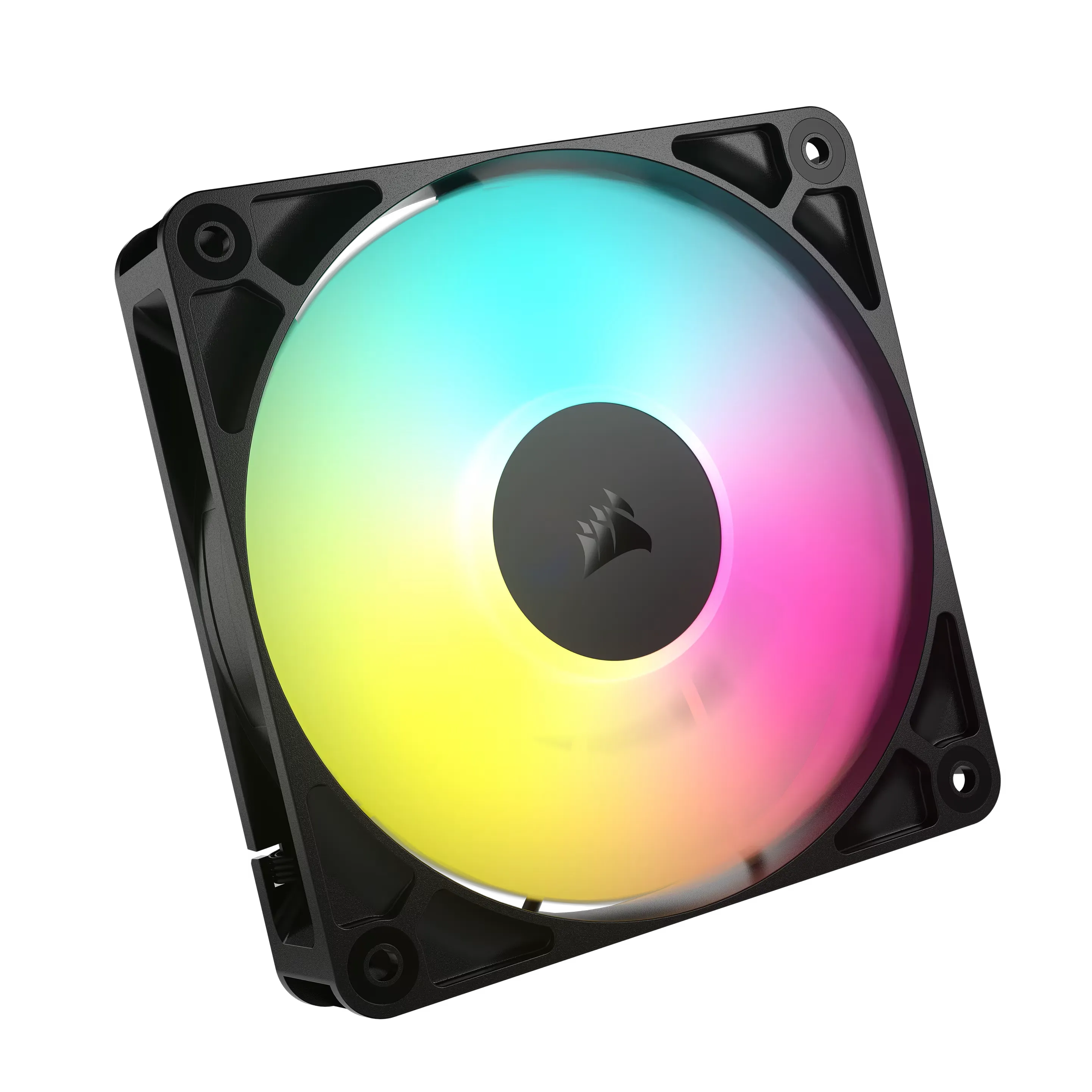

RS120 Fan
EVEN COOLER

FOUR POWERFUL RS120 ARGB FANS INCLUDED

The FRAME 4000D LCD provides full system cooling right out of the box with three RS120 ARGB intake fans and one RS120 ARGB exhaust fan for powerful cooling with very low-noise and customisable lighting. A new 120mm/140mm fan mount has been added to the bottom of the chassis as well, giving builders even more options for fan placement.

FAN FOCUSED

CORSAIR INFINIRAIL FAN MOUNTING SYSTEM

The steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail between 120mm and 140mm fan sizes and adjust the fan locations to ensure targeted airflow without limitations of fixed mounting points.

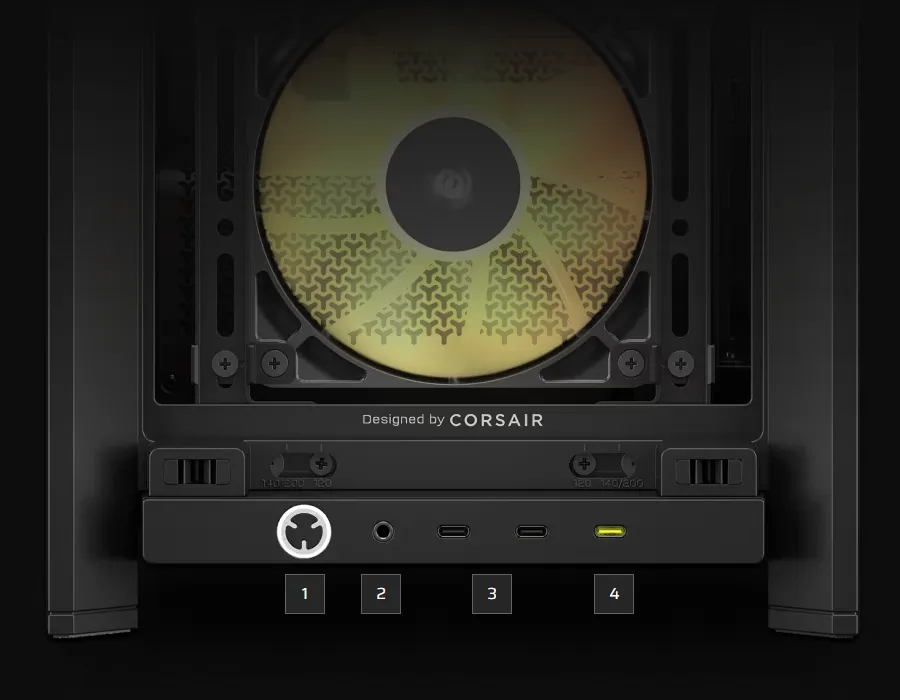

Front Panel I/O

MODERN FRONT PANEL I/O

Puts your connections within easy reach, including a USB 3.2 Gen 2x2 Type-C port with 20Gb/s of bandwidth, 2x USB 3.2 Gen 1 Type-C ports with 5Gb/s of bandwidth, and a combination audio/microphone jack.

1
Power Button
2
Headphone / Mic Combo Jack
3
2x USB 3.2 Gen 1 Type-C Ports
4
USB 3.2 Gen 2x2 Type-C Port
BUILD AND CHILL

DUAL 360mm RADIATOR SUPPORT

Boost your cooling with three dedicated mounting locations for 360mm radiatorsfront, roof, and side. You can mount up to 13x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.

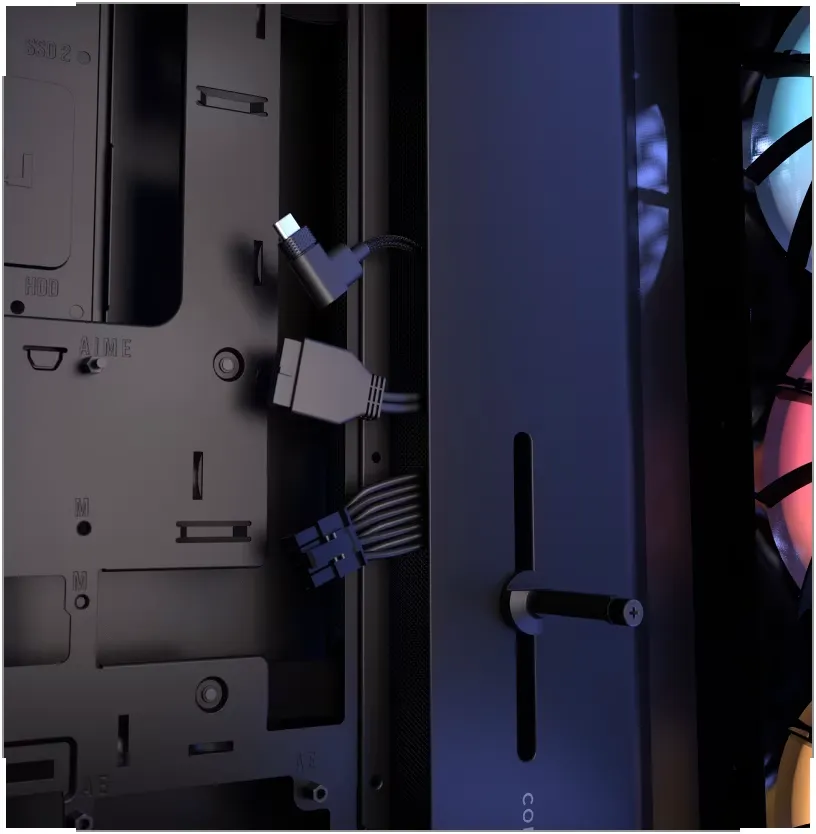

HIDDEN FROM VIEW

LOOK, NO CABLES

The case is fully compatible with motherboards with backside connections and works with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth motherboards. It features ample connector and cable cutouts along with plenty of tie-downs to keep your build neat and organised.

A BREEZE TO BUILD IN

With a modern design approach to a mainstream PC format, the FRAME 4000D LCD RS ARGB has the convenient features to take the hassle out of your build.

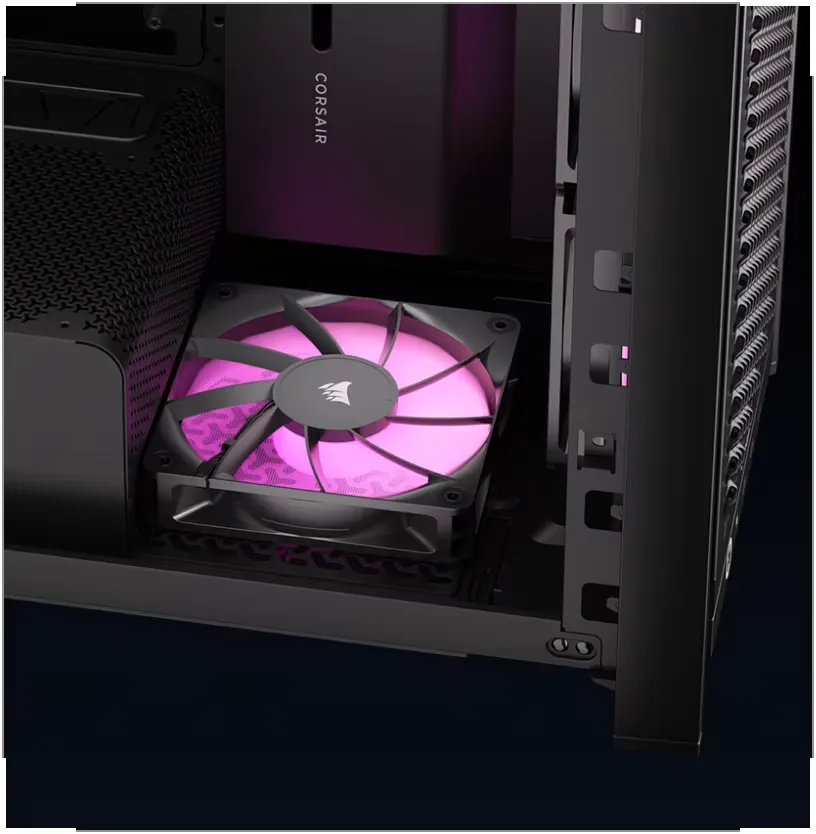

EXTRA AIRFLOW

A new 120mm bottom fan mount gives PC builders even more options for fan placement.

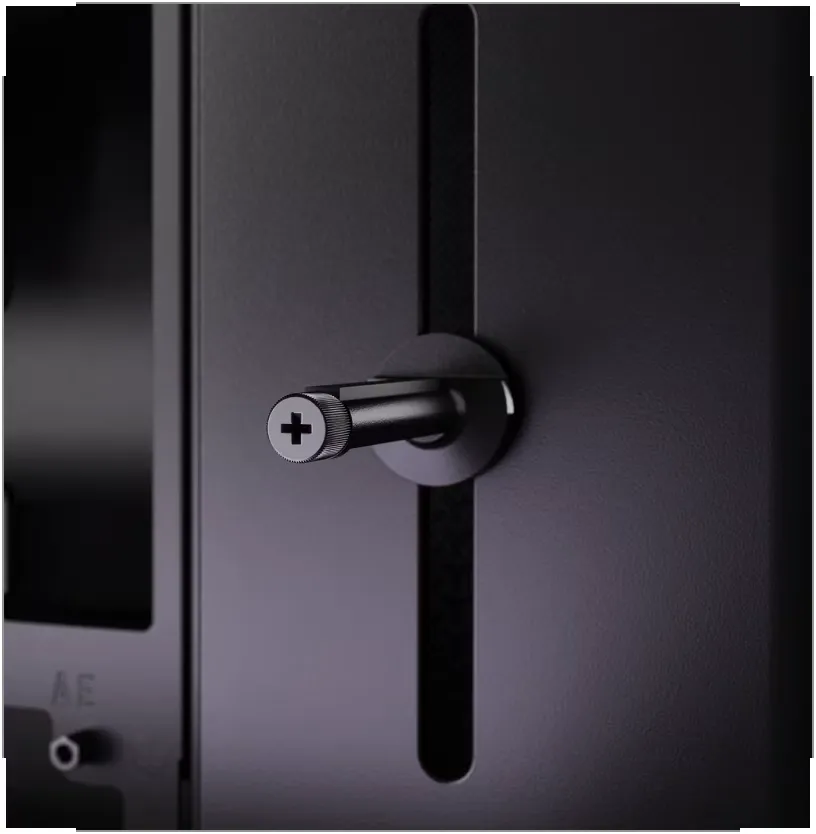

SAG-FREE GRAPHICS CARDS

Every CORSAIR FRAME 4000D LCD includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.

CABLE SHROUD

Keep unused and overly long cables out of sight with the cable shroud for a clean and organised interior.

WIDE COOLING FLEXIBILITY

Customise your cooling setup with room for up to 13x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators. Install a GPU up to 405mm, even with fans installed in the front.

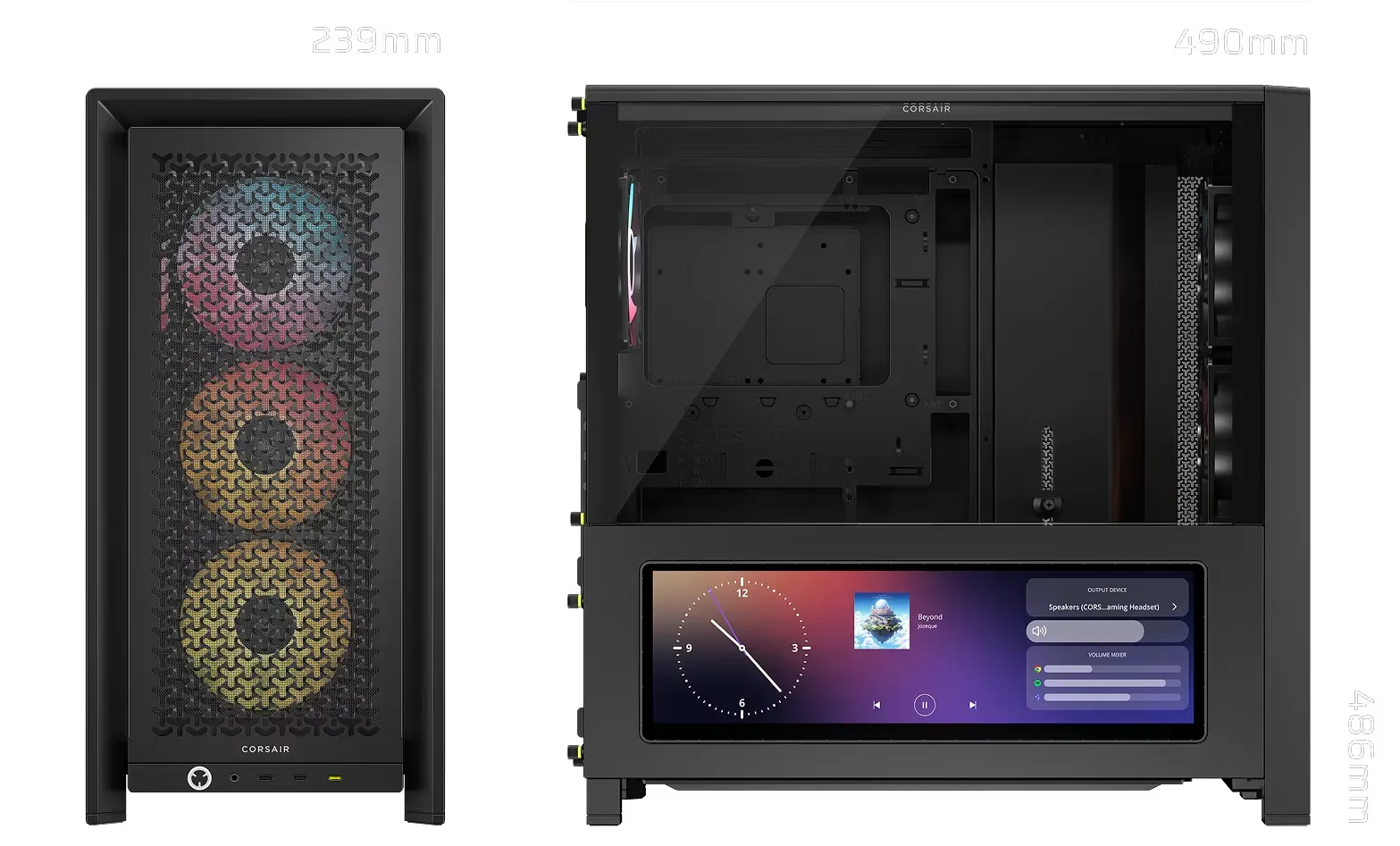

DIMENSIONS
FAN CAPACITY
RADIATOR CAPACITY

The FRAME 4000D LCD has more than enough space to accommodate and cool the most ambitious builds.

Dimensions
Warranty
TWO-YEAR WARRANTY

WORLD-CLASS SUPPORT

CORSAIR's award-winning service means you can enjoy your gear worry-free.

Specifications
Case Supported

Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

Case Height

486mm

Case Length

490mm

Case Width

239mm

Material

Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic

Colour

Black

Case Size

Mid-Tower

Radiator Compatibility

120mm, 140mm, 240mm, 280mm, 360mm

Case Window

Tempered Glass

Compatible Liquid Coolers

H60, H100, H115, H150, NAUTILUS, TITAN

Case Warranty

2 Year

Internal 3.5" Drive Bays

2

Internal 2.5" Drive Bays

4

Maximum CPU Cooler Height

170mm

Maximum PSU Length

220mm

Case Front IO

(1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out

Maximum GPU Length

430mm

Weight

12.36kg

Case Expansion Slots

7 Horizontal or 3 Vertical

Case Power Supply

ATX

Radiator Support - Top

360mm, 280mm, 240mm

Radiator Support - Front

360mm, 280mm, 240mm

Radiator Support - Bottom

None

Radiator Support - Side

360mm, 280mm, 240mm

Radiator Support - Rear

140mm, 120mm

Fan Support - Top

3x 120mm, 2x 140mm

Fan Support - Front

3x 120mm, 2x 140mm, 2x 200mm

Fan Support - Bottom

2x 120mm

Fan Support - Side

3x 120mm; 2x 140mm

Fan Support - Rear

1x 120mm, 1x 140mm

Front IO Motherboard Connections

1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL

Reverse Connector Motherboard Support

Yes

Included Fans

RS Series

Dust Filtration

Yes

Cable Routing Space

37mm

RapidRoute Included

No

Left Side Panel

Tempered Glass

Right Side Panel

Steel

Vertical Mount Support

Supported (Riser Card Sold Separately)

Box Contents

FRAME 4000D Case
FRAME 4000 Series Upper Tempered Glass Panel
FRAME 4000 LCD Mounting Bracket
XENEON EDGE LCD Panel
XENEON EDGE LCD Accessories & Wiring
Case Acccessory Box
