HOME / Back -> Cases -> Midi-Tower -> Corsair

Corsair 3200D RS Mid-Tower PC Case - Black, ATX mATX ITX, TG panel, 400mm GPU, 165mm CPU, 360mm rad, USB-C, 7 slots, 2x2.5 1x3.5, 2yr wty, steel TG

IMG 1 of 1
Our Price:
$146.50
RRP:
$11,878.81
You Save:
$11,732.31
or quickly purchase this product
Backorder
Part Number:
562149
(?) Brand:
Corsair Web Site
Manuf No:
CC-9011334-WW
CC9011334WW
Shipping Weight:
12 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
CAC3200DRSBK, CAC-3200DRS-BK, CC9011334WW, CC-9011334-WW


3200D RS

MID-TOWER PC CASE
Watch Video
GAMING POWERHOUSE

ROOM FOR THE BIGGEST GPUs

The 3200D is a spacious mid-tower chassis designed for modern GPUs. With 375mm of clearance with front fans installed, even the most powerful GPUs have plenty of room to breathe. The PSU shroud also features 2x 120m fan mounts, with the front one being angled directly at the GPU, providing even more cooling power for the hottest GPUs.

AIR BENDING

THREE RS120 FANS INCLUDED

RS120 PWM fans minimise friction and mechanical noise with its magnetic dome bearing, achieving a balance between high airflow performance with a low acoustic footprint.

UNIFIED FAN CONTROL

DIRECT-TO-MOTHERBOARD CONNECTION

Skip the fan hubs and excessive cables - daisy-chain your RS Series fans in sequence and control them all through just a single 4-pin PWM connector on your motherboard.

*RS ARGB fans and connections shown.
CABLE MANAGEMENT CHEAT CODE

DESIGNED FOR SUPER-CLEAN BUILDS

Cable management is easy in the 3200D with support for reverse-connector motherboards, a built-in cable shroud, and ample tie-down locations throughout the chassis.

FUNCTION FIRST

BUILT FOR THE REAL WORLD

Every detail of the 3200D is focused on performance and how your system runs day to day. From keeping your graphics card securely in place to directing airflow where it is needed most, these features work together to help your build maintain optimal performance.

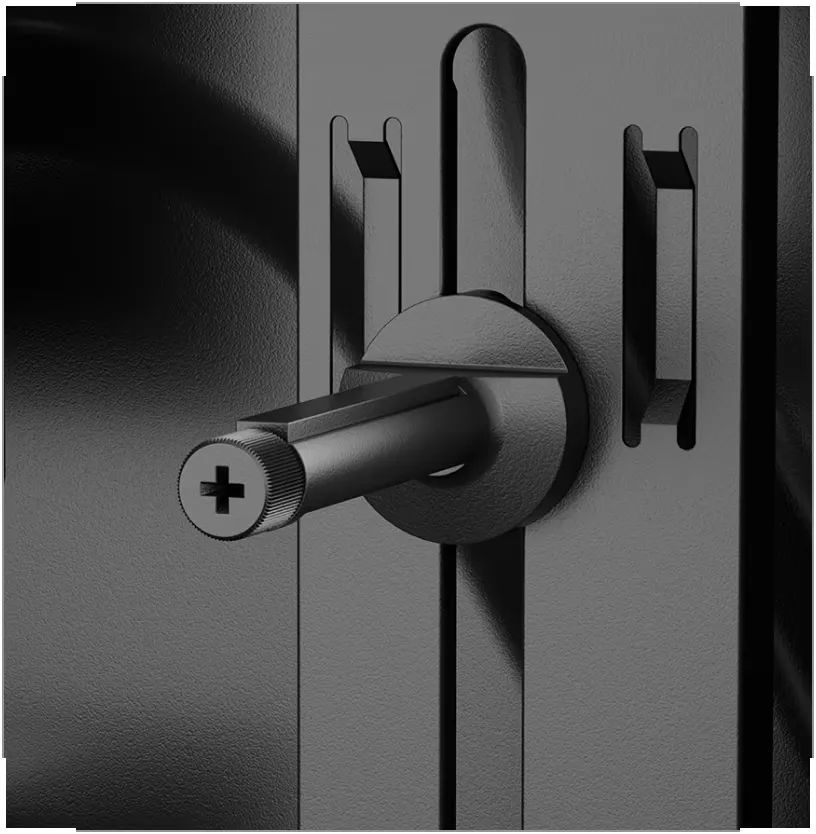

Graphics Card
SAG-FREE GRAPHICS CARDS

Every 3200D includes a built-in Anti-sag Stabilisation Arm that is adjustable, so you dont have to worry about damaging your GPU or your PCIe slot.

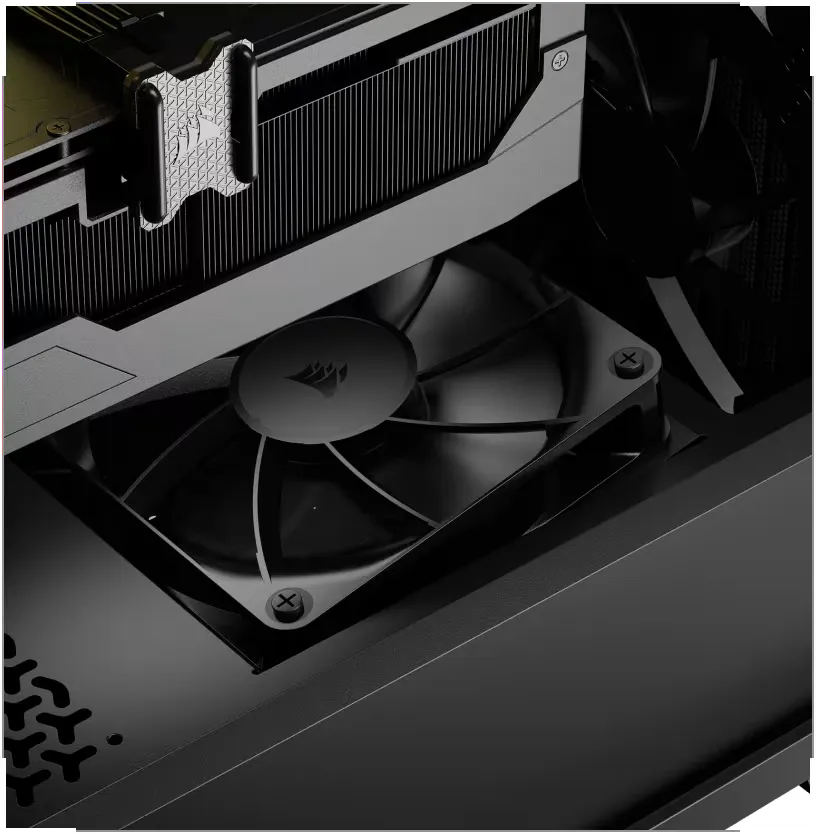

Fan Mount
ANGLED BOTTOM FAN MOUNT

An angled fan mount in the bottom of the case allows cool air to be channeled directly at the GPU for improved cooling and better GPU temps.

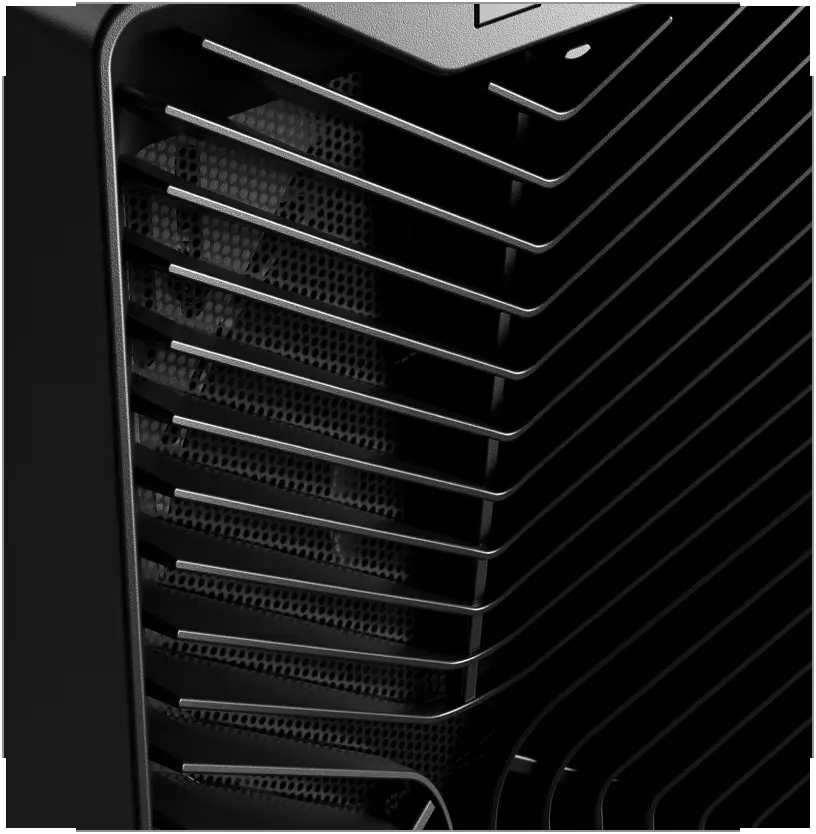

Airflow
HIGH-AIRFLOW FRONT PANEL

Engineered for high airflow, the front panel delivers excellent cooling for high-power components with a unique style.

WIDE COOLING FLEXIBILITY

The CORSAIR 3200D is made to keep the hottest components cool with 2x 360mm radiator mounting locations and fan mounts throughout the chassis for continuous airflow.

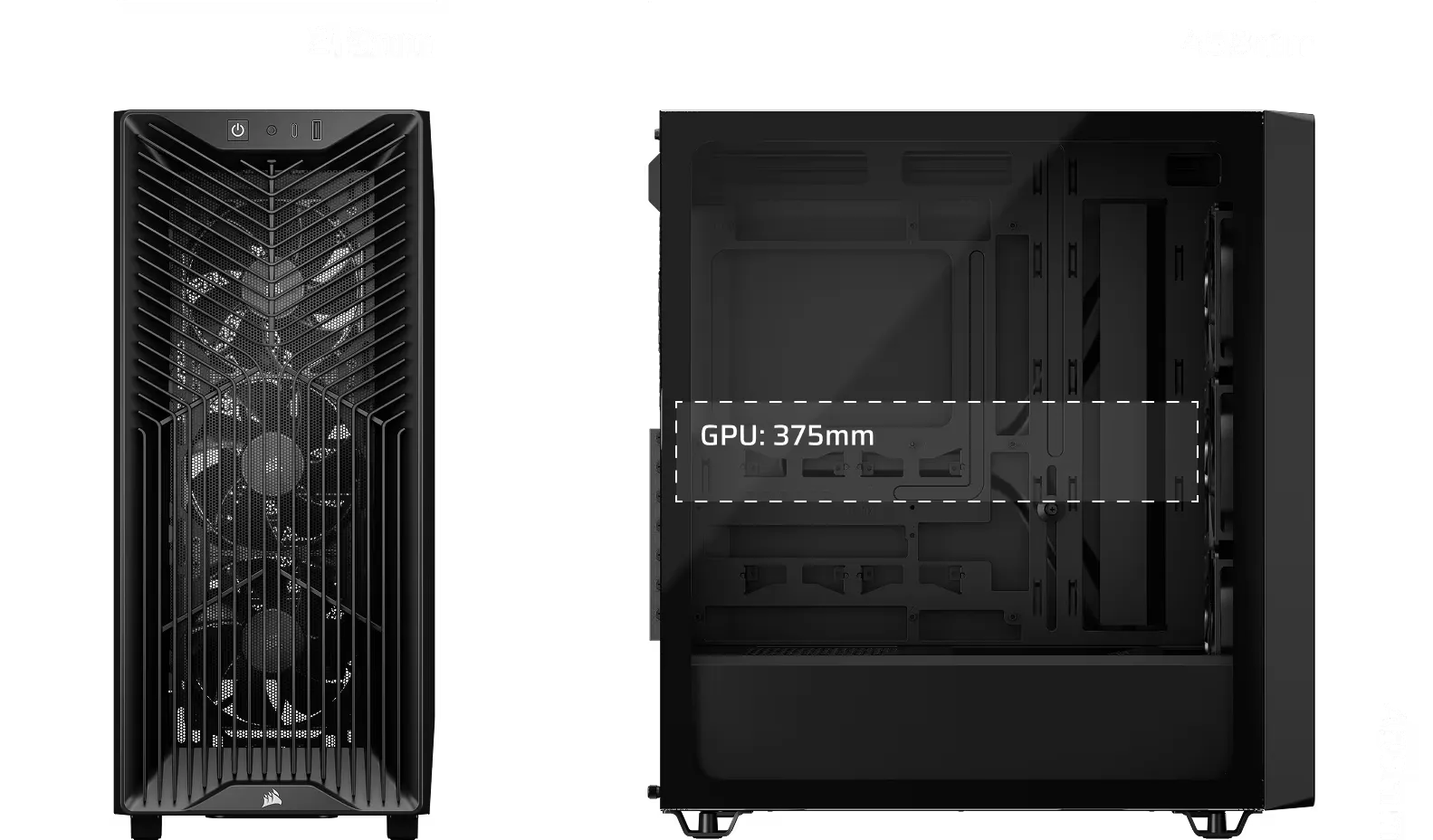

DIMENSIONS
FAN CAPACITY
RADIATOR CAPACITY

The 3200D is a roomy chassis with plenty of space for fans, radiators, and liquid-cooling components.

Dimensions

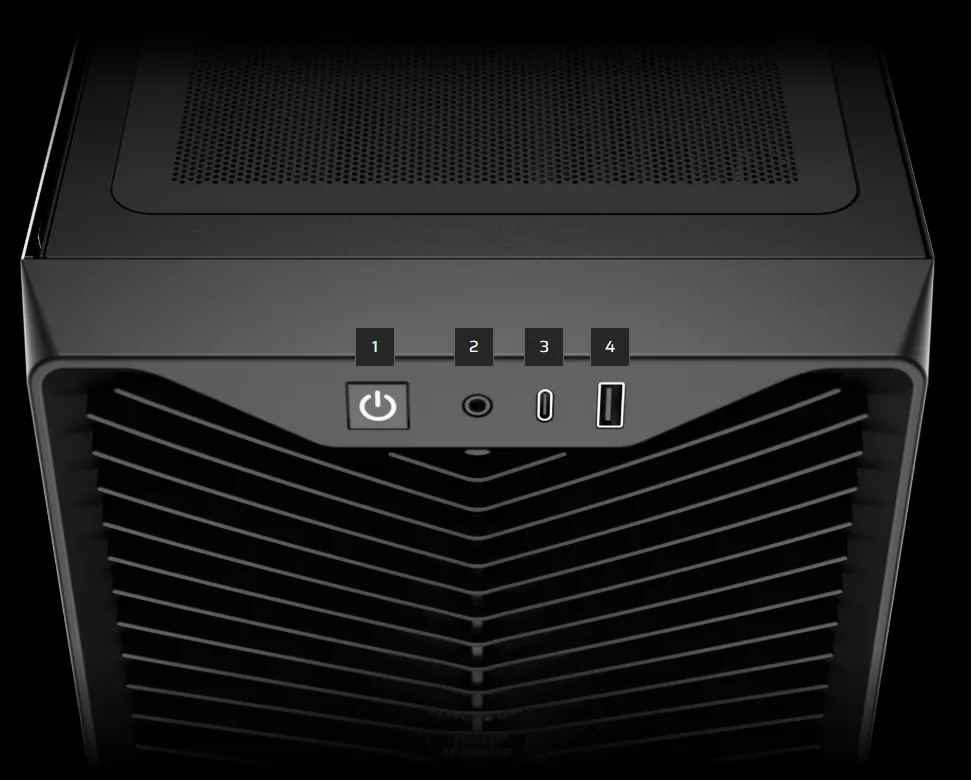

Front Panel I/O

MODERN FRONT PANEL I/O

The top-mounted I/O ports grant easy access to a USB 3.2 Gen 2x2 Type-C 20Gb/s port for lightning-fast data transfers, a USB 2.0 Type-A, a combo audio/microphone jack, and a power button.

1
Power Button
2
Headphone / Mic Combo Jack
3
USB 3.2 Gen 2x2 Type-C Port
4
USB 2.0 Type-A Port
Scenario
Warranty
TWO-YEAR WARRANTY

WORLD-CLASS SUPPORT

CORSAIR's award-winning service means you can enjoy your gear worry-free.

Specifications
Case Supported

Mini-ITX, Micro-ATX, ATX

Case Height

495mm

Case Length

458mm

Case Width

219mm

Material

Steel, Tempered Glass, Plastic

Colour

Black

Case Size

Mid-Tower

Radiator Compatibility

120mm, 140mm, 240mm, 280mm, 360mm

Case Window

Tempered Glass

Compatible Liquid Coolers

H60, H100, H115, H150, NAUTILUS, TITAN

Case Warranty

2 Year

Internal 3.5" Drive Bays

1

Internal 2.5" Drive Bays

2

Maximum CPU Cooler Height

165mm

Maximum PSU Length

220mm

Case Front IO

(1x) USB 3.2 Gen 2x2 Type-C, (1x) USB 2.0 Type-A, (1x) Audio in/out

Maximum GPU Length

400mm

Weight

8.5kg

Case Expansion Slots

7 Horizontal

Case Power Supply

ATX

Radiator Support - Top

360mm, 280mm, 240mm

Radiator Support - Front

360mm, 280mm, 240mm

Radiator Support - Bottom

None

Radiator Support - Side

None

Radiator Support - Rear

120mm

Fan Support - Top

3x 120mm, 2x 140mm

Fan Support - Front

3x 120mm, 2x 140mm

Fan Support - Bottom

2x 120mm

Fan Support - Side

None

Fan Support - Rear

1x 120mm

Front IO Motherboard Connections

1x USB-3.2 Gen2x2 Type-E, 1x USB 2.0 9-Pin, 1x F_PANEL, 1x HD Audio

Reverse Connector Motherboard Support

Yes

Included Fans

RS Series

Dust Filtration

Yes

Cable Routing Space

24mm

RapidRoute Included

No

Left Side Panel

Tempered Glass

Right Side Panel

Steel

Vertical Mount Support

Unsupported

Box Contents

3200D Case
3x RS120 Fans
Case Acccessory Box
