Deepcool PS850P 850W Gamer Storm SFX12V V4.1 & ATX12V V3.1M Full Japanese Electroyltic Capacitors, Cybenetics Platinum/PPLP 115V Platinum

IMG 1 of 9
Our Price:
$284.65
RRP:
$299.00
You Save:
$14.35
or quickly purchase this product
Backorder
Part Number:
562262
(?) Brand:
Deepcool
Manuf No:
R-PS850P-FE0B-JGAU
RPS850PFE0BJGAU
Shipping Weight:
2.18 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
PSDPS850P, PSD-PS850P, RPS850PFE0BJGAU, R-PS850P-FE0B-JGAU

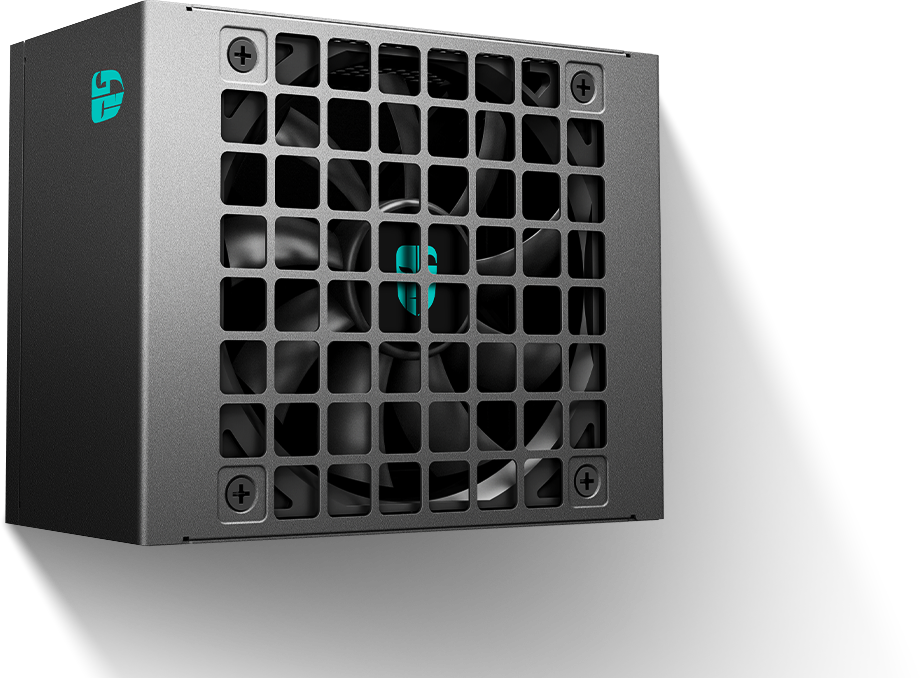

SMALL BUT POWERFUL
The GAMER STORM PS-P is designed for small form factor PCs, fully complies with the latest Intel ATX 3.1 and PCIe 5.1 standards, and offers platinum-level energy efficiency.
ATX3.1 COMPLIANCE CERTIFIED

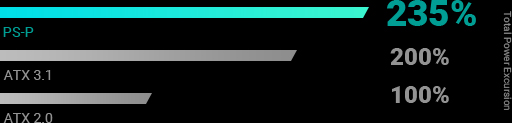

The PS-P series is officially certified by Cybenetics and PPLP for its ATX 3.1 compliance. It can deliver up to 235% of the total system power and 300% of the rated power at the 12V 2x6 connector for 0.1 ms, thus exceeding the requirements of the Intel ATX 3.1 standard.
RELIABLE STABILITY

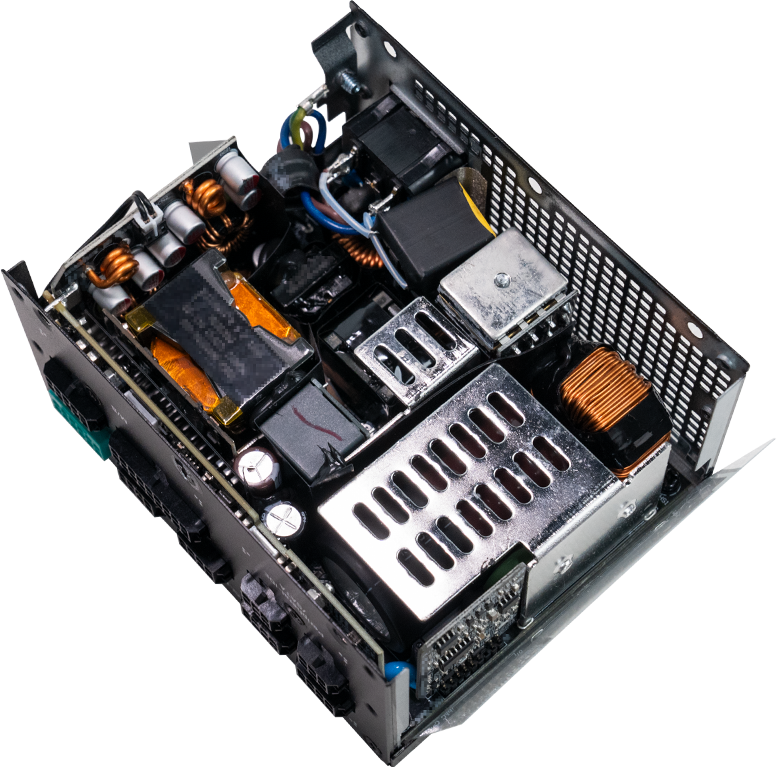

With high-quality Japanese electrolytic capacitors, active PFC, a half-bridge LLC and a DC-DC topology, the PS-P achieves a hold time of 16 ms at 80% load.
THE PLATINUM STANDARD
It is certified Platinum by Cybenetics and PPLP and achieves a high energy efficiency of 92% at a typical load of 50%.
PERFECTED CABLES

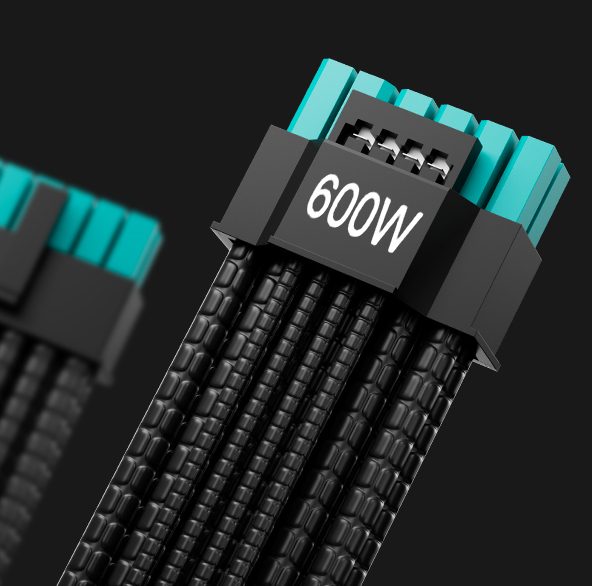

The PS-P features high-quality, UL-certified copper conductors and specially shaped, sheathed cables that offer excellent cable management while meeting stringent safety standards. And thanks to the two-color 12V 2x6 connectors, you can easily verify that everything is connected correctly.

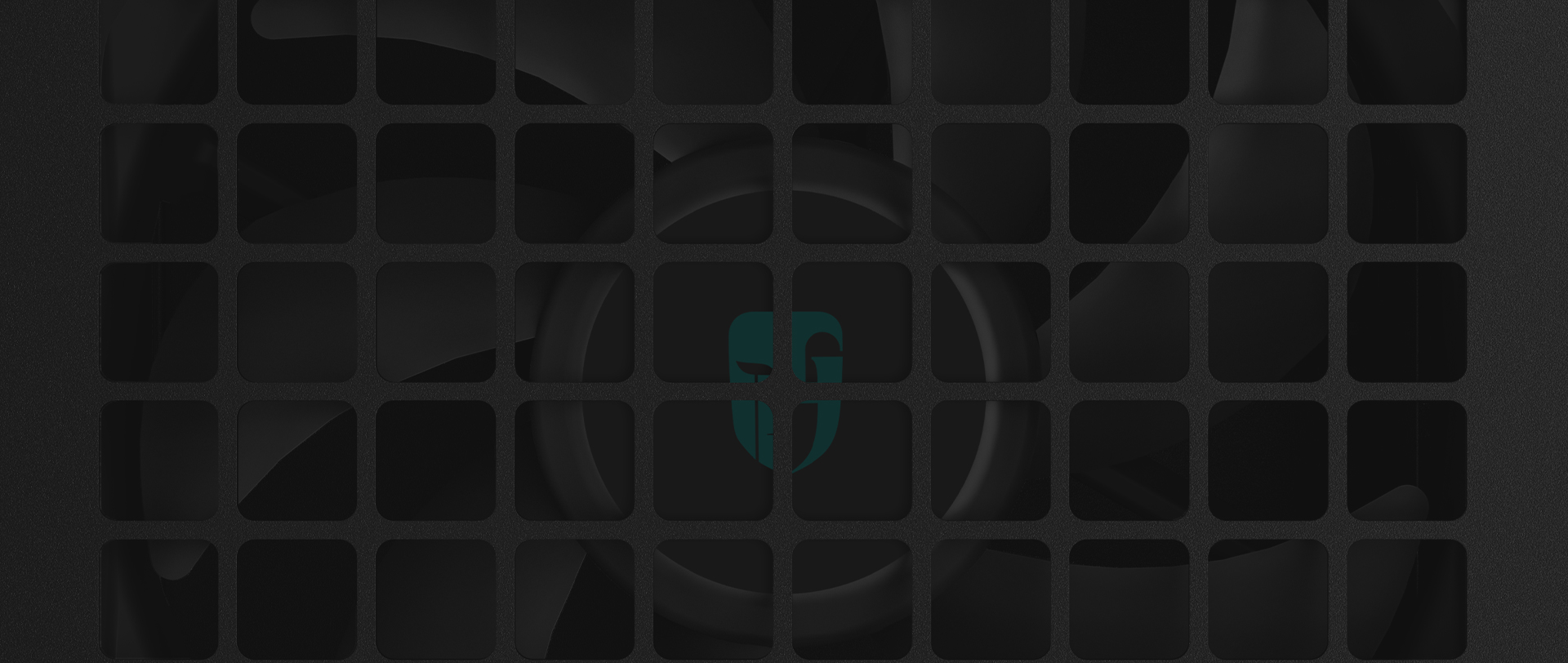

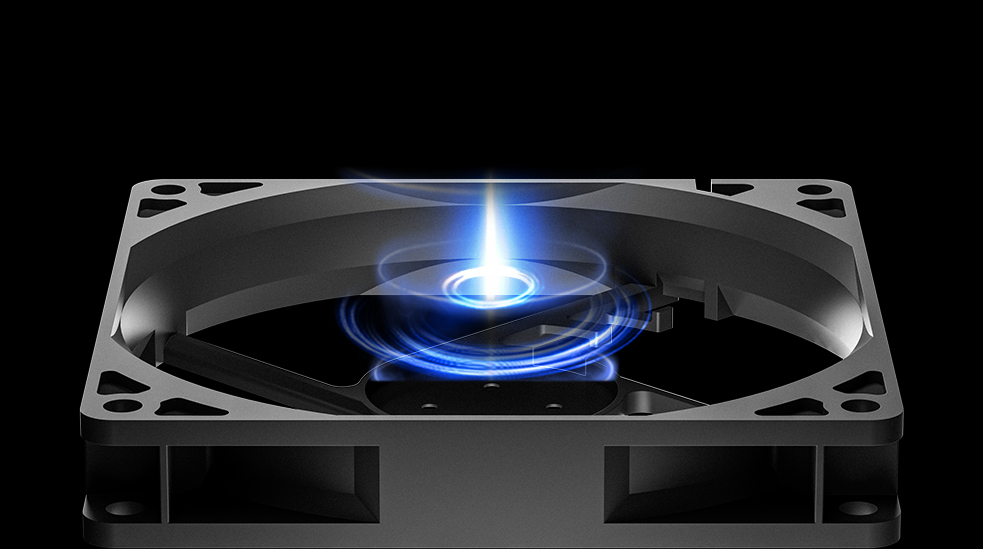

DYNAMIC FDB FAN
The 92 15 mm fan with Fluid Dynamic Bearing (hydrodynamic bearing) together with an aerodynamic design optimized through PCB layout and air resistance analysis ensures excellent operational stability with significantly reduced noise.
EXCEPTIONAL QUALITY
It fully complies with global safety standards and outperforms competing products. It meets the criteria for operating environments with high temperatures and high altitudes, including temperatures of 40C and altitudes of 5000 meters above sea level.
MORE SECURITY
So rest assured, the PS-P has comprehensive protection features such as OPP, OVP, SCP, OTP, OCP, UVP, NLO and SIP.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temp Protection
Over Current Protection
Under Voltage Protection
Surge & Inrush Protection
No Load Operation
WORRY-FREE PROTECTION
The PS-P is manufactured with such meticulous care that GAMER STORM offers an extended, worry-free 7-year warranty. Rest assured, you're well protected should any issues arise during the warranty period.

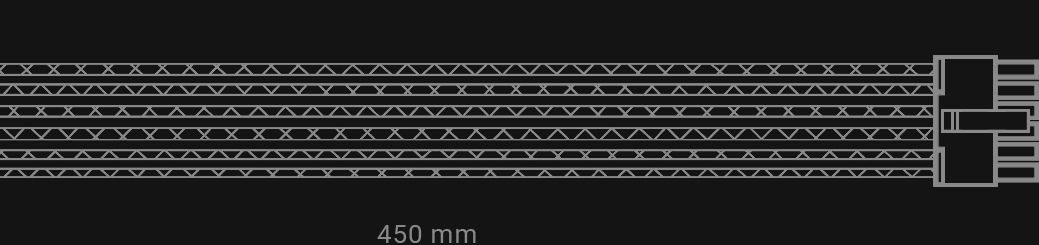

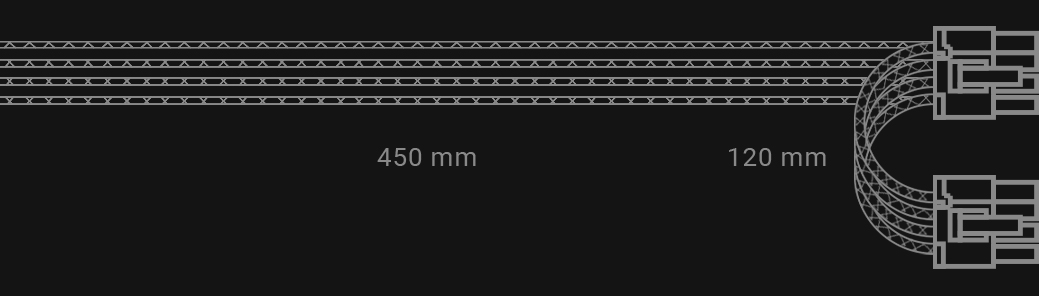

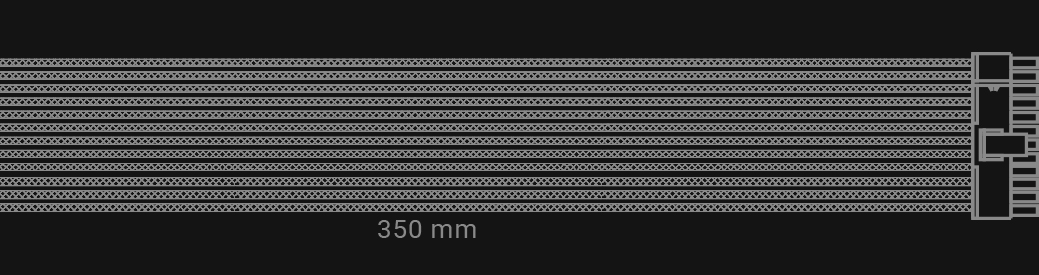

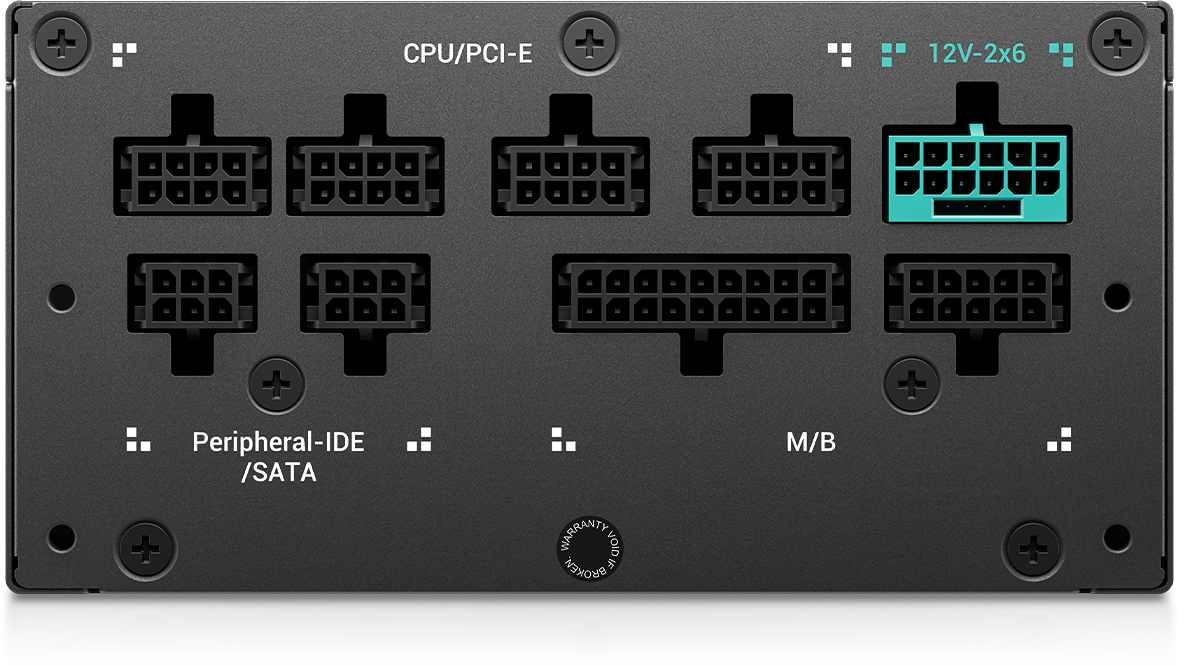

Main Power Connector 24 (20+4)Pin x1
x1

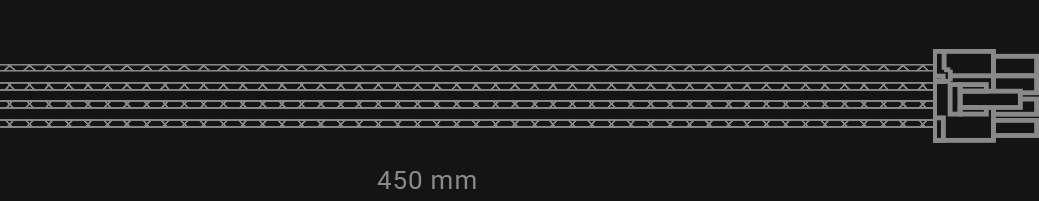

CPU (4+4)Pin x1
x2

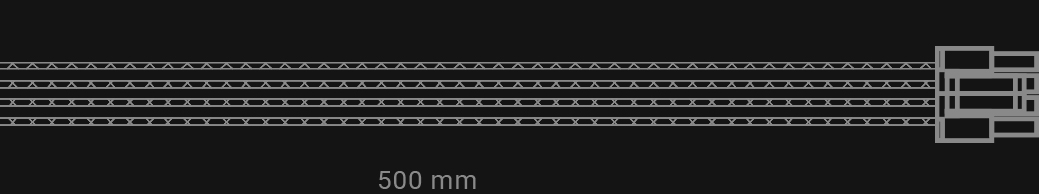

PCI-E (6+2)Pin x1
x1
PCI-E (6+2)Pin x2
x1
12V-2x6 (16Pin) x1
x1

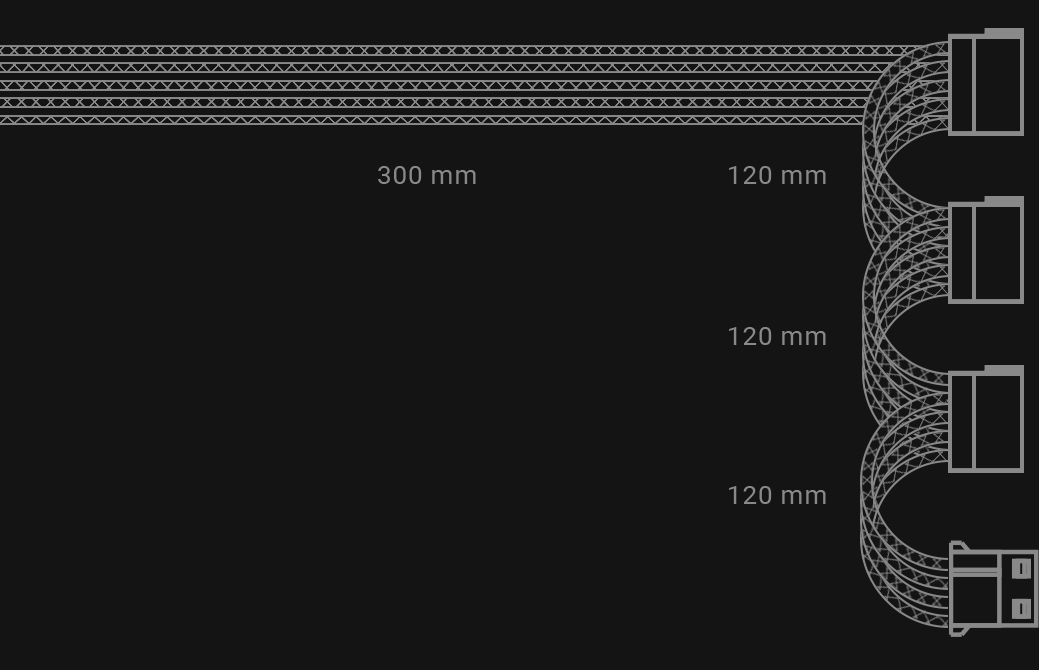

SATA x 3 + 4Pin Peripheral x 1
x2


Technical specifications

ModelPS850P
Model No.PS850P-FE
Total Output850W
typeSFX12V V4.1 & ATX12V V3.1
Product dimensions12510063.5mm (W x L x H)
Efficiency certificationCybenetics Platinum/PPLP 115V Platinum
Size (fan)929215mm (W x L x H)
Fan BearingFDB
TopologyActive PFC + Half Bridge SRC LLC + DC to DC
CapacitorsFull Japanese Electroyltic Capacitors
Power Good Signal100-150ms
Support period16ms 80% load
Efficiency92% Under Typical Load(50% Loading)
fusesOPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operating temperature0~40C
regulationTUV-RH/CCC/CE/RCM/EAC
ERP RegulationErP 2014
Environment safeguardsChugokuRoHS/WEEE/Triman/EAC 037 RoHS
MTBF100,000 Hours
Warranty7 Years

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
