Deepcool PS1000P 1000W Gamer Storm SFX Full Japanese Electroyltic Capacitors Cybenetics Platinum/PPLP 115V Platinum

IMG 1 of 9
Our Price:
$311.20
RRP:
$329.00
You Save:
$17.80
or quickly purchase this product
Backorder
Part Number:
562269
(?) Brand:
Deepcool
Manuf No:
R-PSA00P-FE0B-JGAU
RPSA00PFE0BJGAU
Shipping Weight:
2.36 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
PSDPS1000P, PSD-PS1000P, RPSA00PFE0BJGAU, R-PSA00P-FE0B-JGAU

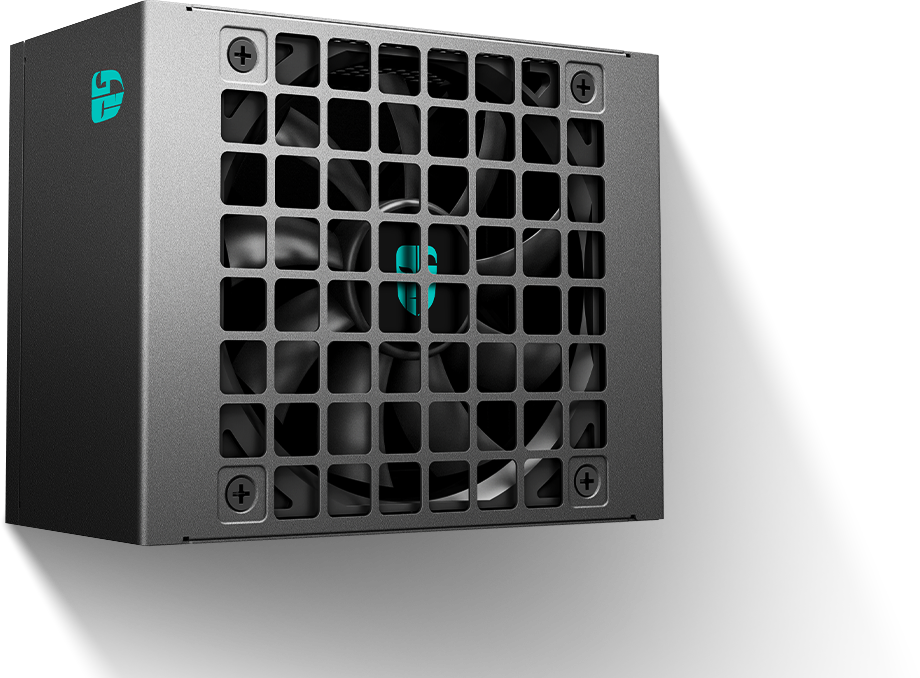

SMALL BUT MIGHTY
The GAMER STORM PS-P is designed for small form factor PCs, fully compliant with the latest Intel ATX 3.1 and PCIe 5.1 standards, and delivers Platinum-level power efficiency.
NATIVE ATX3.1 CERTIFIED

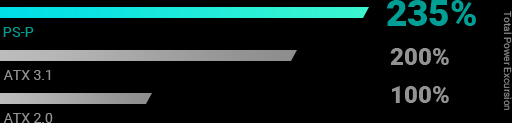

The PS-P Series are officially certified for ATX 3.1 compliance by Cybenetics and PPLP. It can supply up to 235% of the total system power and 300% of the rated power on the 12V-2x6 connector for 0.1 ms, surpassing the requirements established by the Intel ATX 3.1 standard.
TRUST-WORTHY STABILITY

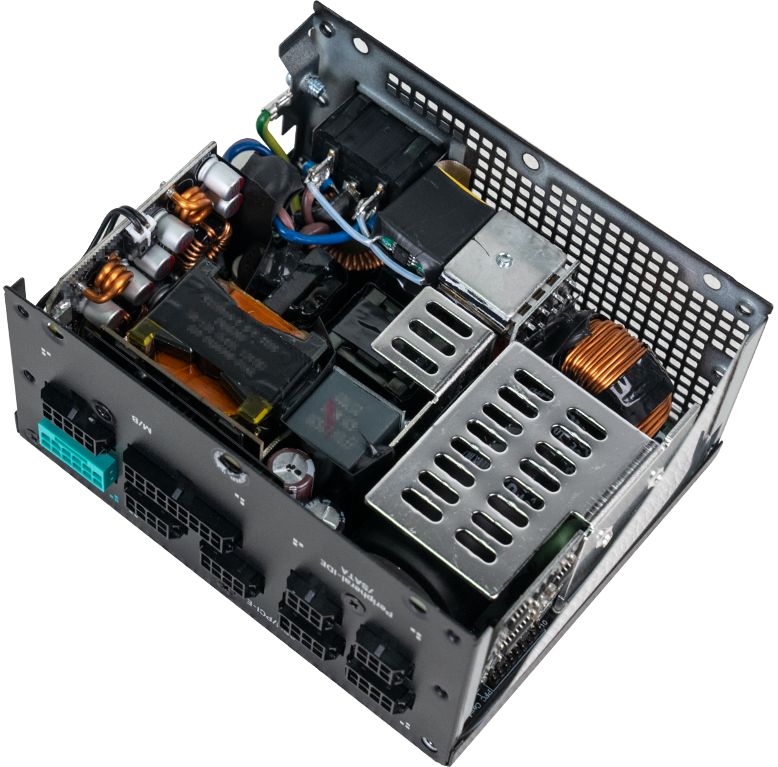

Utilizing full premium Japanese electrolytic capacitors, active PFC, a half-bridge LLC, and DC-to-DC topology, the PS-P maintains a hold-up time 16 ms under 80% load.
THE PLATINUM STANDARD
Certified Platinum by Cybenetics and PPLP, it achieves a high power efficiency of 92% at typical 50% load conditions.
PERFECTION CABLE

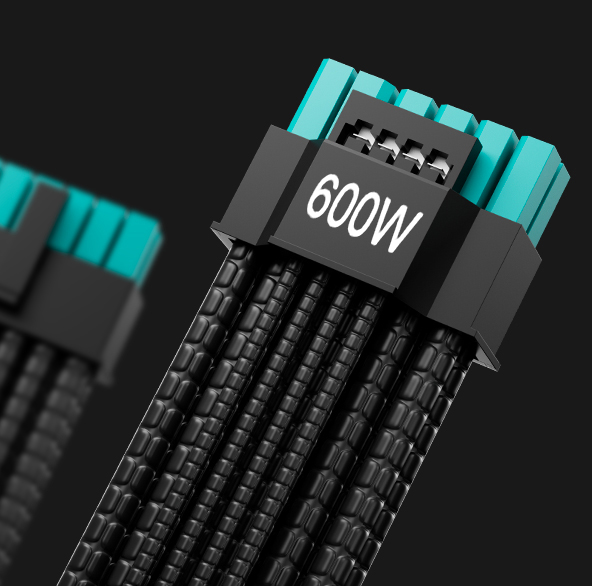

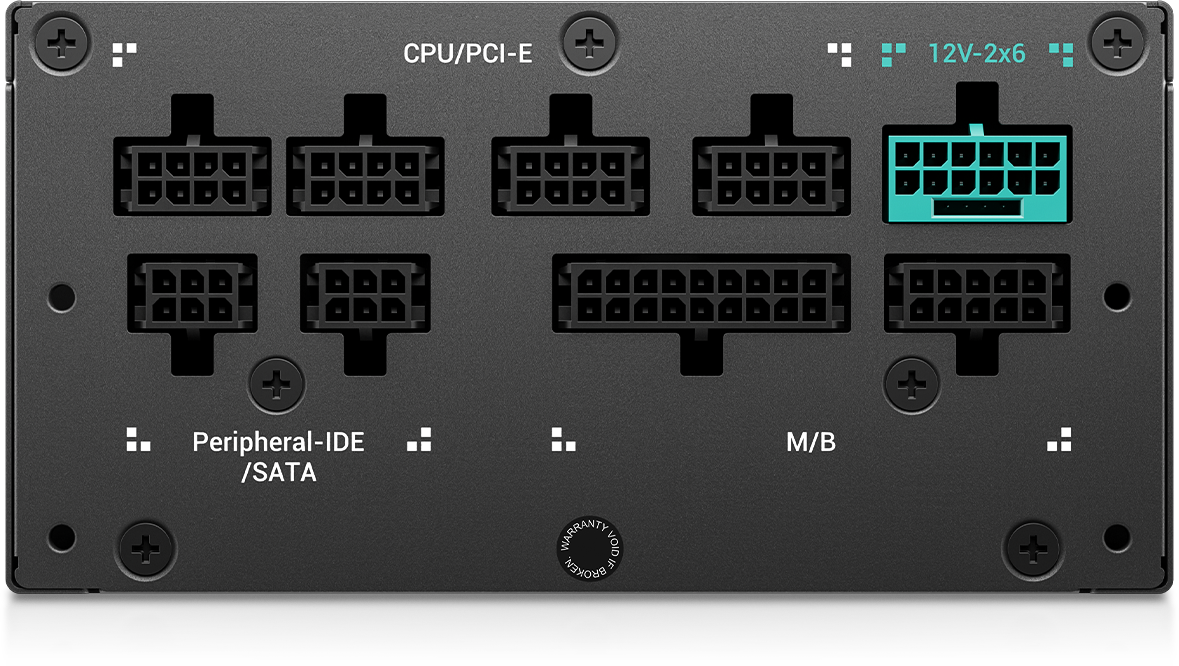

The PS-P features high-quality UL-certified copper-core conductors and custom-molded sleeved cables, providing excellent cable management while adhering to strict safety standards. And the dual-color 12V-26 sockets help users confirm proper installation.

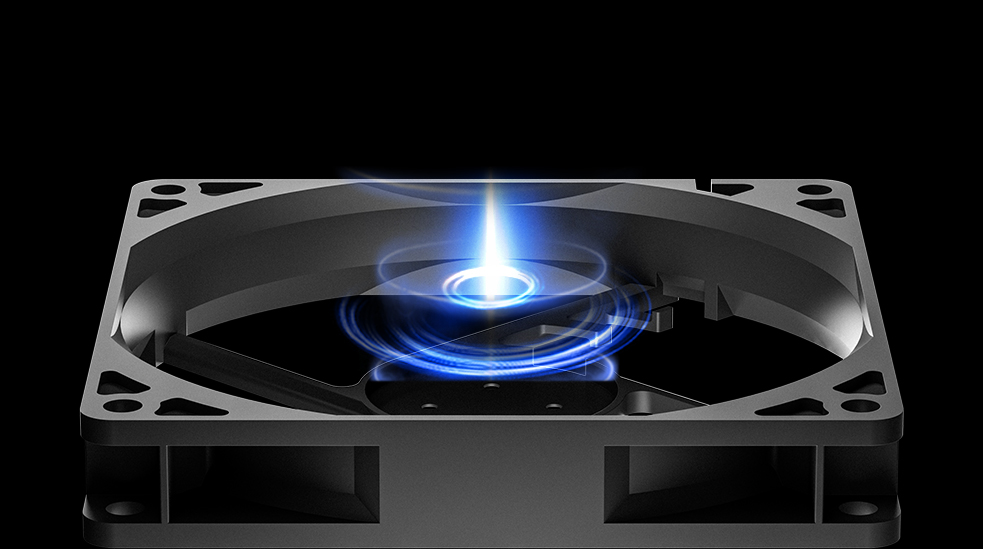

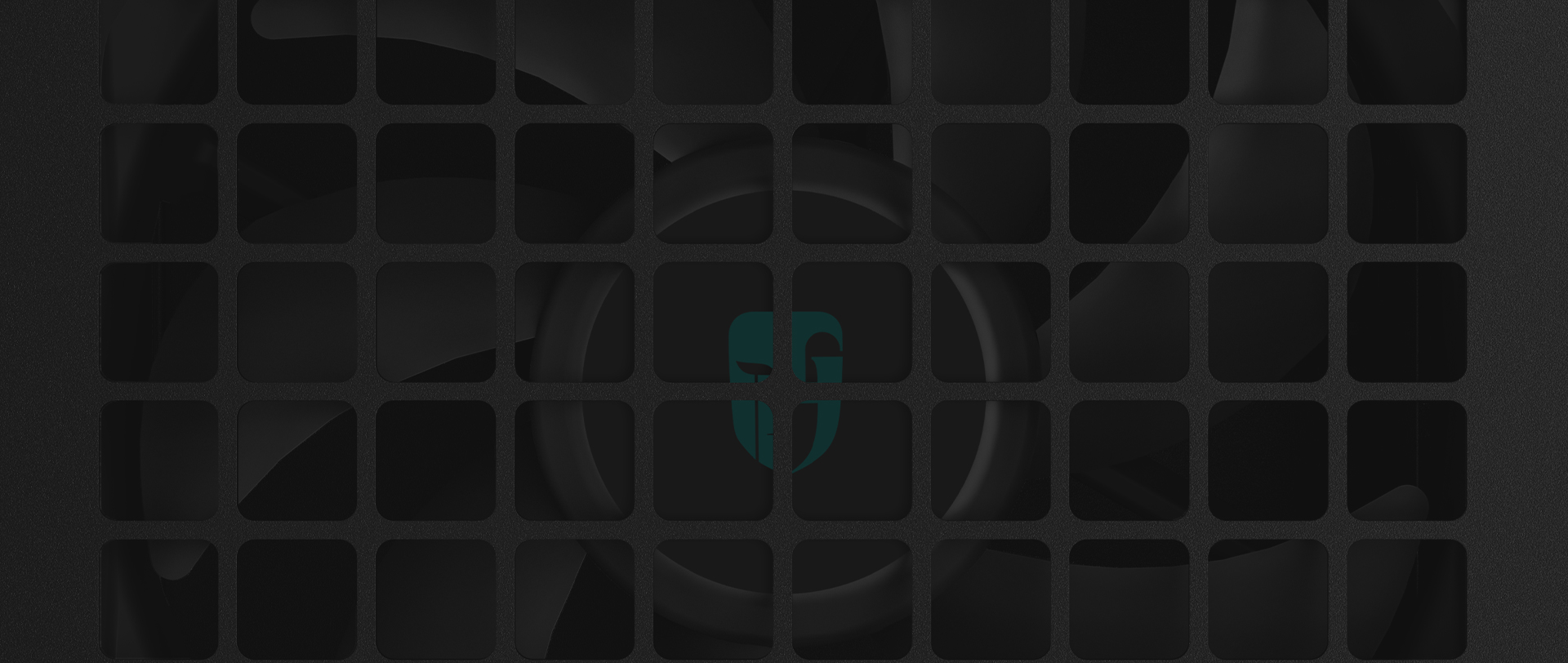

DYNAMIC FDB FAN
The 9215mm Fluid Dynamic Bearing fan, combined with an aerodynamic design optimized through PCB layout and airflow resistance analysis, ensures outstanding operational stability and significantly lowers noise levels.
EXCEPTIONAL QUALITY
Fully complying with global safety standards and surpassing competitors, it meets the criteria for high-temperature and high-altitude environments, including conditions of 40 and 5000 meters above sea level.
PEACE OF MIND
Keep your mind at ease, the PS-P includes comprehensive protection features such as OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temp Protection
Over Current Protection
Under Voltage Protection
Surge & Inrush Protection
No Load Operation
WORRY-FREE COVERAGE
The PS-P is engineered and manufactured at such a meticulous level that GAMER STORM is offering a lengthy 7 years of trouble-free limited warranty coverage. Rest assured that if any problems arise during the coverage period, you will be well taken care of.

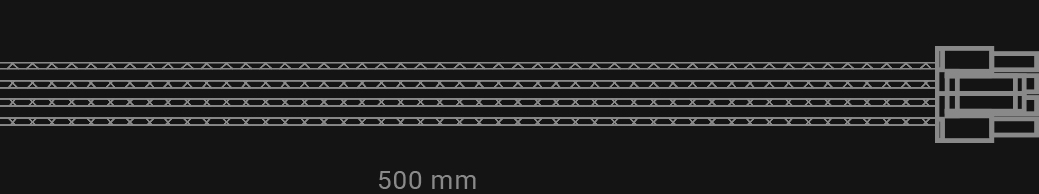

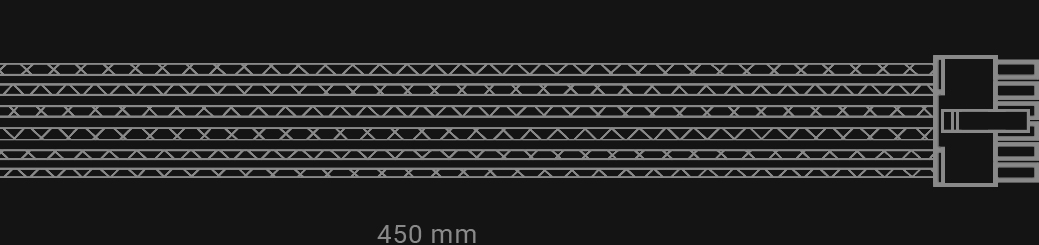

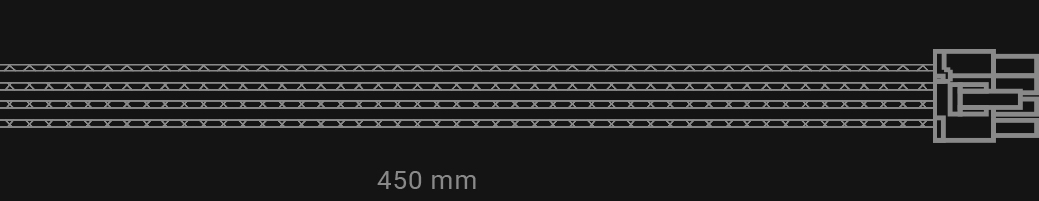

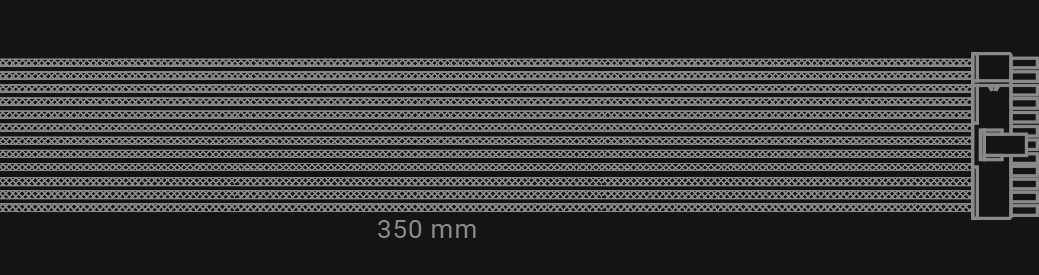

Main Power Connector 24 (20+4)Pin x1
x1
CPU (4+4)Pin x1
x2
PCI-E (6+2)Pin x1
x1

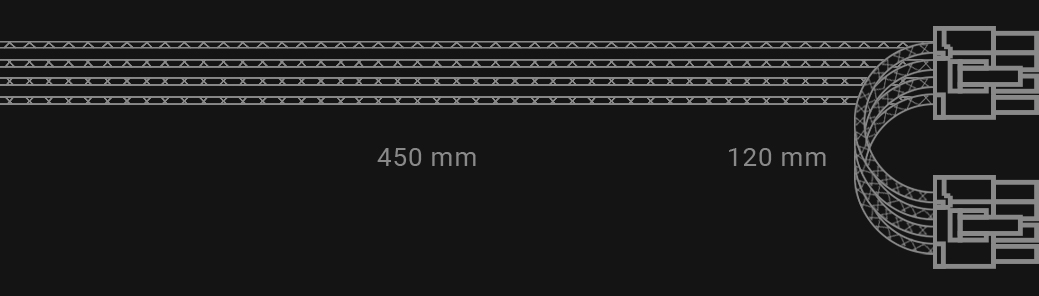

PCI-E (6+2)Pin x2
x1
12V-2x6 (16Pin) x1
x1

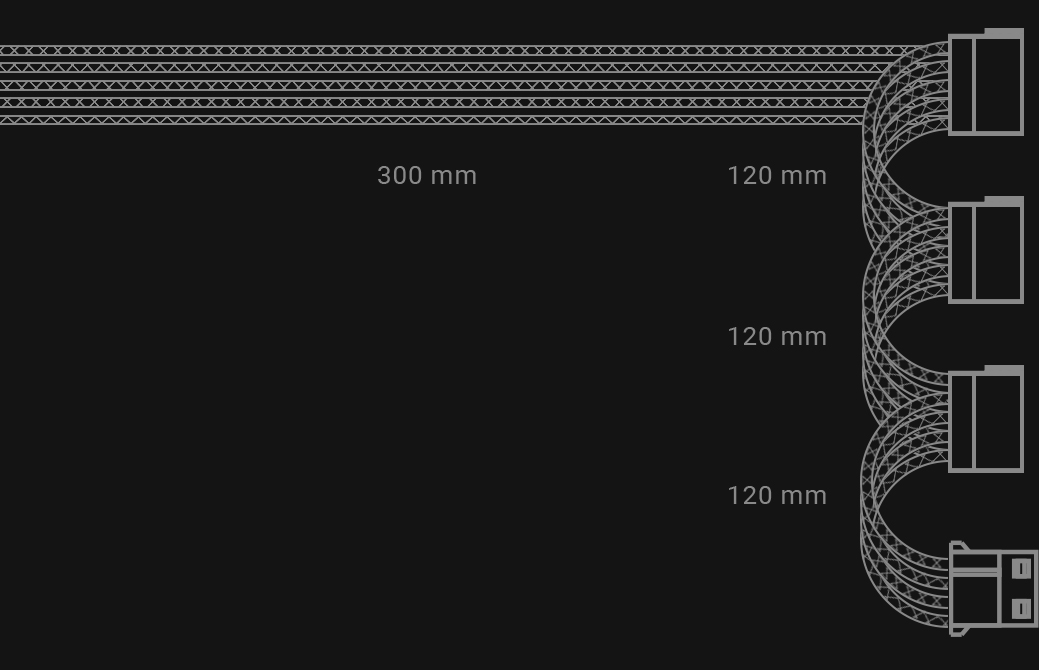

SATA x 3 + 4Pin Peripheral x 1
x2


Technical Spec

ModelPS1000P
Model NoPSA00P-FE
Total Output1000W
TypeSFX12V V4.1 & ATX12V V3.1
Product Dimensions12510063.5mm (W x L x H)
Efficiency certificationCybenetics Platinum/PPLP 115V Platinum
Fan Size929215mm (W x L x H)
Fan BearingFDB
TopologyActive PFC + Half Bridge SRC LLC + DC to DC
CapacitorsFull Japanese Electroyltic Capacitors
Power Good Signal100-150ms
Hold Up Time16ms 80% load
Efficiency92% Under Typical Load(50% Loading)
ProtectionOPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature0~40C
RegulatoryTUV-RH/CCC/CE/RCM/EAC
Erp RegulationErP 2014
Environment ProtectionRoHS/WEEE/Triman/EAC 037 RoHS
MTBF100,000 Hours
Warranty7 Years
