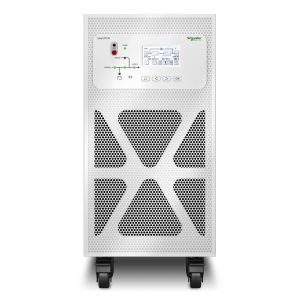

APC Easy UPS 3S 10 kVA 400 V 3;3 UPS for external batteries

Our Price:

$8,671.00

RRP:

~~$10,312.50~~

You Save:

$1,641.50

Qty:

Add To Cart

or quickly purchase this product

Buy Now

Backorder

Part Number:

563033

(?) Brand:

APC Web Site

Manuf No:

E3SUPS10KH

Shipping Weight:

50 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Finance Images & Video

Enter email address to be notified when this item is available again

Join waiting list

All stock codes associated to this product

4252553, 731304339328, E3SUPS10KH

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.

Overview
Presentation	High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.

Main
Main input voltage	400 V AC 3 phases 380 V AC 3 phases 415 V AC 3 phases
Other input voltage	380 V 415 V
Maximum input current	18 A
Input harmonic distortion	Less than 3 % for full load
Load power factor	0.9 leading to 0.9 lagging
Cos phi	0.99
Efficiency at full load	304...477 V
Input frequency	45...65 Hz
Output voltage	400 V AC 3 phases 380 V AC 3 phases 415 V AC 3 phases
Other output voltage	380 V 415 V
Rated power in W	10 kW
Rated power in VA	10 kVA
Bypass type	Built-in maintenance bypass
Crest factor	3 : 1
Harmonic distortion	Less than 3 %
Maximum configurable power in VA	10 kVA
Maximum configurable power in W	10 kW
Output harmonic distortion	< 3% linear load
Output overload operation	10 minutes at 125% and 60 seconds at 150%
UPS topology	Double conversion online
Output frequency	50 Hz sync to mains 60 Hz sync to mains

Graphs
Efficiency	View Efficiency Graph

Complementary
Maximum short-circuit current	10 kA
Battery type	Lead-acid external
UPS connectivity	Optional network management card 3
Color	White (RAL 9003)
Height	53 cm
Width	25 cm
Depth	70 cm
Product weight	36 kg
USB compatible	Yes
Provided equipment	Dust filter Installation guide
Range of product	Easy UPS 3S
Product or component type	Uninterruptible power supply (UPS)

Environment
Product certification	CE EAC RCM
Ambient air temperature for operation	040 C
Ambient air temperature for storage	-1540 C
Storage altitude	014999.8 m
IP protection	IP20
Relative humidity	095 % non-condensing
Storage relative humidity	095 % non-condensing
Acoustic level	60 dBA
Heat dissipation	516 W
Operating altitude	0...3281 ft

Batteries & Runtime
Battery type	External battery system
Included battery module	0
Empty battery slot	0

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	77.2 cm
Package 1 Width	70 cm
Package 1 Length	40 cm
Package 1 Weight	50 kg

Contractual warranty
Warranty (in months)	12
