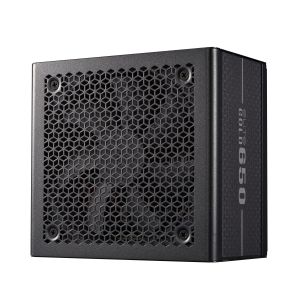

Cooler Master MPX 650W 80+ GOLD, FULLY MODULAR, 12CM FAN, 5YR

IMG 1 of 4
Our Price:
$129.05
RRP:
$140.80
You Save:
$11.75
or quickly purchase this product
Backorder
Part Number:
563249
(?) Brand:
Cooler Master
Manuf No:
MPX-6505-AFAG-BAU
MPX6505AFAGBAU
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
MPX6505AFAGBAU, MPX-6505-AFAG-BAU

Essential Gold Power for Everyday Gaming Builds

Elite Gold 650

Supports ATX 3.1 and PCIe Gen 5.1 standards

Ideal for RTX 50 GPUs

Stable performance under high loads at up to 40C

Quiet rifle bearing fan for efficient cooling and low noise

650W output with 80 Plus Gold-certified efficiency

Fully modular embossed cable design

Reliable 10-year warranty

ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS

Cooler Master Elite Gold 650 is designed for reliable everyday gaming builds. With full ATX 3.1 and PCIe 5.1 support, it ensures stable performance and compatibility with the latest and upcoming mid-range GPUs. Offering 80 Plus Gold efficiency, dependable operation at up to 40C, and a quiet rifle bearing fan, it delivers efficient and quiet power. A compact 140mm form factor makes installation easy across a wide range of cases, while fully modular embossed cables simplify cable management. Backed by a 5-year warranty, the Elite Gold 650 provides lasting confidence and stability for your system.

ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS

HIGH TEMPERATURE RESILIENCE

Operates reliably at up to 40C, perfect for extended gaming, rendering, and overclocking.

Compatible with ATX 3.1 and PCIe Gen 5.1

ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of its rated output, making the Elite Gold 650 ready for the latest and upcoming mid-range GPUs.

*All performance stats confirmed in 25C ambient temperature testing.

RIFLE BEARING FAN

RIFLE BEARING FAN

The rifle bearing fan offers a longer lifespan while providing better noise reduction for consistent, reliable cooling.

*All performance stats confirmed in 25C ambient temperature testing.

80 PLUS GOLD CERTIFIED EFFICIENCY

80 PLUS GOLD CERTIFIED EFFICIENCY

Cooler Master Elite Gold 650 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.

*All performance stats confirmed in 25C ambient temperature testing.

COMPACT FORM FACTOR

COMPACT FORM FACTOR

Unlike typical high-wattage PSUs that extend beyond 150mm, the Elite Golds compact design at 150mm or less ensures easy installation across a wide range of cases, making it ideal for space-conscious PC builds.

Fully Modular Embossed Cable Design

The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.

*All performance stats confirmed in 25C ambient temperature testing.

PSU CALCULATOR

Need help choosing the right power supply for your system?
Try out our comprehensive and easy-to-use PSU calculator.

PSU CALCULATOR

Specifications

  • Product NameELITE GOLD 650
  • ModelMPX-6505-AFAG
  • ATX VersionATX 12V Ver. 3.1
  • PFCActive PFC
  • Input Voltage100-240V
  • Input Current5 ~ 10A
  • Input Frequency50-60Hz
  • Dimensions (L x W x H)140 x 150 x 86 mm
  • Fan Size120mm
  • Fan BearingRifle bearing
  • Efficiency90% @ Typical Load
  • 80 PLUS Rating80 PLUS Gold
  • ErP 2014 Lot 3Yes
  • Operating Temperature0-40C
  • Power Good Signal100 - 150 ms
  • Hold Up Time 11ms @ 100% Load
  • MTBF>100,000 hours @ 25 ambient
  • ProtectionsUVP / OVP / OPP / OTP / SCP
  • RegulatorycTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0
  • ATX 24 Pin Connectorsx1 = 1 (550mm)
  • EPS 4+4 Pin / EPS 8 Pin Connectorsx2 = 1 (600+120mm)
  • SATA &Peripheral 4 Pin ConnectorsX4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]
  • PCI-e 6+2 Pin Connectorsx2 = 1 (500+120mm)
  • 12+4 Pin Connectorsx1 = 1 (650mm)
  • SeriesElite Series
  • Form FactorATX
  • Watts650W
  • ModularFully Modular
  • 80 Plus EfficiencyGold
  • Warranty10 Years
