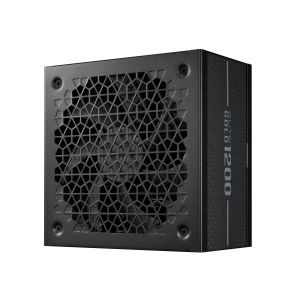

Cooler Master ELITE GOLD 1200W, FULLY MODULAR CABLE DESIGN, 80+, 5YR

IMG 1 of 4
Our Price:
$237.80
RRP:
$251.90
You Save:
$14.10
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
563252
(?) Brand:
Cooler Master
Manuf No:
MPW-C001-AFAG-BAU
MPWC001AFAGBAU
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
MPWC001AFAGBAU, MPW-C001-AFAG-BAU
HIGH-POWER GOLD PERFORMANCE FOR GAMING AND WORKSTATIONS

Cooler Master Elite Gold 1200 powers high-end gaming rigs and professional systems with ATX 3.1 support - ideal for RTX 50 GPUs. It offers 80 Plus Gold efficiency, reliable operation up to 40C, quiet FDB cooling, embossed modular cables, dual EPS connectors, and a 5-year warranty for dependable, high-load performance.

HIGH-POWER GOLD PERFORMANCE FOR GAMING AND WORKSTATIONS

High Temperature Resilience

Operates reliably at up to 40C, making it ideal for extended gaming sessions, professional rendering, and sustained high-load workloadsall without sacrificing stability or efficiency.

Compatible with ATX 3.1 and PCIe Gen 5.1 standards

ATX 3.1 provides tighter voltage and current regulation, supporting up to 200% peak power. The Elite Gold 1200 meets full ATX 3.1 specs and supports PCIe Gen 5.1 for stable next-gen performance with RTX 50 GPUs and future high-power cards.

*All performance stats confirmed in 25C ambient temperature testing.

QUIET FDB FAN

QUIET FDB FAN

Fluid Dynamic Bearing fan ensures long-lasting, stable, and quiet cooling. Fan speed adjusts automatically based on power and stops when the system is idle or under low load (below 30%).

*All performance stats confirmed in 25C ambient temperature testing.

80 PLUS GOLD CERTIFIED EFFICIENCY

80 PLUS GOLD CERTIFIED EFFICIENCY

Cooler Master Elite Gold 1200 achieves over 90% efficiency at typical loads, reducing energy waste and heat output.

*All performance stats confirmed in 25C ambient temperature testing.

Fully Modular Embossed Cable Design

The fully modular design comes with flat black cables that can be tailored to each build, offering improved grip and a premium look for easier management and a cleaner overall setup.

*All performance stats confirmed in 25C ambient temperature testing.

PSU CALCULATOR

Need help choosing the right power supply for your system?
Try out our comprehensive and easy-to-use PSU calculator.

PSU CALCULATOR

Specifications

  • Product NameELITE GOLD 1200
  • ModelMPW-C001-AFAG
  • ATX VersionATX 12V Ver. 3.1
  • PFCActive PFC
  • Input Voltage100-240V
  • Input Current7.5 ~ 15A
  • Input Frequency50-60Hz
  • Dimensions (L x W x H)150 x 150 x 86 mm
  • Fan Size135mm
  • Fan BearingFDB
  • Efficiency90% @ Typical Load
  • 80 PLUS Rating80 PLUS Gold
  • ErP 2014 Lot 3Yes
  • Operating Temperature0-40C
  • Power Good Signal100 - 150 ms
  • Hold Up Time16ms at 80% Load
  • MTBF>100,000 hours @ 25 ambient
  • ProtectionsUVP / OVP / OPP / OTP / SCP
  • RegulatorycTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH
  • ATX 24 Pin Connectorsx1 = 1 (600mm)
  • EPS 4+4 Pin Connectorsx2 = 2 (700mm)
  • SATA Connectorsx9 = 3 (500+100+100mm)
  • Peripheral 4 Pin Connectorsx3 = 1 (500+100+100mm)
  • PCI-e 6+2 Pin Connectorsx6 = 3 (550+120mm)
  • 12+4 Pin Connectorsx1 = 1 (600mm)
  • SeriesElite Series
  • Form FactorATX
  • Watts1200W
  • ModularFully Modular
  • 80 Plus EfficiencyGold
  • Warranty10 Years
