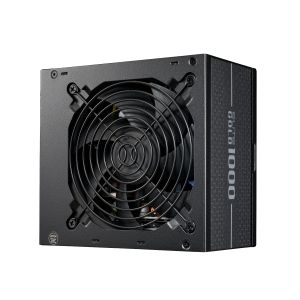

Cooler Master ELITE GOLD 1000W, FULLY MODULAR CABLE DESIGN, 80+, 5YR

IMG 1 of 4
Our Price:
$160.65
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
563253
(?) Brand:
Cooler Master
Manuf No:
MPW-A001-AFAG-BAU
MPWA001AFAGBAU
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
MPWA001AFAGBAU, MPW-A001-AFAG-BAU
ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS

Cooler Master Elite Gold 1000 is designed for everyday gaming and first-time builds. With full ATX 3.1 compliance support, it's ready for RTX 50 GPUs and future upgrades. Enjoy 80 Plus Gold efficiency, reliable up to 40C operation, and quiet FDB fan cooling. Fully modular embossed cables simplify installation, dual EPS connectors provide wide compatibility, and a 5-year warranty ensures long-term confidence and reliability.

ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS

High Temperature Resilience

Operates reliably at up to 40C, perfect for extended gaming, rendering, and overclocking.

COMPATIBLE WITH ATX 3.1 AND PCIE GEN 5.1

ATX 3.1 delivers tighter voltage and current regulation with peak power support up to 200% of rated output. Elite Gold 1000 meets the full spec and supports PCIe Gen 5.1 for stable, next-gen performance with RTX 50 GPUs and future high-power cards.

*All performance stats confirmed in 25C ambient temperature testing.

QUIET FDB FAN

QUIET FDB FAN

The Fluid Dynamic Bearing (FDB) fan delivers stable, long-lasting, and whisper-quiet cooling performance.

*All performance stats confirmed in 25C ambient temperature testing.

80 PLUS GOLD CERTIFIED EFFICIENCY

80 PLUS GOLD CERTIFIED EFFICIENCY

Cooler Master Elite Gold 1000 achieves over 90% efficiency at typical loads, helping reduce energy waste and minimize heat generation.

*All performance stats confirmed in 25C ambient temperature testing.

Fully Modular Embossed Cable Design

The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.

*All performance stats confirmed in 25C ambient temperature testing.

PSU CALCULATOR

Need help choosing the right power supply for your system?
Try out our comprehensive and easy-to-use PSU calculator.

PSU CALCULATOR

Specifications

  • Product NameELITE GOLD 1000
  • ModelMPW-A001-AFAG
  • ATX VersionATX 12V Ver. 3.1
  • PFCActive PFC
  • Input Voltage100-240V
  • Input Current6 ~ 12A
  • Input Frequency50-60Hz
  • Dimensions (L x W x H)140 x 150 x 86 mm
  • Fan Size120mm
  • Fan BearingFDB
  • Efficiency90% @ Typical Load
  • 80 PLUS Rating80 PLUS Gold
  • ErP 2014 Lot 3Yes
  • Operating Temperature0-40C
  • Power Good Signal100 - 150 ms
  • Hold Up Time16ms at 80% Load
  • MTBF>100,000 hours @ 25 ambient
  • ProtectionsUVP / OVP / OPP / OTP / SCP
  • RegulatorycTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH
  • ATX 24 Pin Connectorsx1 = 1 (600mm)
  • EPS 4+4 Pin Connectorsx2 = 2 (700mm)
  • SATA Connectorsx9 = 3 (500+100+100mm)
  • Peripheral 4 Pin Connectorsx3 = 1 (500+100+100mm)
  • PCI-e 6+2 Pin Connectorsx6 = 3 (550+120mm)
  • 12+4 Pin Connectorsx1 = 1 (600mm)
  • SeriesElite Series
  • Form FactorATX
  • Watts1000W
  • ModularFully Modular
  • 80 Plus EfficiencyGold
  • Warranty10 Years

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
