IMG 1 of 4
Our Price:
$292.20
RRP:
$402.60
You Save:
$110.40
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days

Part Number:
563255
(?) Brand:
Manuf No:
MPE-C501-AFCAG-3EAU
MPEC501AFCAG3EAU
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
MPEC501AFCAG3EAU, MPE-C501-AFCAG-3EAU

100% ATX 3.1 Compatible

Cooler Master took the initiative and continuously developing our first ATX 3.1 Power Supply lineup. Compliant with ATX 3.1 standard and 12V-2x6 connectors, the MWE Gold 1050/1250 V2 ATX 3.1 can fully support the peak power drawn by the 40 series RTX graphic cards and whole system.

80 PLUS Gold Certified

80 PLUS Gold Certified

Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold 1050/1250 V2 ATX 3.1 features 80 PLUS Gold certification, guaranteeing 90% efficiency at typical load.

Quiet Cooling

Quiet Cooling

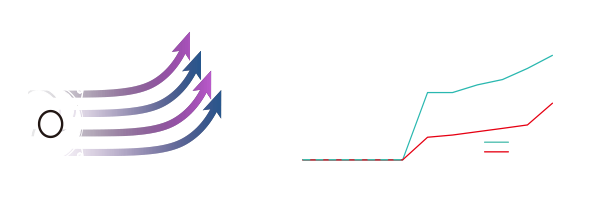

The MWE Gold 1050/1250 V2 ATX 3.1 has been optimized with an 140mm fan along with an advanced fluid-dynamic bearing (FDB) delivers quiet and effective cooling with a long lifespan. With Smart Thermal Control System (STCM), the fan will not spin until at 40% of rated output power to reduce noise.


*The fan curve is tested under ambient temperature of 25 degrees Celsius and core temperature is related to load.

Industrial-grade Temperature Resilience

Industrial-grade Temperature Resilience

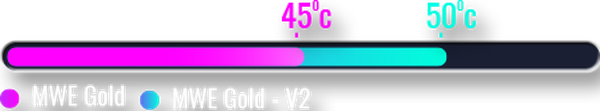

The MWE Gold 1050/1250 V2 ATX 3.1 has improved to operate safely at up to 50 degrees Celsius ambient for high-end computer, overclocking and other high intensity applications. Such a high threshold greatly enhances the performance of your PSU and your system.

Fully Modular Cabling

Fully Modular Cabling

The fully modular version of the MWE Gold 1050/1250 V2 ATX 3.1 comes with a set of flat black cables that can be customized to each user's individual needs. It's designed for easy cable management that each system only needs to include the cables required. This unused space within the chassis allows for reduced clutter, better airflow and aesthetic, thereby improving your system's overall cooling.

PSU Calculator

Need help choosing the right power supply for your system? Try out our easy to use, comprehensive PSU calculator.

PSU Calculator

Specifications

  • ModelMPE-C501-AFCAG-3E**
  • ATX VersionATX Rev. 3.1
  • PFCActive PFC
  • Input Voltage100-240V
  • Input Current15-7A
  • Input Frequency50-60Hz
  • Dimensions (L x W x H)180 x 150 x 86 mm
  • Fan Size140mm
  • Fan BearingTwo Ball Bearing
  • Efficiency90% @ Typical Load
  • 80 PLUS Rating80 PLUS Gold
  • ErP 2014 Lot 3Yes
  • Operating Temperature0-50C
  • Power Good Signal100 - 150 ms
  • Hold Up Time16ms at 100% Load
  • MTBF>100,000 Hours
  • ProtectionsOVP / OPP / SCP / OCP / UVP / OTP / Inrush Protection
  • RegulatoryTUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS
  • ATX 24 Pin Connectors1
  • EPS 4+4 Pin Connectors1
  • EPS 8 Pin Connector1
  • SATA Connectors12
  • Peripheral 4 Pin Connectors4
  • PCI-e 6+2 Pin Connectors3
  • 12V-2x6 Connectors1
  • SeriesMWE Gold Series
  • CategoryAbove 750W
  • ModularFully Modular
  • 80 Plus EfficiencyGold
  • Form FactorATX
  • Watts1250W

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
