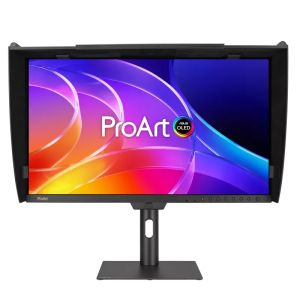

| Model | ProArt Display OLED PA32USD |
| Display | Panel Size (inch) : 31.5 Pixels Per Inch (PPI) : 140 Aspect Ratio : 16:9 Display Viewing Area (H x V) : 699.48 x 394.73 mm Display Surface : Anti-Reflection Panel Type : QD-OLED Viewing Angle (CR10, H/V) : 178/ 178 Pixel Pitch : 0.182mm Resolution : 3840x2160 Color Space (sRGB) : 100% Color Space (DCI-P3) : 99% Brightness (HDR, Peak) : 1,000 cd/ Brightness (Typ.) : 250cd/ Contrast Ratio (HDR, Max) : 1,500,000:1 Contrast Ratio (Typ.) : 1,500,000:1 Display Colors : 1073.7M (10 bit) Response Time : 0.1ms(GTG) Refresh Rate (Max) : 240Hz HDR (High Dynamic Range) Support : Dolby Vision HLG HDR10 Flicker-free : Yes ASUS OLED Care : Yes LCD ZBD Warranty : Yes(3 yr) |
| Features | ProArt Preset : CAL 3 CAL 2 CAL 1 Dolby Vision HDR_HLG_P3 HDR_HLG_BT.2020 HDR_PQ_BT.2020 HDR_PQ_P3 Rec.709 DICOM BT.2020 P3 Adobe RGB sRGB Native Color Temp. Selection : Yes (5000K, 5500K, 6500K, 7500K, 9300K, 12000K) Color Adjustment : RGB Tuning (Gain / Offset) Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6) Auto Rotation:Yes, supported by DisplayWidget Center Color Accuracy : E< 1 ASUS ProArt Hardware Calibration : Yes ProArt Palette : Yes QuickFit Plus : Yes PIP / PBP Technology : Yes HDCP : Yes, 2.3 VRR Technology : Yes (Adaptive-Sync) HDR Preview : Yes DisplayWidget : Yes, DisplayWidget Center Low Blue Light : Yes Multiple HDR Mode : Yes KVM Switch : Yes ASUS Power Sync : Yes |
| Audio | Speaker : Yes(3Wx2) |
| I/O Ports | 12G-SDI x 2 Thunderbolt 4 x 2 (Daisy Chain) DisplayPort 2.1 x 1 HDMI(v2.1) x 1 (FRL) USB Hub : 1x USB 3.2 Gen 2 Type-C 2x USB 3.2 Gen 2 Type-A Earphone Jack : Yes USB-C Power Delivery : 96W USB 3.2 (Signal) : x 1 USB Type-C (For KVM Switch) |
| Signal Frequency | Digital Signal Frequency : HDMI: 15~583 KHz (H) / 48~240 Hz (V) DisplayPort, Thunderbolt USB-C: 15~583 KHz (H) / 48~240 Hz (V) |
| Power Consumption | Power Consumption : <50W Power Saving Mode : <0.5W Power Off Mode : 0W (hard switch) Voltage : 100-240V, 50/60Hz |
| Mechanical Design | Tilt : Yes (+23 ~ -5) Swivel : Yes (+30 ~ -30) Pivot : Yes (+90 ~ -90) Height Adjustment : 0~130mm Ambient Light Sensor : Yes Proximity Sensor : Yes VESA Wall Mounting : 100x100mm Kensington Lock : Yes |
| Dimensions (Esti ) | Phys. Dimension (W x H x D) : 71.83 x 61.58 x 23.97 cm (28.28" x 24.24" x 9.44") Phys. Dimension without Stand (W x H x D) : 71.83 x 44.01 x 5.96 cm (28.28" x 17.33" x 2.35") Box Dimension (W x H x D) : 90.00 x 68.50 x 22.50 cm (35.43" x 26.97" x 8.86") |
| Weight (Esti ) | Net Weight : 9.08 kg (20.02 lbs) Net Weight without Stand : 6.54 kg (14.42 lbs) Gross Weight : 17.03 kg (37.54 lbs) |
| Accessories (vary by regions) | regions) Warranty Card USB-C to A cable USB-C cable Thunderbolt 4 Cable Quick start guide Power cord Monitor hood Mini Stand L-shaped Screwdriver HDMI Ultra High Speed Cable Ergonomic Stand DisplayPort 2.1 (DP80) cable Color pre-calibration report Cable Clip |
| Certificate | Mac Compliance FSC MIX Calman Ready VESA DisplayHDR 400 True Black TV Low Blue Light TV Flicker-free EPEAT Silver Energy Star |
| Warranty | 3 years (including panel burn-in) |
| Note | Phys. Dimension with Mini Stand (W H D) : 71.83 x 48.29 x 16.28 cm (28.28 x 19.00 x 6.41) Net Weight with Mini Stand : 6.96 kg (15.35 lbs) |
