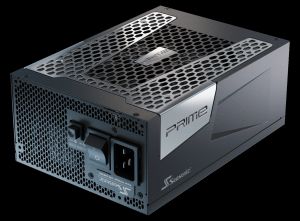

Seasonic 2200W Prime PX-2200 Fully-Modular 80 PLUS PLATINUM ATX3.1/PCIe 5.1 PSU

Our Price:

$1,005.70

Qty:

Add To Cart

or quickly purchase this product

Buy Now

Backorder

Part Number:

565148

(?) Brand:

Seasonic

Manuf No:

PSUSEAPX2200A31

Shipping Weight:

4 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Finance Images & Video

Enter email address to be notified when this item is available again

Join waiting list

All stock codes associated to this product

4.71117E+12, PSUSEAPX2200A3, PSUSEAPX2200A31

PRIME PX ATX 3.1
When selecting a power supply, it's crucial to estimate the required power for both current and future components in your system. The Seasonic PRIME PX-2200 is a robust power supply capable of safely powering up to four RTX 4090 graphics cards, thanks to its adherence to ATX 3.1 and PCIe 5.1 specifications. Designed for demanding applications such as artificial intelligence and other high-power workloads, this flagship unit from the PRIME series delivers top-tier performance built on high-quality components.

SPECIFICATIONS

Technical Specifications
80PLUS ®		Platinum
Cybenetics Efficiency Level		TBA
Cybenetics Noise Level		TBA
Form Factor		ATX/EPS
Fan Information	Fan Size	135 mm
	Fan Control	Digital Hybrid Fan Control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Individual Black Cables with Braided Pattern
Electrical Features	Operating Temperature	0 - 50 °C
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Fixed 230 V
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		12 Years

Power Output
AC Input	Voltage: 200 V - 240 V
	Current: 15 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	25 A	25 A	183.3 A	0.5 A	3 A
		125 W		2200 W	6 W	15 W
	Total continuous power	2200 W

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
