MSI PRO A1000PL PCIE5 - 80+ Platinum 1000W Full Modular ATX3.1 PCIE5.1 7y Warranty Embossed Cables Low Noise

IMG 1 of 4
Our Price:
$213.75
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
565505
(?) Brand:
MSI Web Site
Manuf No:
PRO A1000PL PCIE5
Shipping Weight:
2.7 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
6775743, PRO A1000PL PCIE5

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

msi PRO Power Supply
atx3.1 icon

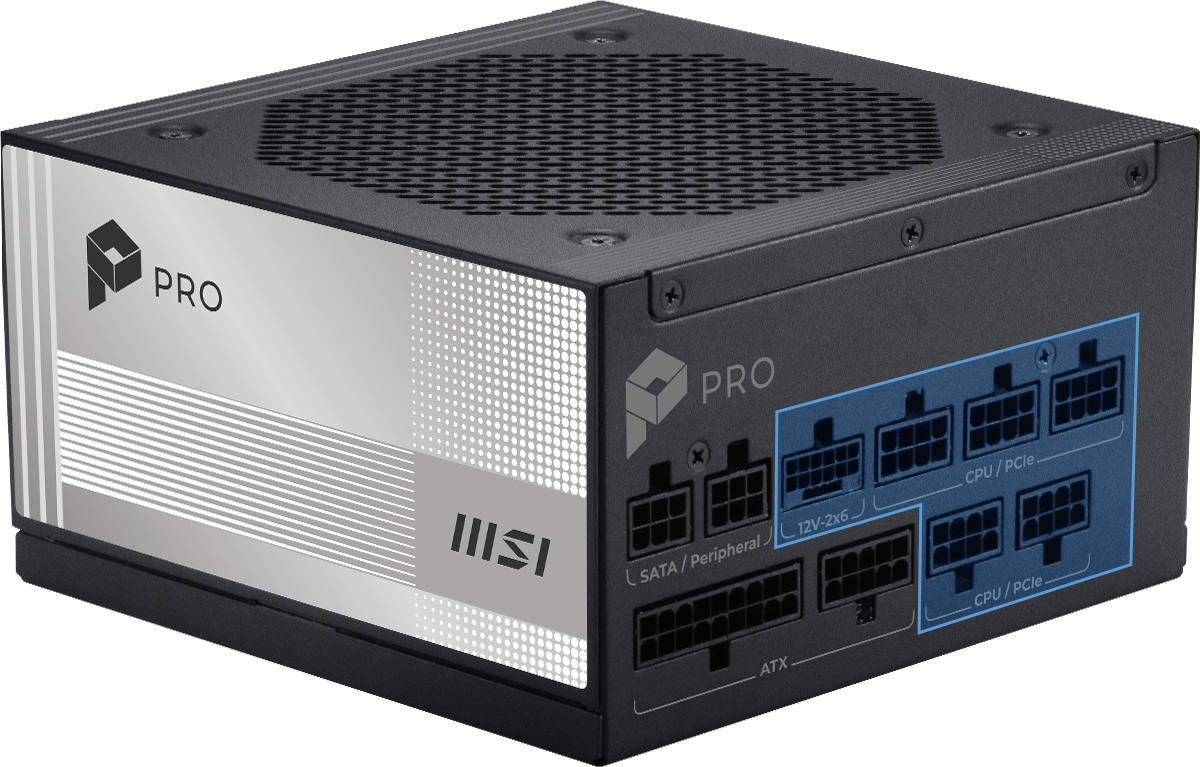

Ultimate Proof PSU

It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

ATX3.1 IMG01
ATX3.1 IMG02

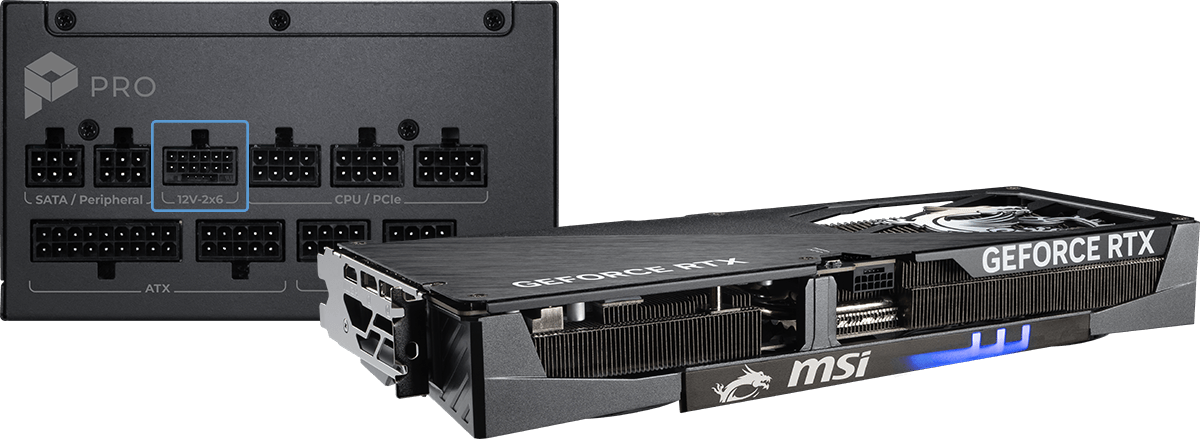

Reliable Connector Design

The power supply features the 12V-2x6 (H++) connector, design with an optimized structure that complies with the PCIe CEM 5.1standard. The ensures enhanced reliability and safety. It is capable of delivering up to 600W of power, making it suitable for even the most demanding high-end graphics cards.

PCIe 5.1 icon
Reliable Connector Design

GPU compatibility

Versatile ways of connection according to the power connector design of different graphics cards.

1

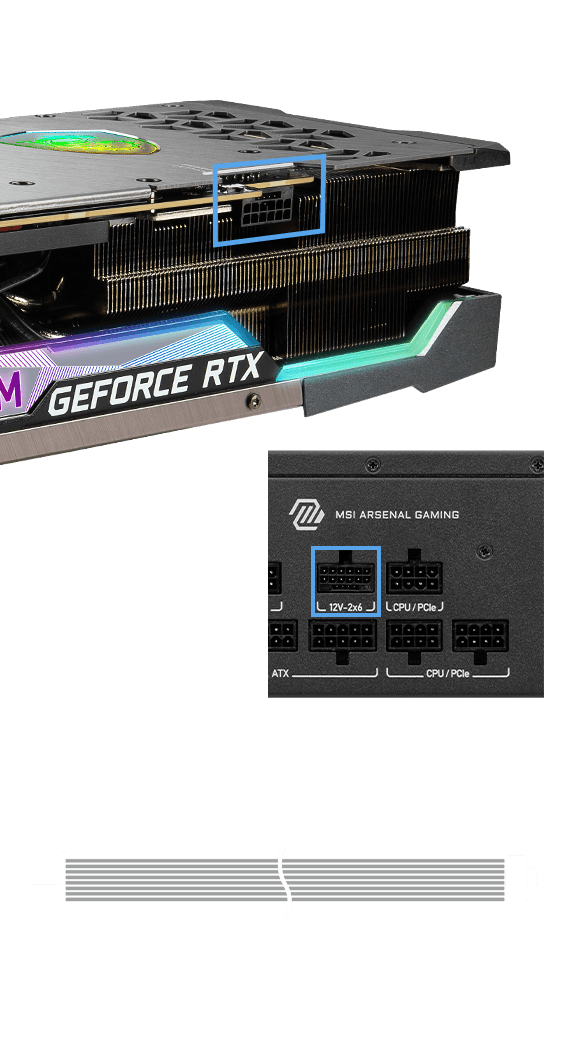

1 x 16-pin VGA Power Connector

1x 16-pin
VGA Power Connector

2

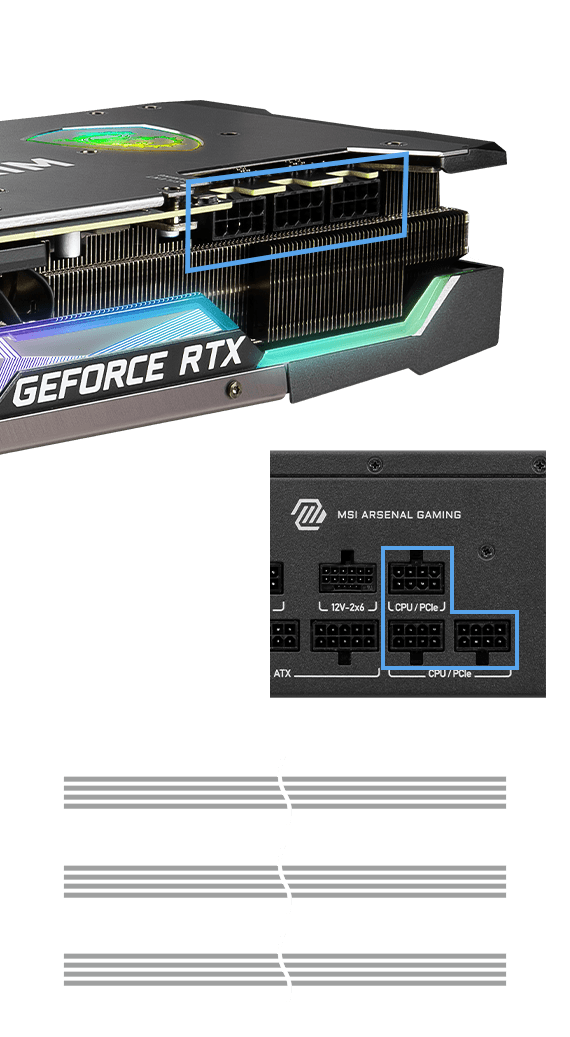

3 x 8-pin VGA Power Connector

3x 8-pin
VGA Power Connector

3

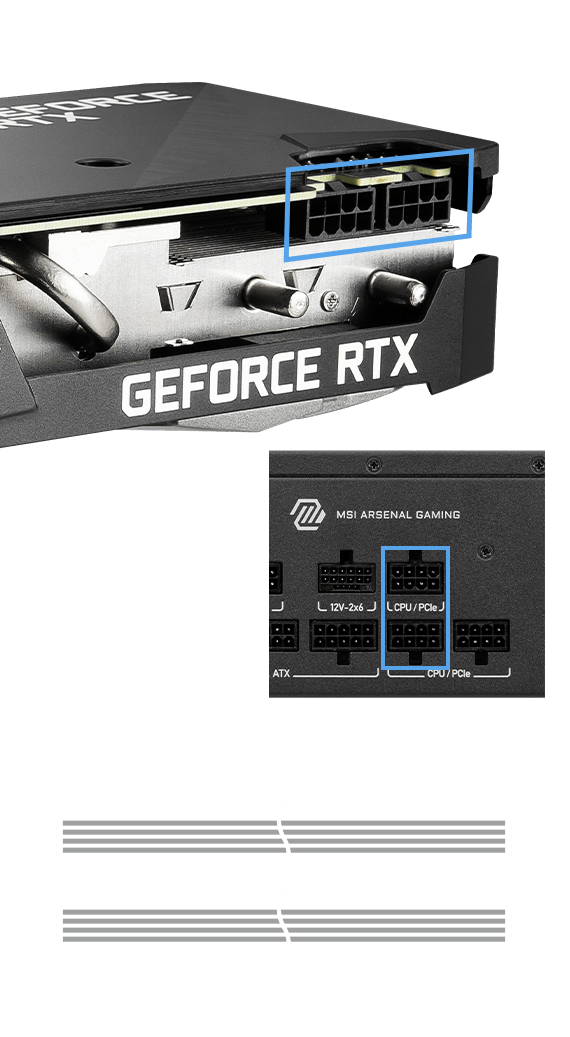

2 x 8-pin VGA Power Connector

2x 8-pin
VGA Power Connector

4

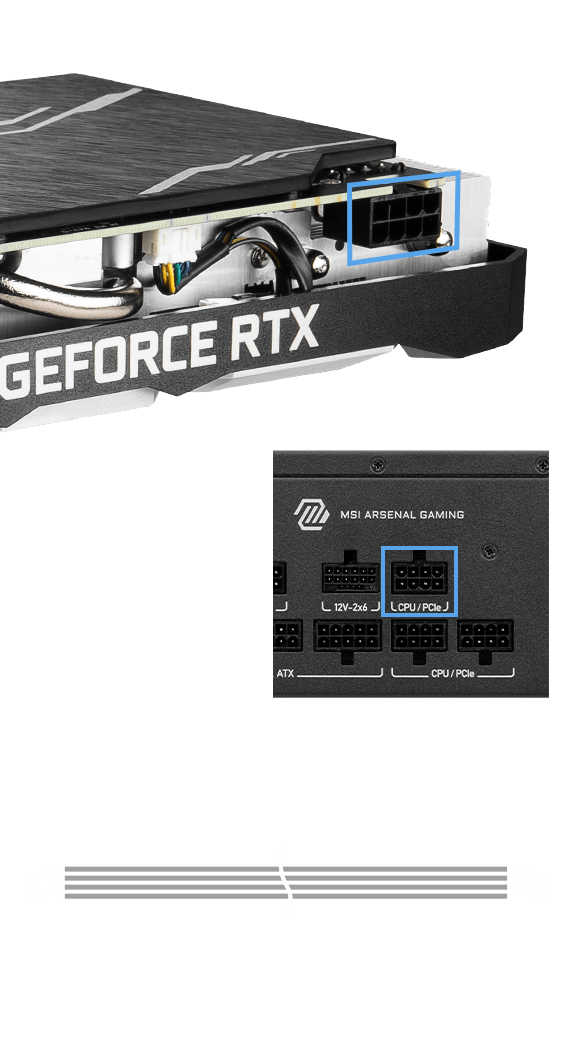

1 x 8-pin VGA Power Connector

1x 8-pin
VGA Power Connector

Platinum Efficiency Certification icons

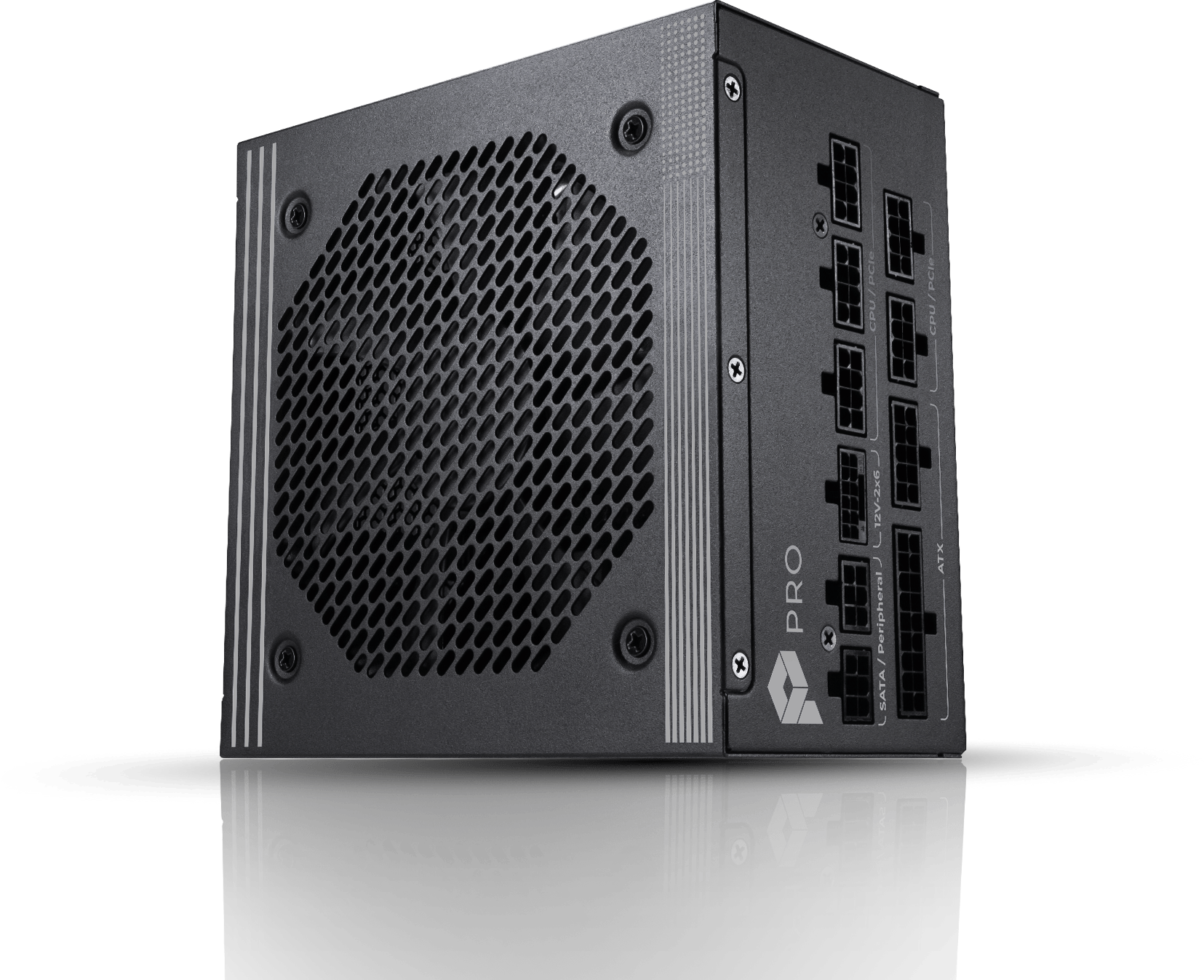

Platinum Efficiency Certification

The efficiency of your power supply significantly impacts overall power consumption. The Platinum certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels.

Platinum Efficiency Certification

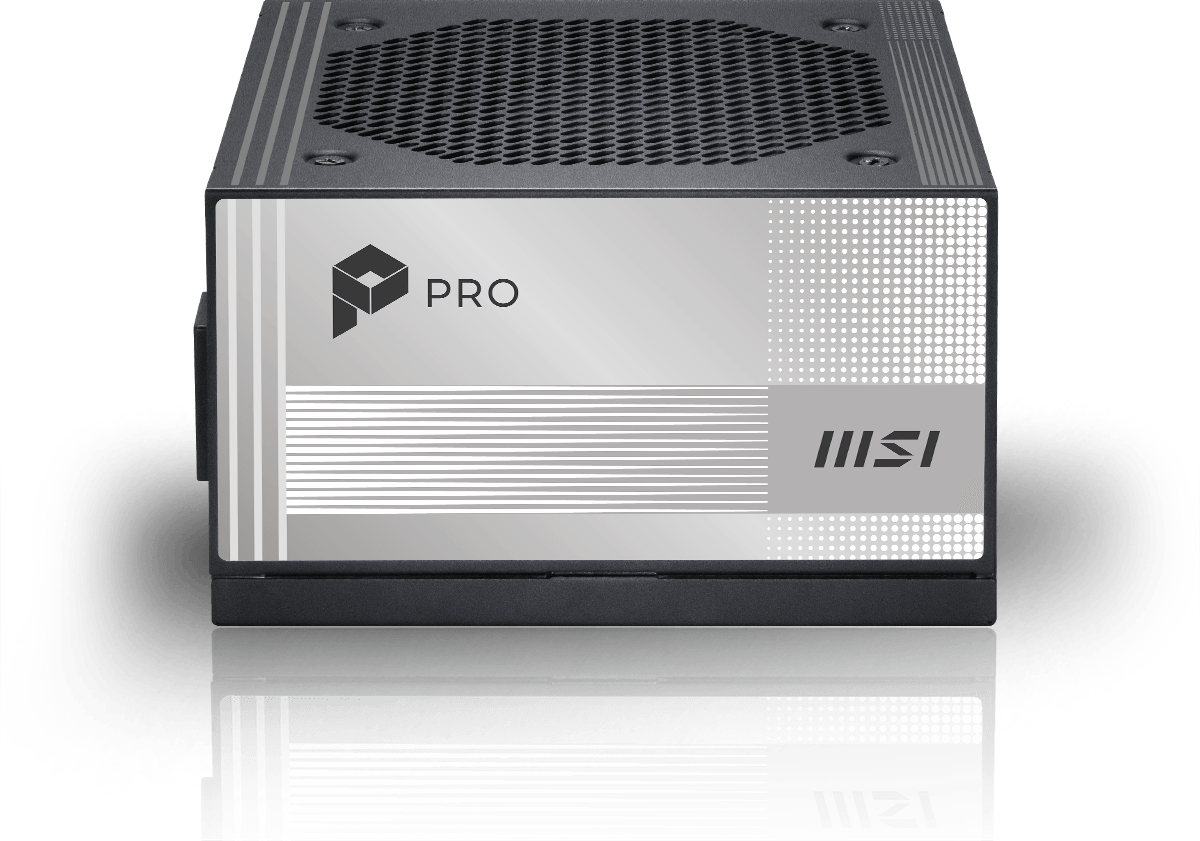

105C Main Capacitor
105C Main Capacitor icon

105C Main Capacitor

Aiming for superior product quality and performance stability, this power supply features 105C main capacitors for long-term use reliability.

Built for Maximum Safety

Copper Wire

High-density Cover

Built for Maximum Safety

The power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.

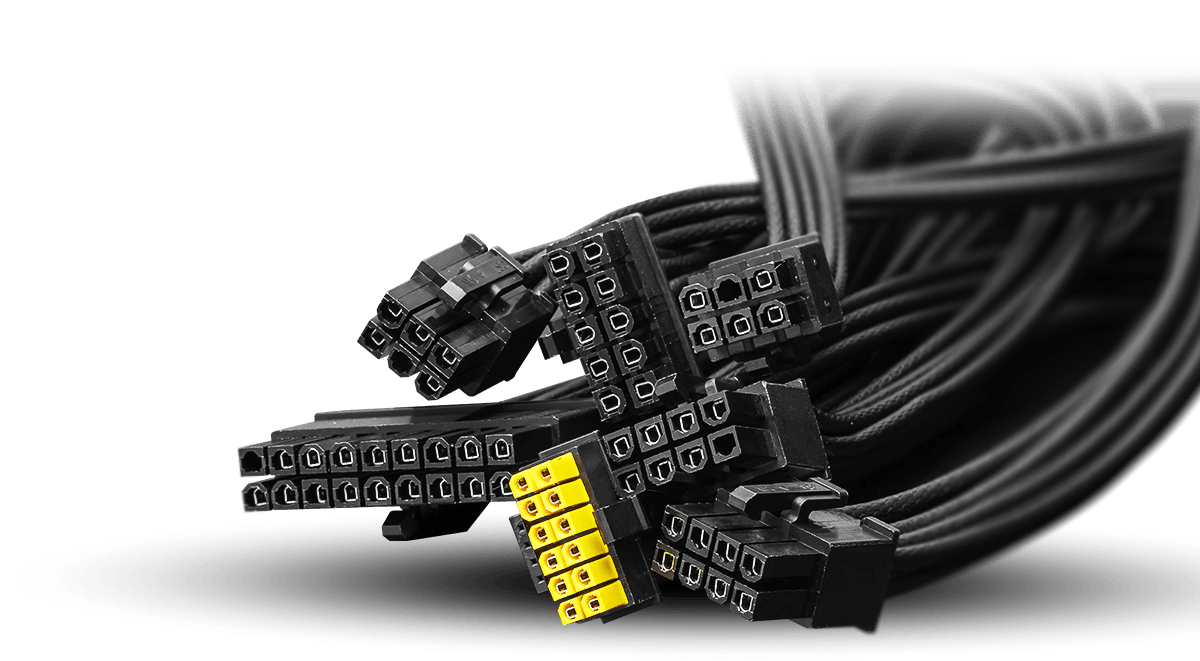

Alloy Copper Connector Terminals

The cable connectors are made of nickel-plated copper alloy terminals, effectively prevents oxidation, maintaining the terminal's conductivity and durability when there is a higher surge in current.

Alloy Copper Connector Terminals

connectors

ATX

(20+4 PIN) x 1

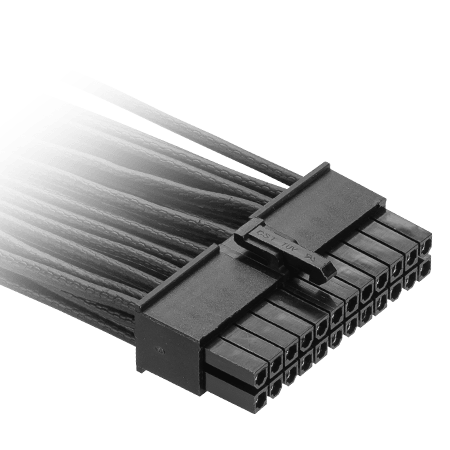

ATX (20+4 PIN) x1

EPS

(4+4 PIN) x 2

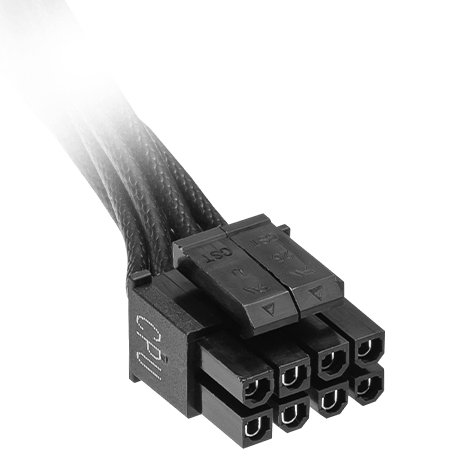

EPS (4+4 PIN / 8 PIN) x2

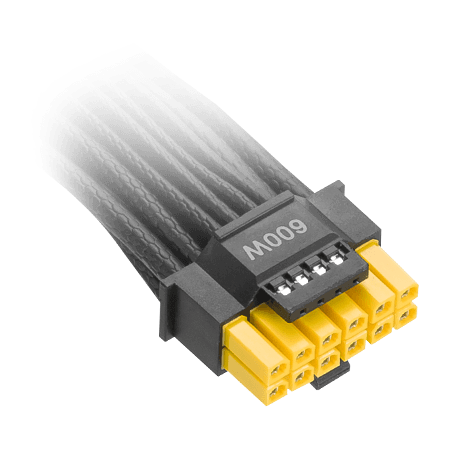

PCIe 5.1

(12+4 PIN) x 1

pcie 5.1 (6+2 PIN) x2

PCIe

(6+2 PIN) x 3

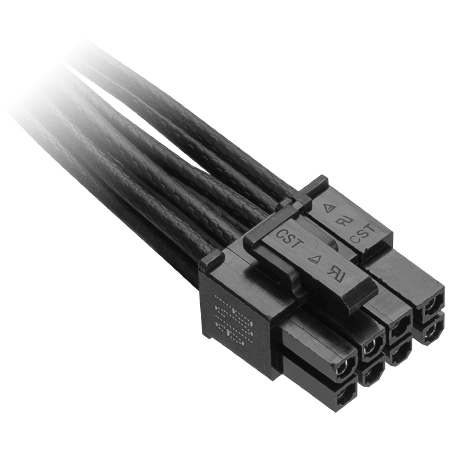

pcie (6+2 PIN) x2

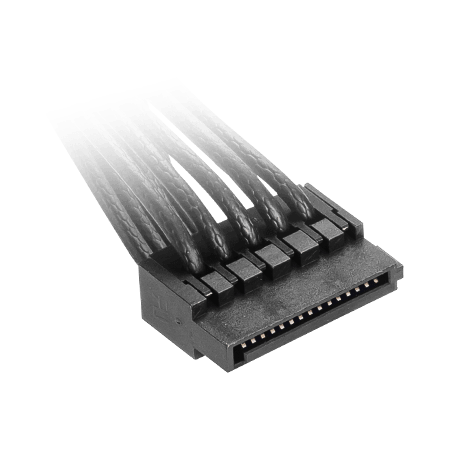

SATA

x 6

SATA (6+2 PIN) x2

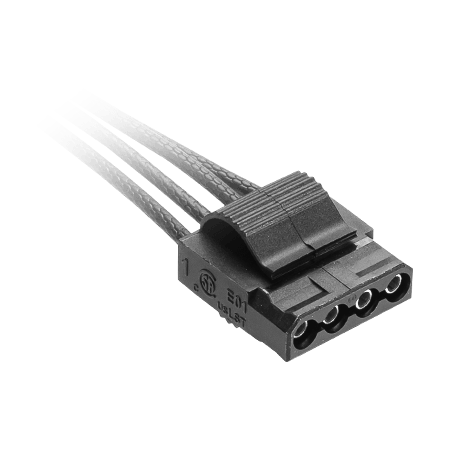

PERIPHERAL

x 2

PERIPHERAL (6+2 PIN) x2

cable

1 x

ATX

cable atx

3 x

PCIe 8-pin

cable 8-pin

2 x

EPS

cable atx

2 x

SATA / PERIPHERAL

cable SATA / PERIPHERAL

1 x

12V-2x6

cable atx

*Images are for reference for cable numbers only; appearance may differ from the actual product.

PRO A1000PL PCIE5

  • Dual-color 12V-2x6 Cable
  • ATX 3.1 Ready
  • PCIe 5.1 Ready (600W)
  • 105C Main Electrolytic Capacitor
  • 80 PLUS Platinum Certification
  • Embossed Jacket Certified Cables
  • Industrial level protection with OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO


Efficiency Rating
80 PLUS Platinum (up to 92%)
Modular
Fully Modular
Fan Size
120 mm
Fan Bearing
Hydrualic Bearing
Dimensions (DxWxH)
150 x 150 x 86 mm / 5.9 x 5.9 x 3.38 inches
PFC Type
Active PFC
Input Voltage Range
100-240V~
Power Watt
1000W
Power Excursion
200%
Input Frequency Range
50-60Hz
Protection
OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO
ATX (24 pin)
1
EPS (4+4 pin)
2
PCI-E 5.1 (16 pin)
1 (600W)
PCI-E (6+2 pin)
3
SATA (15 pin)
6
PERIPHERAL (4 pin)
2

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (MSI) web site.
