Computer Connections |
2 |
|
Port Selection |
Hotkey, Pushbutton, Mouse |
|
|
|
|
Connectors |
|
|
Console Ports |
2 x USB Type A Female (rear panel) |
|
|
1 x DVI-I Female (White) |
|
|
1 x USB Type A Female (rear panel) |
|
|
2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear
panel) |
|
|
1 x 3.5mm Audio Jack Female (Blue) |
|
|
1 x 3.5mm Audio Jack Female (Gray) |
|
|
1 x 3.5mm Audio Jack Female (Black) |
|
|
1 x 3.5mm Audio Jack Female (Orange) |
|
|
2 x 3.5mm Audio Jack Female (Pink; 1 x front panel, 1 x rear
panel) |
|
KVM Ports |
2 x USB Type B Female |
|
|
2 x DVI-I Female (White) |
|
|
2 x 3.5mm Audio Jack Female (Green) |
|
|
2 x 3.5mm Audio Jack Female (Blue) |
|
|
2 x 3.5mm Audio Jack Female (Gray) |
|
|
2 x 3.5mm Audio Jack Female (Black) |
|
|
2 x 3.5mm Audio Jack Female (Orange) |
|
|
2 x 3.5mm Audio Jack Female (Pink) |
|
Power |
1 x DC Jack |
|
USB Hub |
2 x USB Type A Female (1 x front panel, 1 x rear
panel) |
|
|
|
|
Switches |
|
|
Power Selected |
2 x Pushbutton |
|
|
|
|
LEDs |
|
|
USB Link |
2 (Green) |
|
On Line /Selected |
2 (Orange) |
|
|
|
|
Emulation |
|
|
Keyboard / Mouse |
USB |
|
|
|
|
Video |
DVI Dual Link: 2560 x 1600 @ 60Hz; |
|
|
DVI Single Link: 1920 x 1200 @ 60Hz |
|
Scan Interval |
1–99 seconds (default: 5 secs) |
|
Power Consumption |
DC5.3V:3.3W:41BTU |
|
|
|
|
Environmental |
|
|
Operating Temperature |
0 -50°C |
|
Storage Temperature |
-20-60°C |
|
Humidity |
0–80% RH, Non-condensing |
|
|
|
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
0.90 kg ( 1.98 lb ) |
|
Dimensions (L x W x H) |
27.00 x 8.80 x 5.55 cm |
|
|
(10.63 x 3.46 x 2.19 in.) |
|
|
|
|
Note |
For some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
|
Package Contents |

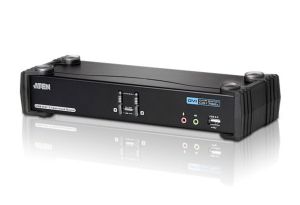

1x CS1782A USB DVI Dual Link KVMP Switch |
|
|
2x KVM Cable (DVI-D DL, USB, Audio; 1.8m/6ft) |
|
|
2x 7.1 Channel Surround Sound Cable (1.8m/6ft) |
|
|
1x Power Adapter |
|
|
1x User
Instructions |
