All stock codes associated to this product
VM0808HAATU, VM0808HA-AT-U, KVAVM0808HA, KVA-VM0808HA, 4719264643866
Overview

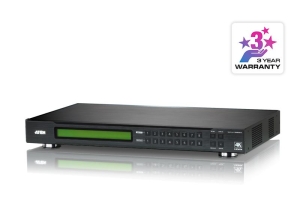

The ATEN VM0808HA 8x8 4K HDMI Matrix Switch supports 4K resolutions of UHD
(3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60
Hz (4:2:0). Ready for the future of high-definition video switching, the
VM0808HA is ideal for applications where the routing of 4K digital signals is
required, such as in classrooms, auditoriums, department stores and more.
The VM0808HA matrix switch offers an easy and affordable way to route any of
8 HDMI video sources to any of 8 HDMI displays and can be operated through
front-panel pushbuttons, IR remote, RS-232 control and Ethernet connections,
ensuring optimum viewing and control of high-definition video. Moreover, with a
built-in Web GUI, the VM0808HA is easily accessible via any web browser for
remote configuration and customization of each HDMI source and display
connection.
Package Contents
- 1x VM0808HA 8x8 4K HDMI Matrix Switch
- 1x Power Cord
- 1x IR Remote Control
- 1x IR Receiver
- 1x Mounting Kit
- 1x User Instructions
Features
- Connects any of 8 HDMI sources to any of 8 HDMI displays
- Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with
refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
- EDID Expert™ – selects optimum EDID settings for smooth power-up,
high-quality display and use of the best video resolution across different
screens
- Multiple Control Methods – system management via front-panel pushbuttons,
IR remote, RS-232 control, and Ethernet connections (Web GUI)
- Supports Dolby True HD and DTS HD Master audio
- Signaling rates up to 3.4 Gbits for flawless 4K output
- HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to
communicate and respond to a single remote control
- Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
- ESD protection for HDMI
- Firmware upgradeable
- Rack Mountable (1U design)

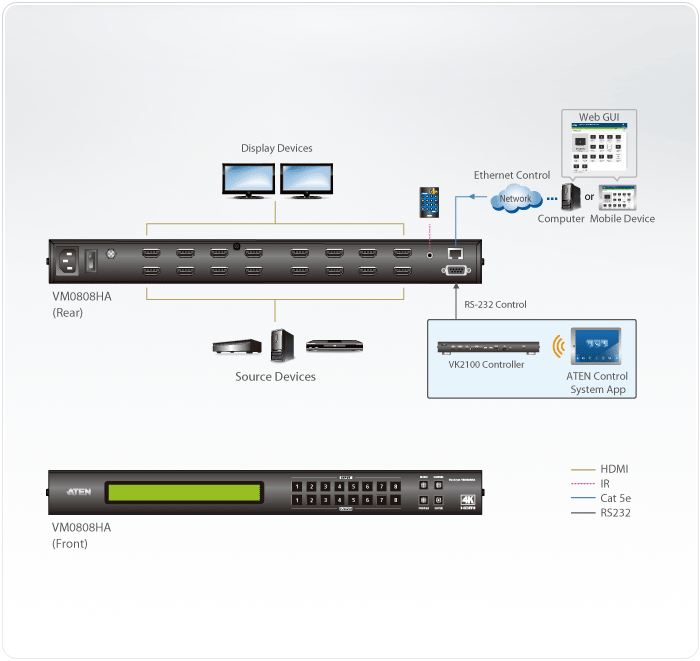

Diagram
Specifications
|
Video
Input |
|
Interfaces |
8 x HDMI Type A Female
(Black) |
|
Impedance |
100
|
|
Max.
Distance |
1.8
m |
|
|
|
Video
Output |
|
Interfaces |
8 x HDMI Type A Female
(Black) |
|
Impedance |
100
|
|
Max.
Distance |
15
m |
|
|
|
Video |
|
Max. Data
Rate |
10.2 Gbps (3.4 Gbps Per
Lane) |
|
Max. Pixel
Clock |
340
MHz |
|
Compliance |
HDMI (3D, 4K, Deep
Color) |
|
HDCP 2.2
Compatible |
|
Consumer Electronics
Control (CEC) |
|
Max.
Resolution |
Up to 4096 x 2160 /
3840 x 2160 @ 60Hz (4:2:0); |
|
4096 x 2160 / 3840 x
2160 @ 30Hz (4:4:4) |
|
Max.
Distance |
Up to 15
m |
|
|
|
Control |
|
RS-232 |
Connector: 1 x DB-9
Female (Black) |
|
Baud rate and
protocol: |
|
Baud Rate: 19200, Data
Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
|
IR |
1 x Mini Stereo Jack
Female (Black) |
|
|
|
|
|
EDID
Settings |
EDID Mode: Default /
Port 1 / Remix / Customized |
|
(EDID Wizard
Support) |
|
|
|
Power |
|
Connectors |
1 x 3-Prong AC
Socket |
|
Maximum Input Power
Rating |
100-240 VAC; 50-60 Hz;
1.0A |
|
Consumption |
120 VAC, 24W; 230 VAC,
24.4W |
|
|
|
Environmental |
|
Operating
Temperature |
0-40C |
|
Storage
Temperature |
-20 -
60C |
|
Humidity |
0 - 80% RH,
Non-Condensing |
|
|
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
3.86 kg ( 8.5 lb
) |
|
Dimensions (L x W x
H) |
43.24 x 26.23 x 4.40
cm |
|
(17.02 x 10.33 x 1.73
in.) |
|
|
|
Carton
Lot |
1
pc |
