Product |
|
Part
Number |
MVX-E6152-4 |
|
Form
Factor |
Standalone
appliance |
|
Rack-mountable:
1U, 1/2 rack (horizontal) |
|
Connectivity |
|
Video
Input |
Number
of channels: |
|
4 |
|
Formats: |
|
HDMI (Type
A) with audio support |
|
Video
Output |
Number
of channels: |
|
4 |
|
Formats: |
|
HDMI
(Type A) zero latency pass-through |
|
Audio
Input |
-
4x HDMI digital LPCM two-channel stereo audio |
|
-
4x 3.5 mm analog stereo audio |
|
1
Vrms (0 dBV) |
|
14.3
k (gain = 0 dB) |
|
-60
dB to +6 dB (default is 0 dB) |
|
-
1x 3.5 mm stereo mic in |
|
2.5
V |
|
1
Vrms (0 dBV) |
|
15
k (gain = 0 dB), 5 k (gain 10 dB) |
|
-74
dB to +41 dB (default is 0 dB) |
|
Audio
Output |
-
4x HDMI digital LPCM two-channel stereo audio |
|
-
1x 3.5 mm headphones out |
|
1.2
Vrms (1.6 dBV) |
|
32
mW into 32 |
|
-74
dB to 0 dB (default is 0 dB) |
|
Network
Connector |
2x
RJ45 with status LED indicators |
|
(1x
control and stream, and 1x stream only) |
|
USB
Ports |
2x
USB 2.0 (front) |
|
1x
USB 3.0 (back) |
|
RS-232 |
1x
for IP to RS-232 control |
|
Confidence
Preview |
1x
DisplayPort 1.1 |
|
Maximum
resolution: 1920x1080 |
|
Multi-Unit
Support |
Yes |
|
Performance |
|
Color
Space and Chroma Sub-Sampling |
RGB
and YUV 8- and 10-bit support |
|
Color
space conversion support |
|
|
4:0:0
(8-bit and 10-bit*) |
|
4:2:0
(8-bit and 10-bit*) |
|
4:2:2
(8-bit) |
|
4:4:4
(8-bit) |
|
*1080p60
max |
|
Video
Input Resolutions |
4x
3840x2160 @60Hz or 4x 4096x2160 @60Hz |
|
Video
and Audio Processing |
|
Video
Scaling |
Yes |
|
Video
Compositing |
Yes,
fixed formats including Picture-in-Picture (PiP), Picture-by-Picture
(PbP), quadrant |
|
HDCP
Support |
Only
available between Maevex 61X2 Encoders and Maevex 6152
Decoder |
|
Audio
Encoding Format |
MPEG-4
AAC-LC/HEv1/HEv2 |
|
Audio
Sampling Frequency |
32
kHz |
|
44.1
kHz |
|
48
kHz |
|
Audio
Bitrates |
Up
to 144 Kbps (AAC-HEv2) |
|
Up
to 288 Kbps (AAC-HEv1) |
|
Up
to 576 Kbps (AAC-LC) |
|
Codec |
|
Video
Encoding Formats |
H.264/MPEG-4
Part 10 (AVC) |
|
Encoding
Profiles |
Baseline
(BP) |
|
Main
(MP) |
|
High
(HiP) |
|
High
10 (Hi10P) |
|
High
4:2:2 (Hi422P) |
|
CAVLC
4:4:4 intra (44) |
|
High
4:4:4 predictive profile separate plane
(Hi444PP) |
|
Encoder
Bitrates Range |
15
Mbps (default) |
|
50
Kbps to 120 Mbps (Maximum operational bitrate per stream is dependent on
number of streams and features enabled.) |
|
Encoding
Rate Control |
Adjustable
GOP size |
|
Constant
Bitrate (CBR) |
|
Favor
quality and optimize for desktop or latency |
|
Variable
Bitrate (VBR) |
|
Encoding
Level |
Up
to 5.2 |
|
Encoding |
|
Encoding
Capability |
4:2:0* |
|
2x
3840x2160 @60Hz |
|
1x
4096x2160 @60Hz |
|
4x
3840x2160 @30Hz |
|
3x
4096x2160 @30Hz |
|
8x
1920x1080 @60Hz |
|
16x
1920x1080 @30Hz |
|
4:4:4* |
|
1x
3840x2160 @30Hz |
|
1x
4096x2160 @30Hz |
|
2x
1920x1080 @60Hz |
|
3x
1920x1080 @60Hz |
|
6x
1920x1080 @30Hz |
|
*Each
encoding capability is independent of the others listed, and excludes any
additional processing such as compositing, scaling, etc. Content can
affect results. For more details and encoding capability support, contact
Matrox. |
|
Network |
|
Network
Standard |
100/1,000
base-T Ethernet |
|
Auto
speed |
|
Half/full
duplex |
|
Routing
Scheme |
Unicast |
|
Multicast |
|
Multi-unicast |
|
IP
Addressing |
IPv4 |
|
IPv6 |
|
DHCP
(default) and static IP |
|
Streaming
Protocols |
HLS |
|
MPEG2.TS
over UDP |
|
RTMP |
|
RTP/RTCP
(both required) over UDP |
|
RTSP
(TCP), RTCP & RTP (UDP) - all required |
|
RTSP
over TCP (interleaved) |
|
SRT |
|
Command
and Control |
HTTPS
over TCP |
|
UPnP
(discovery) |
|
Recording |
|
File
Format |
MP4 |
|
MOV |
|
fMP4 |
|
Filename |
Customizable
prefix (optional) |
|
Timestamp |
Automatic
in filename |
|
Programmability |
Duration |
|
File
frequency |
|
Maximum
file length |
|
Start
date and time |
|
Recording
Locations |
Local
USB ports for USB flash drive and external hard
drive |
|
2x
USB 2.0 (front) and 1x USB 3.0 (back) |
|
Shared
network drive or NAS |
|
Physical |
|
Product
Dimensions |
8.53
(L) x 7.52 (W) x 1.68 (H) inches |
|
21.7
(L) x 19.1 (W) x 4.3 (H) cm |
|
Unit
Weight |
Device
only ~ 1.5 kg. |
|
With
accessories and packaging ~ 3 kg. |
|
Noise
Emission |
~25
dB at full stream/record capacity |
|
Hardware
& Software |
|
Hardware
Included |

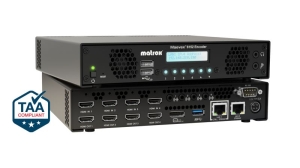

Maevex
6152 Quad 4K Encoder Appliance |
|
Power
Supply |
|
100-240
VAC in, 12 VDC out, 60W |
|
DIN4
locking power connector |
|
Power
Cords Included (US, EU, UK, Aus/NZ) |
|
Accessories
(sold separately) |
Rack
Mount Kit (part number: RMK-19TR-A) |
|
Rack mounting shelf (19 in / 48.26
cm) |
|
Pan head Phillips screws (4x 10-32 x 3/4
in) |
|
Pan head Phillips screws (4x 12-24 x 3/4 in) |
|
Flat head Phillips screws (6x M3 x 6 mm) |
|
NRG
Redundant Power Supply Unit |
|
Rack tray with one NRG RPSU pre-installed (part number:
NRG-5-1DB) |
|
Rack tray with two NRG RPSU pre-installed (part number:
NRG-5-2DB) |
|
Secure
cable solution for HDMI (part number:
SK-SLND-4) |
|
Software |
PowerStream
Plus (free download)* |
|
Compatible
with Maevex 5100 Series and Maevex 6100 Series |
|
Network
discovery |
|
Multi-encoding
and recording management |
|
Multi-protocol
management |
|
Frame
rate management |
|
Resolution
control |
|
Administrator
and user credential management |
|
Scaling
management |
|
SNMP
support |
|
Maevex
6100 Series RS-232 API (free download)* |
|
Control
Maevex 6100 appliances via Crestron, Kramer, Extron, or other tabletop
touch-screen controllers. |
|
Access
basic commands including list, start/stop streaming and recording, and
device reboot. |
|
Maevex
SDK for Windows and Linux* |
|
Full-access
to entire feature set via SDK |
|
.NET
4.5.1 or higher, standalone library and Mono 5.2 or higher for
Linux |
|
Maevex
REST API* |
|
Maevex
6100 Series REST API |
|
Available
for lower-level development |
|
*Contact
Matrox for more details. |
|
Environmental |
|
Operating
Conditions |
Temperature:
0 to 45 degrees Celsius |
|
Altitude:
650 hPa (3,580 m) to 1,013 hPa (0 m) |
|
Humidity:
20% to 80% non-condensing |
|
Storage
Conditions |
Temperature:
-40 to 70 degrees Celsius |
|
Altitude:
192 hPa (12,000 m) to 1,020 hPa (-50 m) |
|
Humidity:
10% to 90% non-condensing |
|
Power
Consumption |
45W |
|
General |
|
Supported
Operating Systems (software) |
Microsoft
Windows 10 (64-bit) |
|
Windows
Server 2016 |
|
Windows
7 (32-bit, 64-bit) |
|
Windows
Server 2008 R2 |
|
Windows
Server 2019 |
|
EMC/EMI
Device Class |
Class
A |
|
EMC/EMI
Compliance |
CE
(EU) |
|
FCC
(US) |
|
ICES-3
(Canada) |
|
KC
(Korea) |
|
RCM
(Aus/NZ) |
|
Environmental
Compliance |
China
RoHS |
|
EU
RoHS |
|
REACH |
|
WEEE |
|
Warranty |
Two-year
limited warranty with free online or telephone
support |
