Addonics ADEBIDECF Single Slot CompactFlash Adapter - IDE Interface

IMG 1 of 1
No Longer Available
Part Number:
128774
(?) Brand:
Addonics Web Site
Manuf No:
ADEBIDECF
Shipping Weight:
0.2 KG (Includes product packaging)
Estimate Shipping
Date Added:
22/10/2009
Details Files Images & Video
All stock codes associated to this product
ADEBIDECF

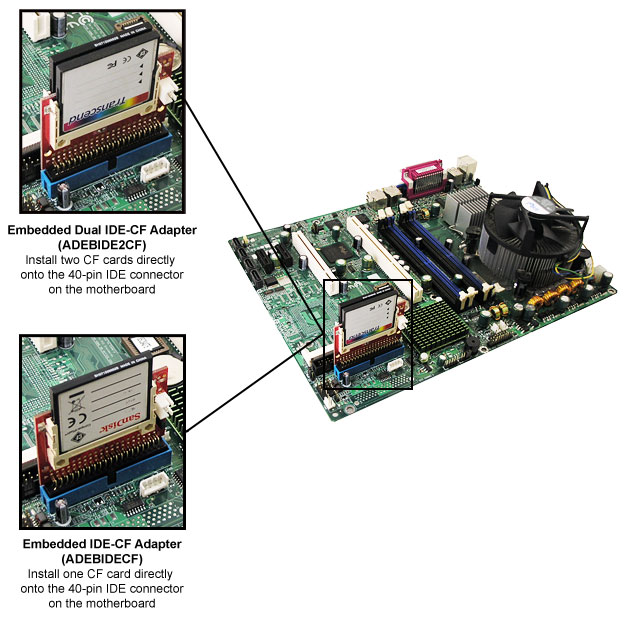

The Addonics Embedded Single Slot and Dual Slot IDE-CF adapters are an ideal solution for industrial PC, embedded system or applications that require a simple and economical bootable CF slot. Designed to plug directly onto the IDE port of any processor board, the small form factor of this adapter can be easily mounted inside any system.



Key Features

  • Choice of single slot or dual slot adapter
  • Install one or two Compact Flash cards directly onto one IDE channel
  • Dual slot adapter (ADEBIDE2CF) Compatible with CFI/II and Micro Drive on Master position, Compatible with CFI on Slave position
  • Single slot adapter (ADEBIDECF) Compatible with CFI/II and Micro Drive on Master position
  • IDE interface
  • Mounts directly onto standard 40-pin IDE connector
  • Supports master or slave setting
  • Drive activity LED on board
  • Bootable
  • Supports DMA and Ultra DMA modes. A compatible flash media card will be required to use these modes.
  • Compatible* with DOS, Windows 3.1, NT4, 98SE, Me, 2000 and XP, Vista, Linux

*Media must be in the device during boot up. Media is not hot swappable

Specifications

Interface:
 40-pin IDE 3.5" with female connector
Supported media ADEBIDE2CF: Type I/II CF and MicroDrive on CF slot1, Type I CF on CF slot2
ADEBIDECF: Type I/II CF and MicroDrive on CF slot1
Maximum Read / Write Speed: Depends on the media
OS Support: DOS, Windows 3.1, NT, 98SE, Me, 2000, XP, Vista, Mac OS 8.6 or higher, Linux
Dimensions: (W x D x H) - 56 x 9 x 63 mm for 40-pin IDE with CF card attached
Power: +5V from PC power supply
Storage Temperature: -20 C to + 60 C
Storage Humidity: 5 - 90%
Warranty: One Year
