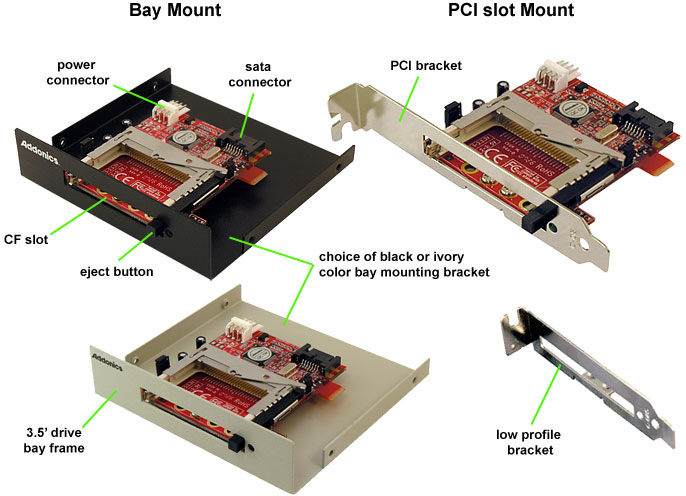

As an advance addition to our popular IDE CF adapter, this Addonics SATA CF adapter is one of the fastest CF Readers/Writers in the market today. Connect directly to the fast SATA port, this adapter supports direct booting from the CF media as well as hot swapping* of the CF media without restarting the system. Comes bundled with 3.5" bay bracket, a standard height and a low profile PCI slot mounting brackets, the SATA can be installed practically into any system. The versatility and the fast performance of this adapter make it an ideal CF read/write device for many industrial PCs, embedded systems or various vertical applications.
Key Features
- Compatible with CFI/II and Micro Drive
- Supports connection to Port Multiplier or Hardware Port Multiplier
- SATA or SATA II interface
- LED indicator for both power and data access
- Mount in standard height PCI slot, low profile PCI slot, standard 3.5" drive bay (or 5 1/4" drive bay with optional bay converter, AAMK53)
- Choice of black or ivory color bay bracket
- Supports DMA and Ultra DMA modes. A compatible flash media card will be required to use these modes.
- Bootable*
- Hot swappable**
- Compatible* with DOS, Windows 3.1, NT4, 98SE, Me, 2000, XP, Vista, Mac, Linux
*while the SATA to CF Adapter is known to be bootable, only certain types of CF cards will be capable of booting off this adapter. A Transcend 2GB Industrial Compact Flash with UDMA Fixed Disk Mode feature was used to do a fresh install and tested to successfully boot Windows XP Media Center 2005 under 40 seconds.
**hot swap function depends on the SATA controller. Some early SATA controllers do not support hot swap. Please confirm with your controller supplier. If you need to add a SATA controller, we recommend using one of Addonics SATA controllers of which are all based on Silicon Image chip set.
note: there are reports that an incompatibility issue arises when the SATA CF adapter is used with the Intel D945 series motherboard.
Specifications
Interface:
|
SATA |
| Supported media |
Type I/II CF, Micro Drive |
| Maximum Read / Write Speed: |
Depends on the media |
| OS Support: |
DOS, Windows 3.1, NT, 98SE, Me, 2000, XP, Vista |
| Dimensions: |
adapter (the control board only): 2.8 x 2.2 x .35 in (71 x 56 x 9 mm)
3.5" bay frame: 4.02 x 3.82 x 1 in (102 x 97 x 25 mm) |
| Power: |
+5V from PC power supply |
| LED indicator |
Power and data access |
| Operating Temperature |
| |
| 0 °C to + 75 °C
| Operating Humidity: |
| |
| 5% - 95% (non condensing)
| Storage Temperature: |
-40 C to + 85 C |
| Storage Humidity: |
5% - 95% |
| Warranty: |
One Year |
