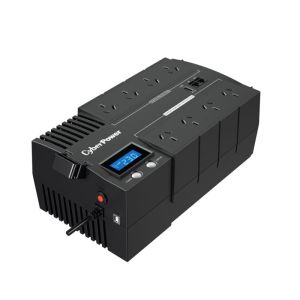

The BRICs LCD Series UPS with LCD can supply clean and stable power to protect your equipment. The featured LCD status monitor provides all critical power status you should know. The include PowerPanel Personal Edition management software showcases the feature rich abilities of this UPS such as input /output power voltage readings, self-diagnostics, scheduled shutdown, and approximate battery back-up time reading. These UPS units can be placed in either a horizontal or wallmount position to mark the most of your space. With Energy-Saving Technology, BRICs LCD Series UPS can save upto 75% of electricity and save your electricity bill.



Features & Benefits

  • GreenPower UPS Technology : Energy-Saving UPS
  • Microprocessor based full digital control
  • Automatic Voltage Regulator (AVR)
  • EMI, RFI, Surge and lightning spike protection
  • Phone / Fax / Modem / DSL / Network protection
  • Power Management software included
  • Scheduled shutdown
  • Auto restart / Auto charge
  • Horizontal / Wallmount use
  • USB connectivity ports
  • Compact design with highest power output
  • LCD Status Moniter
  • Save upto 75% of electicity
  • Cable collector include
  • Equipment Protection Policy up to 25,000 AUD
Specifications

Model BR850ELCD
Capacity (VA/Watts) 850VA / 510W
Input
Voltage Range 160Vac - 265Vac
Frequency Range 47Hz ~ 63 Hz (Auto Sensing)
Output
On Battery Output Voltage Simulated Sine Wave at 230Vac +/- 10%
On Battery Output Frequency 50Hz / 60 Hz +/- 1%
Transfer Time (Typical) 4ms
Overload Protection On Utility: Circuit Breaker & Internal Current Limiting / On Battery: Internal Current Limiting
AVR Yes
Surge Protection
Lightning/Surge Protection Yes
DSL/Phone/Fax/Moden protection RJ11/RJ45(One In/One Out)
Physical
Receptacles 6
Maximum Dimensions(mm) 271(L) x 160.7(W) x 113.6(H)
Weight(kg) 6.4
Battery
Sealed Maintenance Free Lead
Acid Battery
12V 8.5AH x 1
Typical Recharge Time 8 Hours
Transfer Time
Typical 4ms
Status Indication
Indicators Power On, LED Display
Audible Alarms On Battery, Low Battery, Overload
Communication
Power Management Software PowerPanel Personal Edition
Management
Self-Test Manual Self-Test
Auto-Charge Yes
Auto-Restart Yes
USB Yes
Accessories
LCD panel Yes


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CyberPower) web site.
