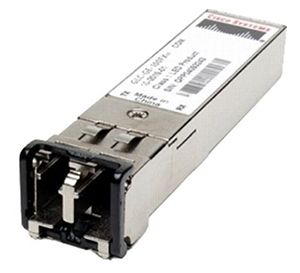

The Cisco 100BASE-FX Small Form-Factor Pluggable (SFP) Fast Ethernet Interface Converter (GLC-GE-100FX=) is a hot-swappable device that plugs into a Gigabit Ethernet SFP port on Cisco Catalyst 3750 Series, 3560 Series, and 2970 Series switches. The Cisco SFP provides full-duplex 100-Mbps connectivity between switches over multimode fiber (MMF) infrastructures. It offers investment protection and an easy migration path for customers moving to Gigabit Ethernet connections in the future.
The 100BASE-FX SFP operates on ordinary multimode fiber optical link spans of up to 2 kilometers (km) in length. Customers implementing Cisco 100BASE-FX SFP can use 1000BASE-X SFPs in the future (including SX, LX/LH, ZX, and coarse wavelength-division multiplexing SFPs).
TECHNICAL SPECIFICATIONS
Platform Support
The Cisco 100BASE-FX SFP on Gigabit SFP ports is supported on Cisco Catalyst 3750, 3560, and 2970 series switches.
Connectors and Cabling
Connectors: Dual LC connector
Table 1 shows cabling specifications for the 100BASE-FX SFP installed on a Gigabit Ethernet SFP port. The minimum cable distance is 6.5 feet (2meters [m]).
Table 1. SFP Port Cabling Specifications
|
SFP
|
Wavelength (nm)
|
Fiber Type
|
Core Size (micron)
|
Modal Bandwidth (MHz/km)
|
Cable Length
|
|
GLC-GE-100FX=
|
Min
1270
|
Typ
1300
|
Max
1380
|
MMF
|
62.5
62.5
50.0
50.0
|
500
|
2 km (6562 ft)
|
Standards
The Cisco 100BASE-FX SFP is compatible with standards as specified in IEEE 802.3z.
Table 2. Fiber Loss Budgets for 100BASE-FX-SFP on Gigabit Ethernet SFP Ports
|
SFP
|
Type
|
Cabling
|
Transmit (dBm)
|
Receive (dBm)
|
| |
Min
|
Max
|
Min
|
Typ
|
|
GLC-GE-100FX=
|
100BASE-FX
|
50/125-micron
|
23.5
|
14
|
33.5
|
11.8
|
|
62.5/125-micron
|
20
|
14
|
33.5
|
11.8
|
Dimensions
Maximum dimensions (HxWxD): 0.39 x 2.23 x 0.54 in. (9.80 x 56.70 x 13.8 mm)
Environmental Conditions and Power Requirements
Operating temperature range: 0 to 45 degrees C
Storage temperature range: -40 to 80 degrees C
Predicted mean time between failure (MTBF): 12,820,512 hours
Power consumption: 1.5 W
Table 3. Electrical Power Interface
|
Parameter
|
Symbol
|
Minimum
|
Typical
|
Maximum
|
Units
|
|
Supply Current
|
Is
|
|
405
|
450
|
mA
|
|
Surge Current
|
Isurge
|
|
350
|
|
mA
|
|
Input Voltage
|
Vcc
|
3.315
|
3.3
|
3.465
|
V
|
Warranty
Standard warranty: 90 days
Extended warranty (optional): Available under a Cisco SMARTnet support contract
