All stock codes associated to this product
TEDR1024M400HC3, 05TD14001GBE3, 05TD1-400-1GB-E3, 765441616462

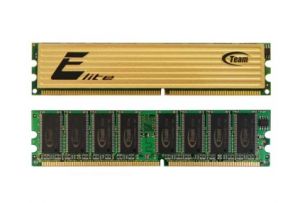

Elite Long-DIMM DDR 400
Team P/N:
TEDR2048M400HC3DC 1GBx2
TEDR1024M400HC3DC 512MBx2
TEDR1024M400HC3 1GB
TEDR512M400HC3 512MB
Capacity: 512MB, 512MBx2, 1GB, 1GBx2
Info:
Although DDR memory is gradually fading out of the PC market, a significant number of users are still using relatively old systems with DDR memory. For the benefit of these users, TEAM GROUP is now offering a number of new options in memory upgrade with unbeatable value. Users of older systems will embrace TEAM GROUPs new products as the most affordable upgrade solutions. TEAM GROUPs ELITE DDR400 features the companys insistence on the highest product quality with the use of premium quality die. ELITE DDR400 is also manufactured through strict testing procedures including low-voltage tests and its specification is compliant to the requirements prescribed by the JEDEC (Joint Electron Device Engineering Council). ELITE features the standard 184 Pin design and operates 2.6v of power. At the same time, TEAM GROUP is also offering products of varying sizes ranging between 512MB~1GB to make the task of balancing budget and memory capacity easier for the consumers.
Features
Although DDR memory is gradually fading out of the PC market, a significant number of users are still using relatively old systems with DDR memory. For the benefit of these users, TEAM GROUP is now offering a number of new options in memory upgrade with unbeatable value. Users of older systems will embrace TEAM GROUPs new products as the most affordable upgrade solutions. TEAM GROUPs ELITE DDR400 features the companys insistence on the highest product quality with the use of premium quality die. ELITE DDR400 is also manufactured through strict testing procedures including low-voltage tests and its specification is compliant to the requirements prescribed by the JEDEC (Joint Electron Device Engineering Council). ELITE features the standard 184 Pin design and operates 2.6v of power. At the same time, TEAM GROUP is also offering products of varying sizes ranging between 512MB~1GB to make the task of balancing budget and memory capacity easier for the consumers.

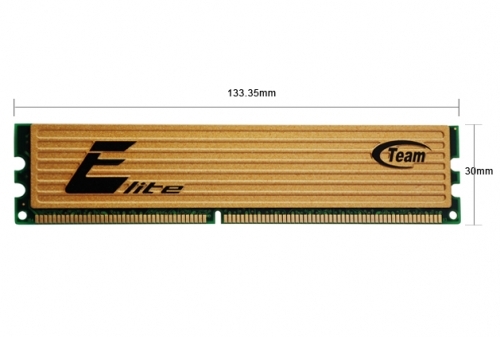

Product Dimensions
Specification
| Specification |
Content |
| Suitable for |
Desktop PCs |
| Module Type |
184Pin Unbuffered DIMM Non ECC |
| DRAM Density |
64x8 |
| Data transfer bandwidth |
3,200MB/Sec (PC 3200) |
| CL-tRCD-tRP-tRAS |
3-4-4-8 |
| Working voltage |
2.6V0.1V |
| PCB |
6-layers PCB |
| Extra features |
Yes |
| Warranty |
Lifetime warranty |
system requirements
Intel platform
Intel 865 series or later chipset
Intel 915 series or later chipset
AMD platform
AMD K8 MB
