All stock codes associated to this product
T1600G52TS(TLSG2452), T1600G-52TS(TL-SG2452), NWTLSG2452, NWTL-SG2452, 6935364091996
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB managed modes, SNMP, RMON bring abundant management features
Overview
What This Product Does

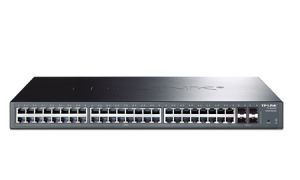

TP-LINK Gigabit Smart Switch TL-SG2452 is equipped with 48 gigabit RJ45 ports and 4 SFP slots. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.
TP-LINK Gigabit Smart Switch TL-SG2452 is a cost-effective product solution for the small and medium business. TL-SG2452 has useful security features. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive layer 2 switch and gigabit capability, TP-LINK Gigabit Smart Switch TL-SG2452 provides you the ideal access-edge solution.
Advanced QoS Features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.
Abundant Layer 2 Features
For more application of layer 2 switches, TL-SG2452 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.
Enterprise Level Management Features
TL-SG2452 is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.
Features:
- Layer 2 Features
- LAG, Static LAG
- Up to 512 VLANs simultaneously(out of 4K VLAN IDs)
- STP/RSTP/MSTP
- IGMP Snooping
- Quality of Service
- 4 priority queues
- Support IEEE 802.1P Priority
- DSCP QoS
- Rate limit feature
- Security Strategies
- Port Security
- Storm Control
- Management
- Web-based GUI
- SNMP v1/v2c/v3
- RMON (1,2,3,9 group)
Specifications:
| HARDWARE FEATURES |
| Standards and Protocols |
IEEE 802.3i,IEEE 802.3u,IEEE
802.3ab,IEEE802.3z,IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,IEEE 802.1p |
| Interface |
48 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 Gigabit SFP Slots |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
100BASE-FX:MMF,SMF
1000BASE-X: MMF, SMF |
| Dimensions (W X D X H) |
17.3*10.2*1.7 in.(440*260*44 mm) |
| Fan Quantity |
2 |
| Power Supply |
100~240VAC, 50/60Hz |
| PERFORMANCE |
| Bandwidth/Backplane |
104Gbps |
| MAC Address Table |
8k |
| Packet Forwarding Rate |
77.4Mpps |
| Jumbo Frame |
10240 Bytes |
| SOFTWARE FEATURES |
| Quality of Service |
Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow-based Rate Limiting |
| L2 Features |
IGMP Snooping V1/V2/V3
LAG(Up to 6 aggregation groups,
containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control |
| VLAN |
Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
| Security |
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control |
| Management |
Web-based GUI
SNMP v1/v2c/v3,compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: Web
System Diagnose: VCT
SYSLOG & Public MIBS |
| OTHERS |
| Certification |
CE, FCC |
| Package Contents |
TL-SG2452;
Power Cord;
Installation Guide;
Resource CD;
Rackmount Kit;
Rubber Feet |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Environment |
Operating Temperature: 0~40 (32~104);
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
