Aten NRGence 16 Port 0U eco PDU over IP - 16A Input - Env Monitoring via Opt Sensors and EC1000

PE1216G-AX-G

Description

Aten PE1216 16-Port PDU Over IP

The PE1216 Energy PDU contains 16 AC outlets and is available in IEC or NEMA socket configurations. The PE1216 Energy PDU features a space-saving 0U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room, while providing 16 AC outlets.

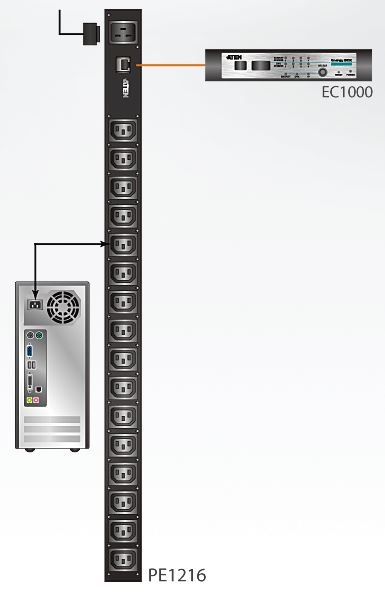

The PE1216 Energy PDU can be integrated into an installation with the EC1000 Energy Box*, allowing you to monitor the real-time current and environmental conditions of the Energy PDU from the front panel of the EC1000 at the rack, or via Web GUI remotely making your server room efficiently green with ease.


Features

  • Space saving 0U rack mount design
  • 16 x IEC C13 outlets
  • IEC C20 (16A) Input
  • Real-time 1 Bank PDU current monitoring
When used in conjunction with the EC1000 Energy Box

Package Contents

  • 1 x PE1216 Energy PDU
  • 1 x Power Cord
  • 1 x Mounting Kit
  • 1 x User Instructions

Specifications

Power Outlets Direct 16 x IEC C13
Connectors Inlet 1 x IEC60320 C20
Energy Sensor
Port
1 x RJ-45 Female
Nominal Input Power 100-240V~,
50/60Hz,16A(Max)
Nominal Output Power 100-240V~,50/60Hz Per Outlet 10A (Max) Total : 16A(Max)
Environment Operating Temp. 0 - 50C
Storage Temp. -20 - 60C
Humidity 0-80% RH Non-condensing
Physical Properties Power Cord Length 3 m
Housing Metal
Weight 1.23 kg
Dimensions
( L x W x H )
68.00 x 4.40 x 4.40 cm
Function PE1216G

No additional files, specification sheets, guides or documentation found for product.

Warranty: 24

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
