Aten NRGence 24 Port 0U eco PDU over IP - 32A Input - Env Monitoring via Opt Sensors and EC1000


Description

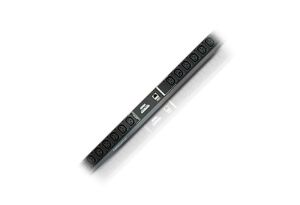

Aten PE1324 24-Port PDU Over IP

The PE1324 Energy PDU contains 24 AC outlets and is available in IEC or NEMA socket configurations. The PE1324 Energy PDU features a space-saving 0U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room, while providing 24 AC outlets.

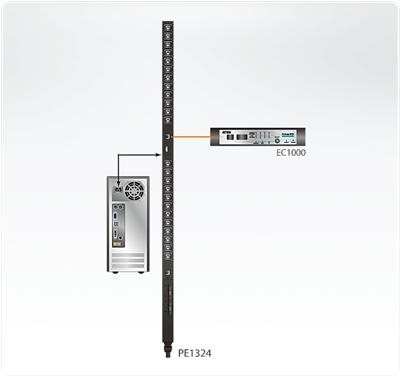

The PE1324 Energy PDU can be integrated into an installation with the EC1000 Energy Box*, allowing you to monitor the real-time current and environmental conditions of the Energy PDU from the front panel of the EC1000 at the rack, or via Web GUI remotelymaking your server room efficiently green with ease.



Features

  • Space saving 0U rack mount design
  • IEC or NEMA outlet models
  • Real-time PDU current monitoring

When used in conjunction with the EC1000 Energy Box

Package Contents

  • 1x PE1324 Energy PDU
  • 1x Mounting Kit
  • 1x User Instructions

Specifications

Function PE1324G
Power Outlets Direct 24 x IEC C13
Connectors Inlet 1 x IEC 60309
32A
Energy Sensor Port 2 x RJ-45 Female
Nominal Input Power 100240V~, 50/60Hz, 32A(Max)
Nominal Output Power 100240V~,50/60Hz
Per bank 16A (Max)
Total : 32A(Max)
Environment Operating Temp. 0 - 50C
Storage Temp. -20 - 60C
Humidity 0-80% RH Non-condensing
Physical Properties Power Cord Length 1.6 m
Housing Metal
Weight 3.47 kg
Dimensions
( L x W x H )
134.00 x 4.40 x 4.40 cm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 24

Full manufacturers warranty details are available at the manufacturers web site.
