All stock codes associated to this product
SEDG8PSWC13, SEDG-8PSW-C13

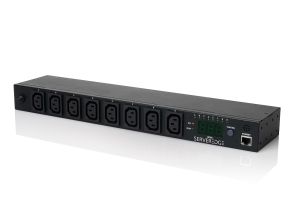

Serveredge 8 Port Switched PDU (8) IEC C13 Output & (1) IEC C14 Input, 10 A, 240 V
SEDG-8PSW-C13
Description
Serveredge Switched rack mountable PDU (SEDG-8PSW-C13) provides 8 X IEC 13 outputs at 10 A and 240 V to power all your rack equipments. The Serveredge switched PDU enables the user to control and monitor the power remotely. The web based interface allows the user switch on/off functionality for power cycling a connected equipment remotely on each individual ports. A true digital RMS meter allows real time current monitoring of the connected equipments with data logging and reporting. It allows for a user defined alarm threshold for overloads and warnings.
Product Features
- Remote power management (Power cycling/ Monitoring) of the connected equipments
- 8 X IEC 13 Output & 3m power Cord IEC C14 Input , multiple ports allow connection to many equipments
- Full-featured network management interface via Http, Https, SNMP, DHCP, UDP protocols
- Allows user with Individual outlet control for remote switch on/off (power cycling)
- Capable of Total Remote Power Monitoring by Meter, Web, SNMP, Free Bundle Software via the True RMS current meter
- Supports user defined alarm threshold for overloads and warning and raise warning by sending emails and trap information in case of threshold breach.
- Email, Trap, Audible Alarm can be set up by user as alarms
Package Contents
1 X SEDG-8PSW-C13
1 X Free Bundled Software
1 X Rack Mount Kit
1 X User Manual
Technical Specification
Input/Output
|
|
| Output |
8 X IEC 320 C13 |
| Input |
1 X IEC 320 C14 with a 3m power cord
|
| Network |
RJ45 |
| Current Meter |
3 Digits Seven Segments for True RMS Meter,Range: 0A ~ 20 A, Resolution: 0.1A, Precision: +/-2%+/-0.1AMP |
| |
|
| Connectivity Status |
|
| DHCP Indication |
Green LED Light |
| SSL Indication |
Yellow LED Light |
| Output Status |
Green LED Light/port |
| |
|
| Power Ratings |
|
| Voltage |
200~240 V |
| Frequency |
50-60 Hz |
| Current |
10A Maximum |
| |
|
| Environmental |
|
| Temperature |
0 ~ 40 Degree Celsius |
| Humidity |
0% ~ 90% |
| |
|
| Physical Dimensions |
|
| Size |
90 x 432 x 44 mm |
| Weight |
3 kg |
Warranty: 2 Years
Regulatory Approvals
CE, EN 55022 Class A, EN 55024,EN 61000-3-2,EN 61000-3-3
C-Tick AS/NZS CISPR 22: 2006
FCC Part 15 Class A, ICES-003
