All stock codes associated to this product
CBN22RU68FS, CBN-22RU-68FS, 9352399001153

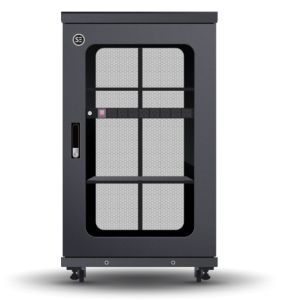

Serveredge 22RU Fully Assembled Free Standing Server Cabinet - 600W x 800D x 1130H Includes Front Glass Door, Dual Rear Mesh Doors, 1 X 6Way PDU,1 X 2 Fan Unit,2 X Shelves,L- Shaped Rails,40 X Cage Nuts
CBN-22RU-68FS
Serveredge CBN-22RU-68FS fully assembled rack enclosure is a perfect solution for securely storing your high-density server & standard rackmount equipments in data centres and standard computer room environments. This premium Serveredge Cabinet is packed with features designed to simplify rack equipment installations and rack equipment maintenance: top-panel cable routing ports, perforated doors to promote efficient airflow, adjustable mounting rails, vertical PDU mounting and more. The CBN-22RU-68FS fully ships fully assembled for quick installation and comes with a manufacturer 25-year warranty.
Features:
- Premium Server cabinet for rack equipment in IT environments
- 22U of rack space; 800Kg stationary load capacity
- Ships fully assembled for quick installation
- Locking, reversible front door and locking, removable side panels
- Fully assembled for quick installation
- Confirm to Standard ANSI/EIA RS-310-D, IEC297-2, DIN4191; PART1, DIN4194; PAT7, GB/T3047M 2-92
- 25-year warranty
Package Includes
- CBN-22RU-68FS Free Standing Server cabinet
- (40) M6 screws
- (40) M6 cage nuts
- (40) M6 washers
- (2) Keys
- 2 X Shelves
- 1 X 6 Way PDU
- 1 X 2 Way Fan Kit
- 4 x Castors
- 4 x Stabilising feet
- 1 x Earth bolt
- Owner's Manual
- Optional Mesh Door
Specifications
|
PHYSICAL
|
|
|
Installed whole system maximum rack depth (cm)
|
74.0
|
|
Rack Height
|
22RU
|
|
Shipping Dimensions (HWD/cm)
|
116.8 x 66.5 x86.5
|
|
Shipping weight (kg)
|
75 |
|
Unit Dimensions (cm)
|
113.0 x 60.0 x 80.0
|
|
Unit weight (kg)
|
71
|
|
Color
|
Black
|
|
Weight Capacity - Stationary (kg)
|
800
|
|
|
|
|
SPECIAL FEATURES
|
|
|
Grounding lug
|
Front and Back door frames
|
Networking
