All stock codes associated to this product
CBN-6RU-66WM, CBN6RU66WM, 9350784001252
CBN-6RU-66WM
We have one unit that is not in its original shipping box and have discounted it due to this .
It is new

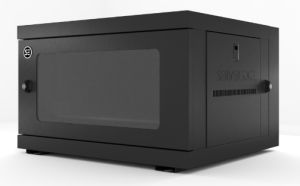

6RU Fully Assembled Hinged Wall Mounted Cabinet - 600W x 550D x 370H Toughened Glass Door, Quick Release Lockable Side Panel, L-Shaped Rails, Cut Out Slots for Fans, 20 X Cage Nuts, 20 X Screws, 20 X Washers
Description
Serveredge Wall mount Swing frame enclosures are the ideal solution for storage solution for the standard rackmount equipment in applications with limited floor space. Constructed with a hinged wall mounting bracket &a sturdy welded frame these racks can accommodate equipments upto 80 Kgs. The vertical mounting rails are adjustable and can accommodate any standard rack mount equipments.Swing away feature of this rack allows easy access to the rackmounted equipments &the enclosure cabinet is hinged to swing away from the wall mounting brackets.Serveredge wall mount swing frame enclosures also features perforated lockable removable side panel assuring generous airflow to keep equipment operating safely. The top and bottom panels of the enclosure include convenient cable routing ports. These wall mount swing cabinets ships fully assembled and comes with a 25-year manufacturers product warranty.
Features
- Designed for limited space environments where equipment needs to be secure and out of the way
- 6RU with adjustable front vertical rackmount rails
- Locking, reversible front door and locking, removable side panels
- Hinged cabinet swings away from wall bracket for easy equipment
- Fully assembled for quick installation
- Confirm to Standard ANSI/EIA RS-310-D, IEC297-2, DIN4191; PART1, DIN4194; PAT7, GB/T3047M 2-92
- 25-year warranty
Package Includes
- CBN-6RU-66WM Wallmount Hinged Rack Enclosure
- (20) M6 screws
- (20) M6 cage nuts
- (20) M6 washers
- (2) Keys
- Owner's Manual
Specifications
|
PHYSICAL
|
|
|
Installed whole system maximum rack depth (mm)
|
450
|
|
Rack Height
|
6RU
|
|
Shipping Dimensions (WDH/cm)
|
650 x 600 x 420
|
|
Shipping weight (kg)
|
22
|
|
Unit Dimensions (WDH/mm)
|
600 x 550 x370
|
|
Unit weight (kg)
|
19.5
|
|
Color
|
Black
|
|
Weight Capacity - Stationary (kg)
|
80
|
|
|
|
|
SPECIAL FEATURES
|
|
|
Grounding lug
|
Front and Back door frames
|
Networking
