eco PDU

As part of its NRGence line, ATEN has developed a new generation of green energy power distribution units (eco PDUs) to effectively increase the efficiency of data center power usage. The NRGence PE8324 eco PDUs are intelligent PDUs that contain 24 AC outlets and are available in various IEC socket configurations. Models in the advanced PE8 ranges feature NRGence´s proactive overload protection, which automatically powers off the last outlet that caused the current overload.

NRGence eco PDUs provide secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center´s health environment via sensors.

NRGence eco PDUs offer remote power control combined with real-time power measurement — allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device, bank, or outlet level, depending on the model, from practically any location via a TCP/IP connection.

The power status of each outlet can be set individually, allowing users to switch each device On/Off. The eco PDU also offers comprehensive power analysis reports which can separate departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display. Installation and operation is fast and easy: plugging cables into their appropriate ports and user-friendly browser-based configuration and management is all that is entailed. Since the eco PDU firmware is upgradeable over the Net, you can stay current with the latest functionality improvements simply by downloading updates from our website as they become available.

NRGence eco PDU supports any 3rd party V3 SNMP Manager Software and NRGence eco Sensors (eco PDU Manager Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.

With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.

PE8324

Features:

Connections

  • Supports 10/100Mbit Ethernet Interface
  • Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DCHP, ARP, NTP, DNS, Telnet, Auto Sense, Ping, SNMP V1,V2&V3
  • Supports three-level account/password security, IP/MAC¬ filter, 128 bit SSL, RADIUS
  • Supports eco Sensors, multiple Browsers (IE, Firefox, Chrome, Safari)

Metering

  • PDU and outlet level power metering and monitoring
  • Environment monitoring — supports external temperature/temperature & humidity sensors for rack temperature and humidity monitoring
  • Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting
  • Support door sensor

Outlet Switch Control

  • Remote power outlet control (On/Off, Power Cycle) by individual outlets and outlet groups
  • Outlet group support at the PDU
  • Supports multiple power control methods — Wake on LAN, System After AC Back, Kill the Power
  • Power-On sequencing — users can set the power-on sequence and delay time for each outlet to allow equipment to be powered on in the correct order
  • Proactive overload protection(POP) — automatically powers off the last outlet that caused the current overload

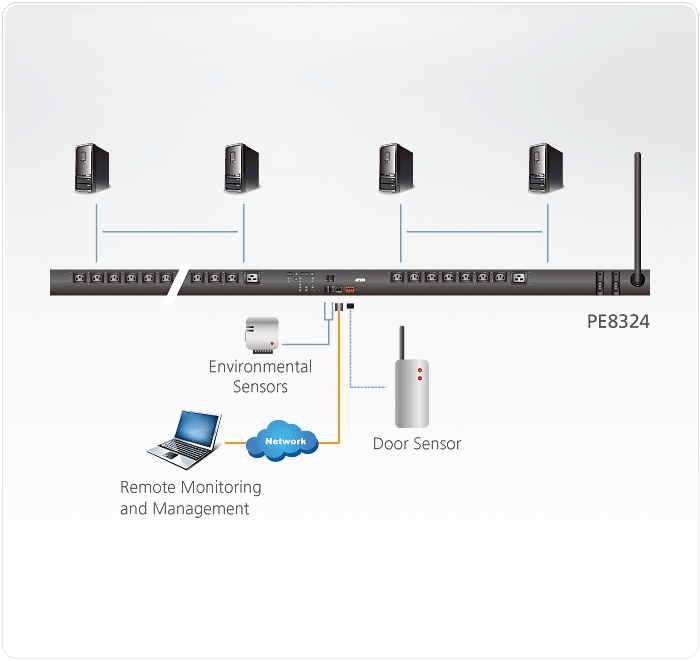

PE8324 Diagram

Specifications:
Function PE8324B PE8324G
Electrical
Nominal Input Voltage 100 240 VAC
Maximum Input Current 30A Max ; 24A (UL de-rated) 32A Max
Input Frequency 50-60 Hz
Input Connection NEMA L6-30P IEC 60309 32A
Input Power 6240 VA(Max) 4992 VA (UL de-rated) 7360 VA(Max)
Outlet Type Total : 21 x IEC320 C13 + 3 x IEC320 C19
Bank1-1 : Outlet 1 8 ; 7 x C13 + 1 x C19
Bank1-2 : Outlet 9 16 ; 7 x C13 + 1 x C19
Bank2 : Outlet 17 24 ; 7 x C13 + 1 x C19
Nominal Output Voltage 100 240 VAC
Maximum Output Current (Outlet) C13 : 15A (Max) 12A(UL de-rated)
C19 : 15A (Max) 12A(UL de-rated)
C13 : 10A (Max)
C19 : 16A (Max) , TUV De-rated 15A(Max)
Maximum Output Current (Bank) 15A(Max) 12A (UL de-rated) 16A(Max), TUV De-rated 15A(Max)
Maximum Output Current (Total) 30A(Max) 24A (UL de-rated) 32A(Max), TUV De-rated 30A(Max)
Breakers 2 x 16A UL489 Breaker 2 x 16A UL489 Breaker
Metering Per Outlet Level Current, Voltage, VA, PF, KWh Monitoring
Outlet Switch Yes
Environment Sensor Port 4
Metering Accuracy Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ 5000W +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Mechanical
Dimension (H x W x D) 177.5 x 6.6 x 4.4 cm
Shipping Dimensions ( H x W x D) 189 x 21 x 17 cm
Weight/Shipping Weight 6.5 / 10.5 kg
Power Cord Length 1.6 m
Environmental
Temperature (Operating / Storage) 0 50C / -20 60C 0 40C / -20 60C
Humidity (Operating & Storage) 0 80% RH, Non-Condensing
Compliance
EMC Verication FCC Part 15 Class A, Others by Reuest CE, Others by Request
Safety Verication TUV-CB, Others by Reuest TUV-CB, CE-LVD, Others by Request
