Power Distribution Unit

• 8 outlets
• 20A (UL derated 16A) / 16A
• Outlet Power Measurement

The PE8208 eco PDU is intelligent PDUs that contains 8 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*.

The eco PDUs offer remote power control combined with real-time power measurement - allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device or outlet level, from practically any location via a TCP/IP connection.

The eco PDU supports any 3rd party v3 SNMP Manager Software and the eco Sensors (Energy Management Software). The eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. With the eco Sensors, the Sensor-enabled eco PDU also offers comprehensive power analysis reports which can separate by departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display.

With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.


Features:
Power Distribution

Space saving 1U rack mount design with rear mounting
IEC or NEMA outlet models
3 digit 7-segment front panel LED shows Current / IP Address
Remote users can monitor outlet status via web pages on their browsers
Safe shutdown support
Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices' circuit breaker


Remote Access

Remote power control via TCP/IP and a built in 10/100 Ethernet port
Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
eco PDU Power Management software – eco Sensors
Supports SNMP Manager V3


Operation

Remote power outlet control (On, Off, Power Cycle) by individual outlets
Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
Easy setup and operation via a browser-based user interface
Multibrowser support (IE, Firefox, Chrome, Safari)
RTC support to keep the timer running during times of no power.
Supports up to 8 user and 1 administrator accounts


Management

Power status measurement at the PDU or Outlet level
LED indicators for current and IP address at Outlet level
Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the outlet level
Current and voltage threshold setting
Naming support for outlets
User outlet access assignment on an outlet-by-outlet basis.
Event logging and syslog support
Upgradeable firmware
Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian


Security

Two-level password security
Strong security features include password protection and advanced encryption technologies – 128 bit SSL
Remote authentication support: RADIUS


eco Sensors Energy Management Software

Automatic discovery of all PE devices within the same intranet
Remote real-time power measurement and monitoring
Remote real-time power outlet management*
Remote real-time environment sensor monitoring
Plotting/Monitoring of all PE devices
Exceed threshold alert through SMTP and Syslog
Power Analysis Report

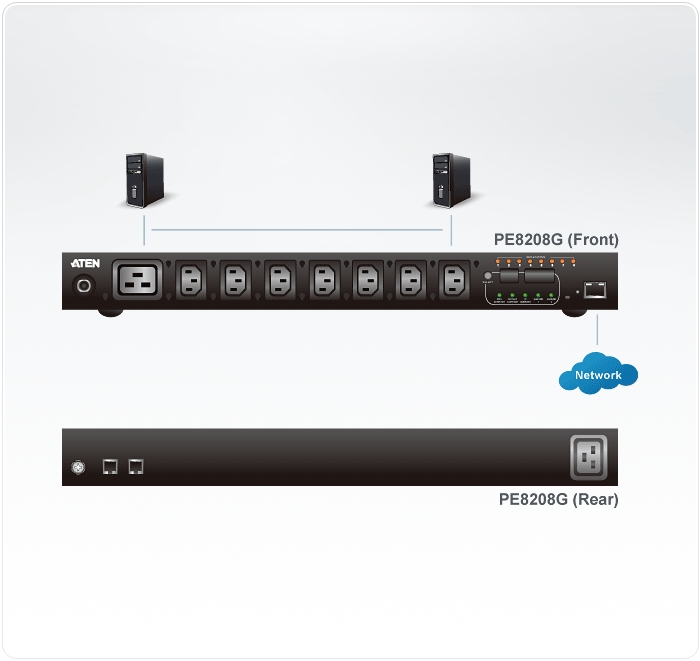

PE8208 Diagram

Specifications:

Function PE8208A PE8208B PE8208G
Power Outlets Direct 8
Connectors Power
Inlets
1 x IEC 320 C20
Power
Outlets
NEMA 8 x NEMA 5-20R NA
IEC NA 7 x IEC 320 C13 (Ports 28);1 x C19 (Port 1) 7 x IEC 320 C13 (Ports 28);1 x C19 (Port 1)
Sensor 2 x RJ-11
LAN 1 x RJ-45 (F)
LEDs Outlet Status 8 (Orange)
Outlet / IP 1-digit 7-segment (Orange)
PDU Current / Outlet Current / IP 3 (Green)
Current / IP 3-digit 7-segment (Orange)
Power 1 (Blue)
10/100 Mbps 1 (Orange / Green)
Link 1 (Green)
Sensor 2 (Green)
Switches Reset 1 x Semi-recessed Pushbutton
Power 1 x Non-fuse Breaker
I/P Rating 100120V~; 50/60Hz; 16A 100240V~; 50/60Hz; 16A 100240V~; 50/60Hz; 16A
Load Capacity 1920W 3840W 3840W
O/P Rating Per Port 100120V~; 50/60Hz; 16A 100-240V; 50/60Hz, 12A (C13)
100-240V~; 50/60Hz, 16A (C19)
100-240V; 50/60Hz, 10A (C13)
100-240V~; 50/60Hz, 16A (C19)
Total 100120V~; 50/60Hz; 16A 100-240V~; 50/60Hz, 16A 100-240V~; 50/60Hz, 16A
Environment Operating Temp. 0 - 50C
Storage Temp. -20 - 60C
Humidity 0-80% RH Non-condensing
Physical Properties Power Cord Length 3 m
Housing Metal
Weight 2.82 kg 2.87 kg 2.87 kg
Dimensions
( L x W x H )
43.24 x 21.93 x 4.40 cm
