JUH340 USB 3.0 4-Port Mini Hub
j5create’s high-performance USB 3.0 4-port Mini Hub allows for up to four USB 3.0 devices to be connected simultaneously at a transmission speed of 5Gbps, while still providing connectivity and support for the older USB 2.0 (480Mb/s) and 1.1 (12Mb/s) devices.
The JUH340 works with high-bandwidth Super Speed USB 3.0 devices, such as external USB 3.0 disk drives, high-resolution webcams, video surveillance cameras, digital video cameras, multi-channel audio and more. In addition, it supports fast charging for smart phone, tablet and iPad.
Features
- USB 3.0 Super Speed, 10 times faster transfer rate (5Gbps), backwards compatible with USB 2.0/USB1.0 specifications.
- Extends your MacBook or Ultrabook by one plug in USB 3.0 ports for more device connections.
- Elegant aluminum housing that is non-toxic and recyclable Compact

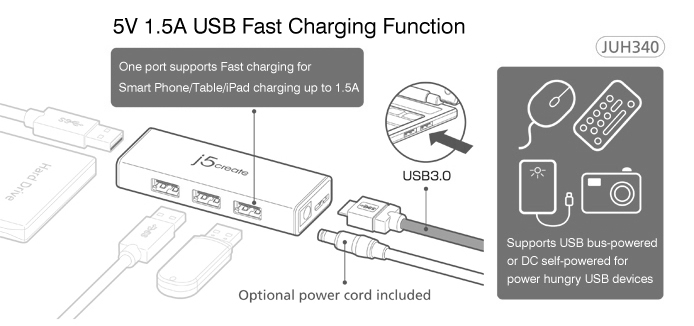

- One port supports Fast charging for Smart Phone/Table/iPad charging up to 1.5A
- Supports USB bus-powered or DC self-powered for power hungry USB devices
Specifications
Power
|
Power Mode
|
Self-powered / Bus-powered
|
Power Adapter
|
Input: AC 100-240V, 50~60 Hz Output: DC 5V/3A - US/JP/TW type Output: DC 5V/4A- EU/UK/AU type
|
Host (2)
|
Upstream Port
|
USB 3.0 Micro B Female connector
|
Cable
|
USB 3.0 Micro B to Type A (60cm)
|
Hub
|
Downstream Charge Port
|
USB 3.0 Type A Female Connector with Battery Charge *1 port Support 1.5A fast-charging when
|
Downstream Port
|
USB 3.0 Type A Female Connector *3 ports
|
Physical Specifications
|
Housing Material
|
Aluminum
|
Dimensions
|

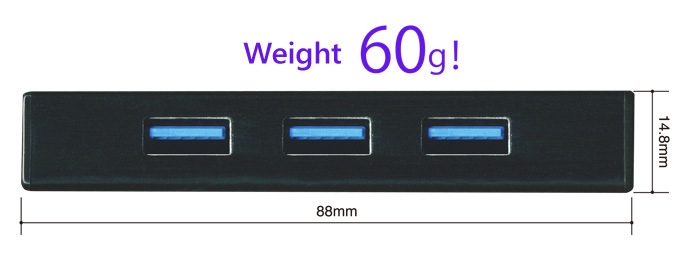

Main body: 88 (W)x 32.8 (H)x 14.8 (D) mm
|
Weight
|
60 g
|
Environments
Microsoft Windows 8/ 7/ XP(32-bit or 64-bit) /Vista /2000 Windows Server compatible
Mac OS X 10.8 ~ 10.2
Linux OS
Available USB port(USB 3.0 is recommended), backwards compatible USB2.0
Package Contents
j5create USB 3.0 mini-4 port hub JUH340
USB 3.0 cable (60cm)
Power Adapter (5V/3A-US/JP/TW type; 5V/4A-EU/UK/AU type)
Quick Installation Guide
