All stock codes associated to this product
RC130KKN1, RC-130-KKN1, 3730049, II20896, 4719512045176, 884102024221
Elite 130
- Unprecedented airflow for a Mini-ITX case with front mesh panel and vents on the top and side panels
- Dual Super Speed USB 3.0
- Supports a 120mm radiator in the front
- Supports standard length ATX PSU
- Supports ultra high-end graphics card up to 343mm / 13.5 inch, such as AMD HD7990 and NVIDIA GTX690
- Ample storage – up to 1 ODD / 3 HDDs / 5 SSDs:
- ODD x 1 + HDD x 2 + SSD x 1
- + HDD x 3 + SSD x 1
- + HDD x 2 + SSD x 3
- + HDD x 1 + SSD x 4
- + SSD x 5
Overview
Elite 130
High-Perforamnce M-ITX Case
Compact Yet Powerful- Elite 130
The Elite 130 is an ultra compact case with support for full size high-end desktop components. Other than conventional Mini-ITX cases, the Elite 130 supports more affordable, efficient and easily available full size ATX PSU's. It can accommodate even the largest high-end VGAs, a 5.25" optical drive and up to 3 HDDs and 4 SSDs. You can even install a 120mm radiator in the front for extreme cooling. Thanks to a smart airflow system featuring 2 fans and the full mesh front panel it manages to still keep the system extremely cool.
FEATURES
- Supports standard full sized ATX PSU, length up to 180mm / 7.1inch
- Ample storage - up to 1 ODD,3 HDDs and 4 SSDs
- Supports long VGAs up to 343mm / 13.5 inch (NVIDIA Titan / AMD HD7990)
- Full mesh front panel for optimized cooling;
- Dual SuperSpeed USB 3.0
COOLING
- Front 120mm fan included (removable)
- Support a 120mm radiator in front
- Side 80mm fan included (removable)

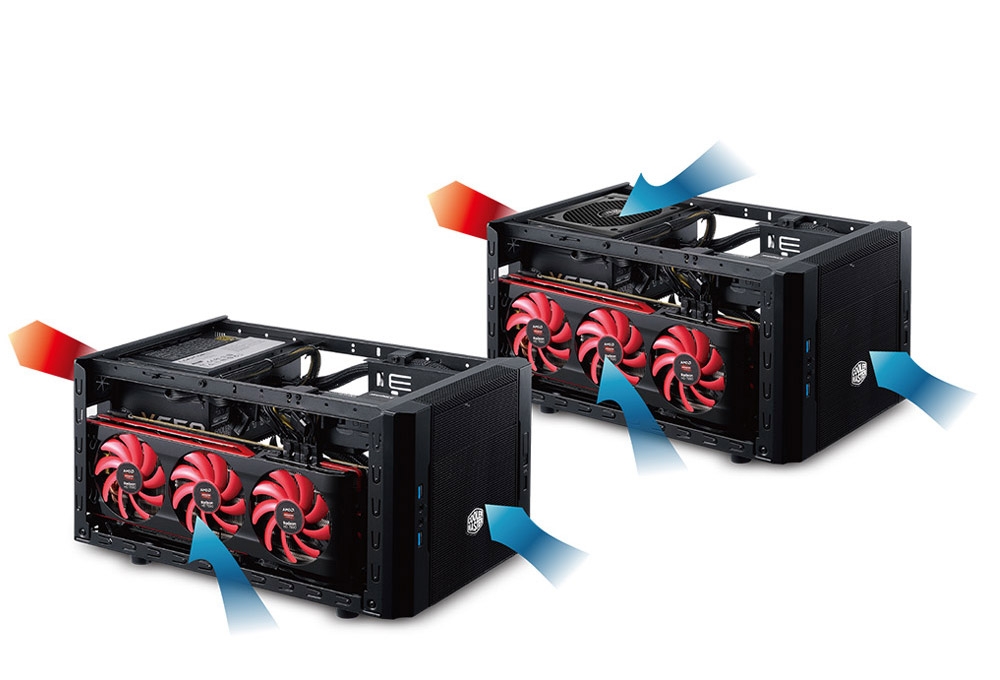

AIRFLOW
MORE INFORMATION
Specifications
| Model Number |
RC-130-KKN1 |
| Available Color |
Midnight Black |
| Materials |
Appearance: polymer front mesh panel
Case body: Steel alloy |

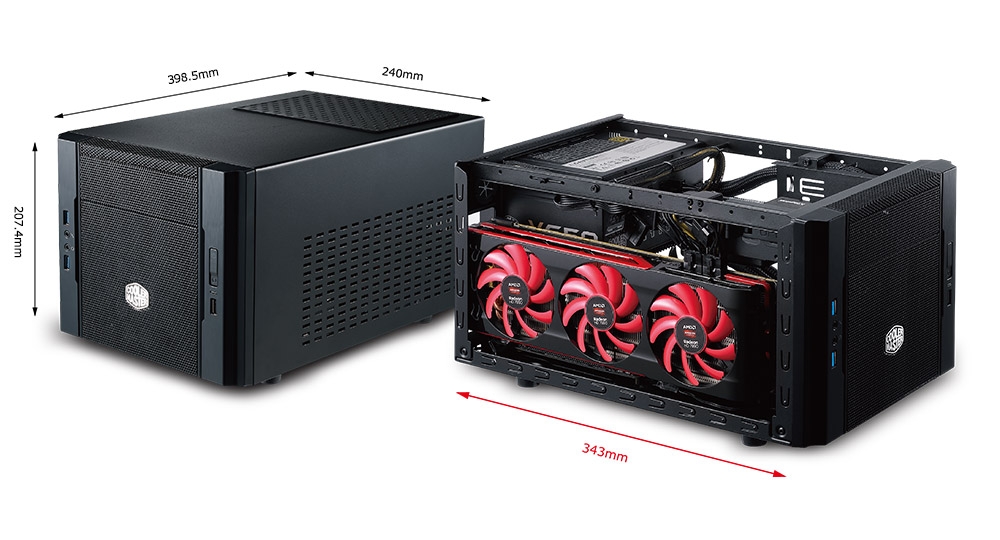

| Dimensions (W x H x D) |
240 x 207.4 x 398.5 mm / 9.4 x 8.2 x 15.7 inch |
| Net Weight |
3.1 kg / 6.8 lbs |
| M/B Type |
Mini-ITX |
| 5.25" Drive Bays |
1 |
| 3.5" Drive Bays |
3 (1 from 5.25 drive bay) |
| 2.5" Drive Bays |
5 (3 from 5.25" drive bays, 1 from the side bracket, 1 from the bottom) |
| I/O Panel |
USB 3.0 x 2, USB 2.0 x 1, Audio In & Out |
| Expansion Slots |
2 |
| Cooling System |
Front: 120mm fan x 1 (installed)
Side: 80x15mm fan x 1 (installed) |
| Power Supply Type |
Standard ATX PS2 |
| Maximum Compatibility |
VGA card length: 343mm / 13.5 inch
CPU cooler height: 65mm / 2.5 inch
PSU length:
180mm/ 7.1 inch (w/ less cable management)
142mm / 5.6 inch (w/ full cable management) |
