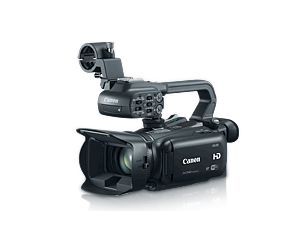

Canon XA25 Camcorder - Black







The XA25 is a compact, high-performance professional camcorder designed specifically for "run-and-gun," ENG-style shoots with enhanced I/O connectivity. The XA25 offers a unique combination of high-precision optics, outstanding image processing, multiple recording formats, flexible connectivity and intuitive user features. But its compact design does not mean compromised functionality this small and lightweight camcorder meets the quality and performance standards necessary for use in a wide range of applications, including news gathering, law enforcement and military, education and documentary, among others.

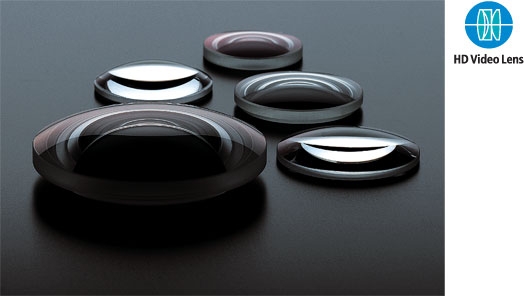

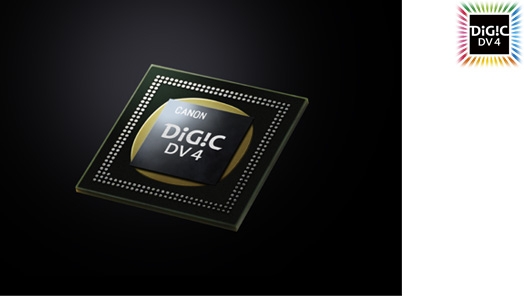

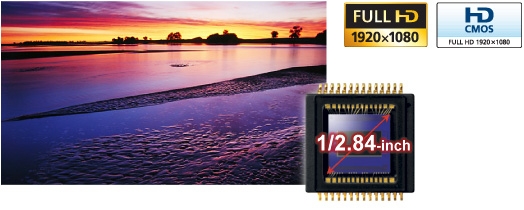

A powerful, all-new Genuine Canon 20x HD Video Lens with SuperRange Optical Image Stabilization and a new 8-Blade Circular Aperture extends user creativity, while a new 2.91 Megapixel Full HD CMOS Sensor and new DIGIC DV 4 Image Processor capture superb images with outstanding clarity.

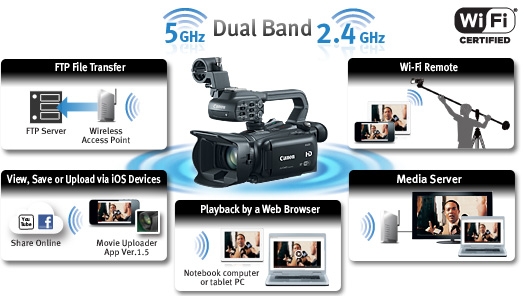

The camcorder features both MP4 (up to 35 Mbps) and AVCHD (up to 28 Mbps) codecs at up to 1080/60p resolution for virtually blur-free, high-quality capture of fast-moving subjects. Dual-band, built-in Wi-Fi technology allows easy FTP file transfer and upload to the internet.

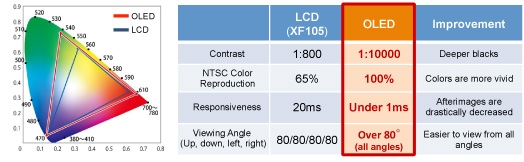

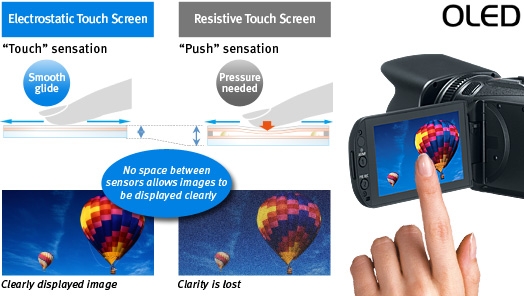

A 3.5-inch OLED Touch Panel Display with the equivalent of 1.23 million dots of resolution offers a high contrast ratio, a wide-view angle and high-speed response, while a pair of SDHC/SDXC-compatible card slots enable Relay Recording, double-slot recording, and all-new Dual Recording, which enables the XA25 to capture video in different recording formats simultaneously.



An HD/SD-SDI port allows uncompressed video with embedded audio and timecode data to be output to video editors, recorders, news trucks, workstations and other digital cinema/TV hardware, with greater image fidelity than standard HDTV format.

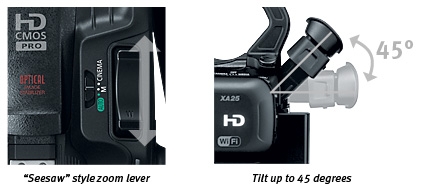

The 0.24-inch tilt-type color electronic viewfinder on the XA25 has approximately 100% field of view, and 1,560,000 dots of resolution help ensure critical focus adjustment, with peaking applied if necessary. A joystick located to the right of the viewfinder, where the thumb rests, enables control of camera settings on the viewscreen without having to use touch panel controls.







The XA25 is compatible with ubiquitous SDHC and SDXC memory cards, which provide super-high capacity and ultra-fast data transfer.







For safety and convenience, double-slot recording allows you to record simultaneously to each of the two SD memory card slots, providing an instant backup for your footage.



With Relay Recording, the XA25 automatically switches video recording from one SD memory card to the other when the first memory card becomes full.





Intelligent Optical Image Stabilization System with Powered and Dynamic Modes and Auto On/Off



The XA25 offers an advanced optical image stabilization system suited for reducing image blur in a wide variety of shooting situations. The different image stabilization options can be selected manually, or Intelligent IS can use an automatic detection system to identify the proper stabilization mode for the situation. Featured on the XA25 and new to Canon Professional Camcorders is Dynamic Mode, which provides electronic correction of roll and tilt.

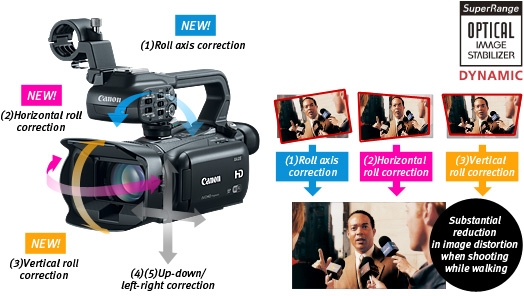

 Used for image stabilization at the wide end, Dynamic IS builds on translational (up-down/left-right) stabilization, adding roll axis correction, horizontal roll correction and vertical roll correction for five-axis correction. Image distortion is substantially reduced, even when shooting while in motion.

Macro IS corrects angular and shift-type shake in wide-angle shots.

Used for image stabilization in telephoto shooting, Powered IS corrects for low-frequency camcorder shake.



Full Manual Control


A Custom Key and Dial feature allows you to assign functions to an easily accessible key and adjust the settings with a control dial. They include:



Tv/Av: Use the dial to adjust shutter speed (Tv mode) or aperture (Av mode), as needed. In this mode the key has no effect.
Manual exposure: When manual control is selected, the dial can adjust aperture, shutter speed, or gain. Select items to adjust, such as aperture or other settings, with the key.
Exposure Lock can be set on or off as can the AGC Limit.




With the Level Marker feature, it's easy to keep the camcorder level for more accurate framing. The Grid Marker provides a reference grid in your viewfinder. Depending on the background color of your shot, you can choose between two different colors for better viewing contrast.



Gain may be manually set from 0 dB to 24 dB in 1 dB increments. Additionally, Auto Gain Control Limit allows you to set the maximum gain limit for the image sensor's sensitivity. With this function, brightness and noise can be balanced as required, and image quality can be maximized in low-light situations.



Power zoom is available in Constant and Variable settings in 3 modes: Fast (approx. 1.960 seconds), Normal (approx. 2.5180 seconds) and Slow (approx. 4.0285 seconds). To provide added control, there are 16 predefined steps in Constant mode.

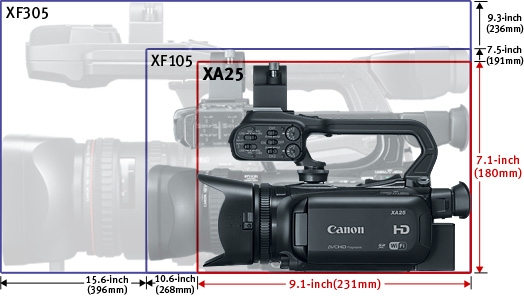

Weighing less than three pounds including the detachable handle, battery and lens hood and less than two pounds without the XA25 is ideal for high-action shoots when both speed and mobility are essential, and where keeping a low profile is an added benefit. Though small in size, this camcorder sacrifices nothing when it comes to professional functionality. It features a new seesaw style zoom lever, manual focus/zoom ring and joystick for easy control, and an electronic viewfinder that can tilt up to 45 degrees for low-angle shooting. It also has five Assign Buttons to help it fit to your operational needs.

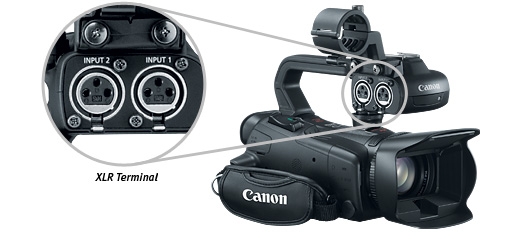

A stereo microphone is incorporated into the XA25 Professional Camcorder, as are two XLR audio inputs with +48V phantom power. The built-in microphone provides exceptional audio in fast-paced situations while the XLR inputs provide connectivity to external microphones and other professional audio devices. If you choose, the built-in microphone and XLR input can be used simultaneously.





Audio is recorded in 16-bit PCM format at 48 kHz for amazing quality and fidelity. And both the built-in microphone and XLR inputs have the option for automatic or full manual gain control. To prevent variations in the recorded audio level, the dial can also be locked.

The XA25 also includes a 3.5mm headphone terminal with 16 volume settings for accurate audio monitoring.

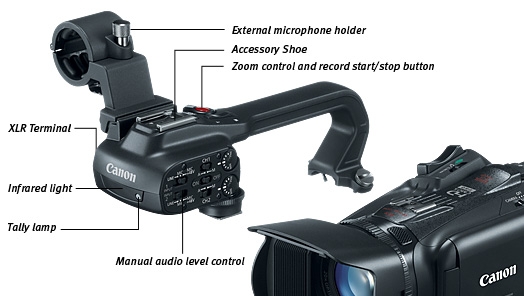

A detachable handle provides the pro shooter with expanded audio performance and added flexibility. Removing the handle allows the camcorder to be made more compact for convenient storage when travelling. Included on the handle are the following terminals, controls and monitors:



Two built-in XLR audio input terminals with phantom power



Accessory shoe (cold)



External microphone holder



Manual audio level control



Zoom control and record start/stop button



Infrared light



Tally lamp





To enhance focusing capability, the XA25 provides Focus Assist. It includes enlargement, which helps in capturing your subject in razor-sharp focus. It works by providing a 2x magnification of your subject, which is automatically cancelled when you start recording. Also included is color peaking, which shows the shooting object's focused areas in actual colors.

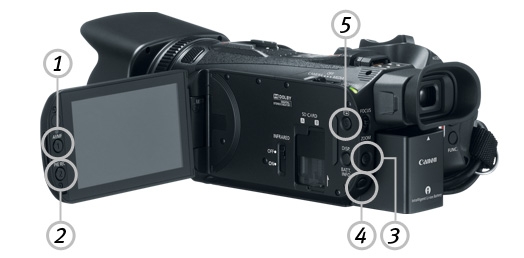

Button 1 is preset as AF/MF; it can be set to: Powered IS, BLC Always On, Face Only AF or Video Snapshot.
Button 2 is preset as Pre REC; it can be set to: WB Priority, IR Light, Audio Output CH, AF/MF or Rec.
Button 3 is preset as Rec Review; it can be set to: Review, Shooting Mode, BLC Always On, White Balance or AGC.
Button 4 has no preset; it can be set to: Limit, Focus, Exposure, Audio Scene, Microphone Level or Zoom.
Button 5 has no preset; it can be set to: Image Stabilizer, Image Effects or Wi-Fi  Remote.

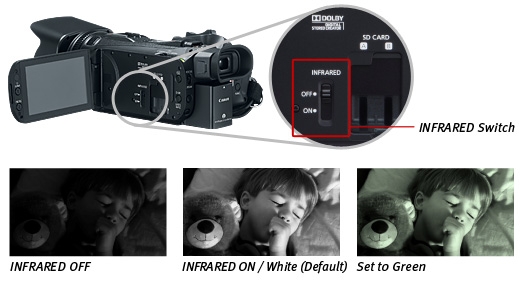

The XA25 Professional Camcorder features an Infrared Mode allowing the capture of video in conditions with little to no ambient light. It does so by removing the infrared cutoff filter from the optical path. Its specially designed lens coating allows the infrared light to pass through to the image sensor. Plus, the power of the infrared light is enhanced by 2.7 times compared to that of the XA10 camcorder. Additionally, the detachable handle of the XA25 features an infrared emitter with a diffuser to shoot pleasing infrared imagery even in complete darkness. For nature videographers or law enforcement users, the benefits of a compact, high performance camcorder for shooting in such conditions are obvious. Without the need to add lights, the shooter may remain hidden from subjects. Also, the XA25 gives the option of recording in green or white light mode.





Not only does the XA25 Professional Camcorder provide the professional user with complete control over the image, it also provides complete creative freedom when it comes to inputs and outputs, including:



HD/SD-SDI Output (see dedicated section for more details)

HDMI Output (HDMI mini connector, time code can be superimposed)
Composite Video Output (3.5mm)
USB Hi-Speed Terminal

(2) XLR Audio Input (when handle is attached) (See audio section for more details)
Microphone Input (3.5mm) (See audio section for more details)
Headphone Jack (3.5mm) (See audio section for more details)
Remote Control Terminal (compatible with LANC protocol)
Accessory Shoe (when handle is attached)

The XA25 is compatible with the optional Canon WM-V1 Wireless Microphone. Bluetooth technology allows high-quality audio to be recorded from up to 164 feet away (50m), making it ideal for events, ceremonies, nature recording and other situations that call for unobtrusive sound recording. With earphones attached, the WM-V1 Wireless Microphone can also be used as a two-way intercom, enabling more creative control, such as when discreetly providing an on-camera subject with direction.



Either color bars or color bars and test tone can be selected and recorded. The color bars comply with the SMPTE standard. -12 dB, -18 dB or -20 dB can be selected as the test tone.



Enhanced zebra pattern (70% or 100%) indicates ‘blown out’ or high brightness areas to help you set the proper exposure.



The white balance control has six available presets selectable through a variety of day and artificial light conditions (Daylight, Shade, Cloudy, Tungsten, Fluorescent H, and Fluorescent), as well as two manual white balance settings. Color temperature may also be manually set from 2,000K to 15,000K in 100K increments for more precise adjustment.



Additional Features



For applications such as storyboarding, continuity and publicity shots, the XA25 offers the ability to capture 1920 x 1080 still images. Photos may be captured to an SD memory card during recording, as well as frame grabbed during playback.



Perfect for news crews and live event shooters, the XA25 continuously buffers approximately three seconds of video in memory. When the Record button is pressed, recording begins and the contents of buffer memory are added, so you never miss an important shot.



The XA25 Professional Camcorder is compatible with Canons Intelligent Lithium-ion batteries. These batteries communicate remaining running time (down to the minute) so the user is well informed at all times.



The XA25 supports the following languages: Czech, Danish, German, Greek, English, Spanish, French, Italian, Hungarian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Finnish, Swedish, Turkish, Russian, Ukrainian, Arabic, Farsi, Thai, Chinese (simplified characters), Chinese (traditional characters), Korean and Japanese.



Audio
Audio Channels:	Stereo
Audio Formats:	LPCM
Microphone Technology:	Electret Condenser
Sound System:	Dolby Digital

Battery Information
Battery Model Supported:	BP-820

Built-in Devices
Built-in Devices:	Microphone
Built-in Devices:	Speaker

Display & Graphics
Aspect Ratio:	16:9
Display Resolution:	1230000 Pixel
Display Screen Type:	OLED
Image Sensor Size:	1/2.84"
Image Sensor Type:	CMOS
Number of Image Sensors:	1
Screen Size:	8.9 cm (3.5")
Total Camcorder Resolution:	3.1 Megapixel
Touchscreen:	Yes

Exposure
Exposure Control:	Program AE Aperture Priority AE Shutter Priority AE Manual
Longest Shutter Speed:	1/2 Second
Minimum Illumination:	0.1 lux
Shortest Shutter Speed:	1/2000 Second
White Balance Modes:	Auto Set 1 Set 2 Color Temperature (2,000K to 15,000K in 100K Increments) Daylight Shade Cloudy Tungsten Fluorescent Fluorescent H

General Information
Brand Name:	Canon
Manufacturer Part Number:	XA25
Manufacturer Website Address:	https://www.canon.com
Manufacturer:	Canon, Inc
Marketing Information:	The XA25 is a compact, high-performance professional camcorder designed specifically for "run-and-gun," ENG-style shoots with enhanced I/O connectivity. The XA25 offers a unique combination of high-precision optics, outstanding image processing, multiple recording formats, flexible connectivity and intuitive user features. But its compact design does not mean compromised functionality - this small and lightweight camcorder meets the quality and performance standards necessary for use in a wide range of applications, including news gathering, law enforcement and military, education and documentary, among others. A powerful, all-new Genuine Canon 20x HD Video Lens with SuperRange Optical Image Stabilization and a new 8-Blade Circular Aperture extends user creativity, while a new 2.91 Megapixel Full HD CMOS Sensor and new DIGIC DV 4 Image Processor capture superb images with outstanding clarity. The camcorder features both MP4 (up to 35 Mbps) and AVCHD (up to 28 Mbps) codecs at up to 1080/60p resolution for virtually blur-free, high-quality capture of fast-moving subjects. Dual-band, built-in Wi-Fi technology allows easy FTP file transfer and upload to the internet. A 3.5-inch OLED Touch Panel Display with the equivalent of 1.23 million dots of resolution offers a high contrast ratio, a wide-view angle and high-speed response, while a pair of SDHC/SDXC-compatible card slots enable Relay Recording, double-slot recording, and all-new Dual Recording, which enables the XA25 to capture video in different recording formats simultaneously. An HD/SD-SDI port allows uncompressed video with embedded audio and timecode data to be output to video editors, recorders, news trucks, workstations and other digital cinema/TV hardware, with greater image fidelity than standard HDTV format.
Product Model:	XA25
Product Name:	XA25 High Definition Digital Camcorder
Product Type:	Digital Camcorder

Image Formats:	JPEG

Interfaces/Ports
HDMI:	Yes
USB:	Yes

Lens
Aperture Range:	f/1.8 to 2.8
Digital Zoom:	400x
Filter Attachment Diameter:	58 mm
Focal Length (35mm Equivalent):	26.80 mm to 576 mm
Focal Length:	3.67 mm to 73.40 mm
Focus Modes:	Auto
Focus Modes:	Manual
Image Stabilization:	Electronic
Image Stabilization:	Optical
Optical Zoom:	20x

Memory
Memory Card Supported:	Secure Digital (SD) Card
Memory Card Supported:	Secure Digital Extended Capacity (SDXC)
Memory Card Supported:	Secure Digital High Capacity (SDHC) Card

Miscellaneous
Certifications & Standards:	FCC
Features:	Face Detection
Features:	Pre-Record
Green Compliance Certificate/Authority:	REACH
Green Compliance Certificate/Authority:	RoHS
Green Compliance Certificate/Authority:	WEEE
Green Compliant:	Yes
Platform Supported:	Mac
Platform Supported:	PC

Network & Communication
Wireless LAN:	Yes

Physical Characteristics
Depth:	182 mm
Height:	84 mm
Weight (Approximate):	771.1 g
Width:	109 mm

Storage
Recording Formats:	Full HD
Recording Media:	Memory Card

Video
Interlaced Scan:	Yes
Maximum Frame Rate:	60 fps
Maximum Video Lines:	1080
Maximum Video Resolution:	1920 x 1080
Progressive Scan:	Yes
Video Formats:	AVCHD
Video Formats:	H.264/MPEG-4 AVC
Video Formats:	MP4
Video System:	PAL

Viewfinder
Viewfinder Type:	Electronic
