Metered Rack PDU

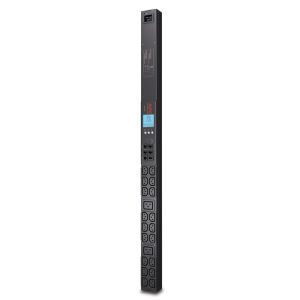

Rack PDU 2G, Metered, ZeroU, 16A, 230V, (18) C13 & (2) C19, IEC309 Cord

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Includes: Installation guide, Locking input power cord, Rack Mounting brackets, Safety guide, Serial configuration cable

AP8858EU3

Product Overview

Metered Rack PDU Features & Benefits

Availability
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Agility
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Technical Specifications


Output

Nominal Output Voltage
230V
Maximum Total Current Draw per Phase
16A
Output Connections
(18) IEC 320 C13 IEC 320 C13
(2) IEC 320 C19 IEC 320 C19
Overload Protection
No

Input

Nominal Input Voltage
200V, 208V, 230V
Input Frequency
50/60 Hz
Input Connections
IEC 309 16A 2P+E
Cord Length
9.84feet (3meters)
Number of Power Cords
1
Acceptable Input Voltage
100-240VAC
Maximum Line Current per phase
16A
Maximum Input Current per phase
16A

Physical

Net Weight
6.44lbs. (2.93kg)
Maximum Height
35.50inches (902mm)
Maximum Width
2.20inches (56mm)
Maximum Depth
1.72inches (44mm)
Shipping Weight
10.83lbs. (4.92kg)
Shipping Height
44.25inches (1124mm)
Shipping Width
6.38inches (162mm)
Shipping Depth
4.20inches (107mm)
Color
Black

Environmental

Operating Environment
23 - 113F (-5 - 45C)
Operating Relative Humidity
5 - 95%
Operating Elevation
0-10000feet (0-3000meters)
Storage Temperature
-13 - 149F (-25 - 65C)
Storage Relative Humidity
5 - 95%
Storage Elevation
0-50000feet (0-15000meters)

Conformance

Regulatory Approvals
CSA C22.2 No. 60950, IEC 60950, METI Denan, UL 60950-1, VDE
Standard Warranty
2 years repair or replace

Sustainable Offer Status

RoHS
Compliant
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
Battery Directive
Compliant
Battery Notes
Contains Lithium Coin Cell
