All stock codes associated to this product
KVR13LR9S4/8, 740617215649

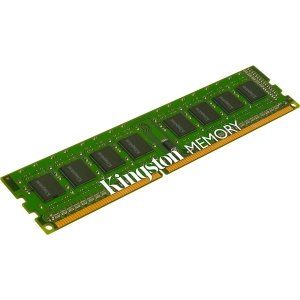

KVR13LR9S4/8
8GB 1Rx4 1G x 72-Bit PC3L-10600
CL9 Registered w/Parity 240-Pin DIMM
DESCRIPTION
This document describes ValueRAM's 1G x 72-bit (8GB) DDR3L-1333 CL9 SDRAM (Synchronous DRAM), low voltage, registered w/parity, 1Rx4 ECC memory module, based on eighteen 1G x 4-bit FBGA components. The SPD is pro-grammed to JEDEC standard latency DDR3-1333 timing of 9-9-9 at 1.35V and 1.5V. This 240-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES
- JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply
- VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
- 667MHz fCK for 1333Mb/sec/pin
- 8 independent internal bank
- Programmable CAS Latency: 9, 8, 7, 6
- Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
- Programmable CAS Write Latency(CWL) = 7 (DDR3-1333)
- 8-bit pre-fetch
- Burst Length: 8 (Interleave without any limit, sequential with starting address 000 only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
- Bi-directional Differential Data Strobe
- Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm 1%)
- On Die Termination using ODT pin
- On-DIMM thermal sensor (Grade B)
- Average Refresh Period 7.8us at lower than TCASE 85C, 3.9us at 85C < TCASE < 95C
- Asynchronous Reset
- PCB : Height 1.18 (30mm), double sided component
SPECIFICATIONS
- CL(IDD): 9 cycles
- Row Cycle Time (tRCmin): 49.5ns (min.)
- Refresh to Active/Refresh: 260ns (min.)
- Command Time (tRFCmin)
- Row Active Time (tRASmin): 36ns (min.)
- Maximum Operating Power: (1.35V) = 4.919 W* (1.50V) = 5.601 W*
- UL Rating: 94 V - 0
- Operating Temperature: 0oC to 85oC
- Storage Temperature: -55oC to +100oC
