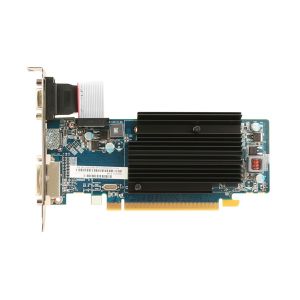

SAPPHIRE R5 230 2GB DDR3

The new SAPPHIRE R5 230 2GB is a low profile PCI-Express graphics cards that require no additional power connector, making it ideal for entry level systems or for upgrading existing PC systems and providing additional monitor support. It has 160 Stream processors and core clocks of 625MHz, and offer 2GB DDR3 memory to deliver excellent performance and great value. Outputs are Dual-link DVI, VGA and HDMI, supporting a choice of monitor types and the cards ship with optional backplates for use in standard or low-profile chassis.

Specification
Display Support 2 x Maximum Display Monitor(s) support
Output 1 x D-Sub(VGA)
1 x HDMI (with 3D)
1 x Dual-Link DVI-D
GPU 625 MHz Core Clock
160 x Stream Processors
Video Memory 2048 MB Size
64 -bit DDR3
1334 MHz Effective
Dimension 190(L)X94(W)X22(H) mm Size.
1 x slot
Software Driver CD
SAPPHIRE TriXX Utility
Accessory Low Profile Bracket (Optional)

Overview

D-Sub(VGA)



The 15-pin VGA connector is common to most monitors and high definition television.You can connect your LCD or CRT monitor / TV with D-sub VGA connector.




HDMI (with 3D)

Support for Deep Color, 7.1 High Bitrate Audio, and 3D Stereoscopic, ensuring the highest quality Blu-ray and video experience possible from your PC.


Dual-Link DVI-D

Equipped with the most popular Dual Link DVI (Digital Visual Interface), this card is able to display ultra high resolutions of up to 2560 x 1600 at 60Hz.


40nm Process Technology

Cutting edge manufacturing process allows for efficient, high performance parts which use less power than their predecessors.


AMD Stream Technology

Accelerate the most demanding applications with AMD Stream technology and do more with your PC. AMD Stream Technology allows you to use the teraflops of compute power locked up in your graphics processer on tasks other than traditional graphics such as video encoding, at which the graphics processor is many, many times faster than using the CPU alone.


AMD Avivo HD (DVD/HD-DVD/Blu-ray Playback)

Watch the hottest Blu-ray movies or other HD content at full 1080p display resolution and beyond and enjoy a more feature rich experience with enhanced Unified Video Decoder(UVD)


AMD CrossFireX Multi-GPU Technology



Triple or Quadruple gaming power with AMD CrossFireX Multi-GPU Technology.AMD CrossFireX technology supports up to four graphics cards to be used in a single system.




AMD HD3D Technology

Enjoy the most immersive experience possible with full support for High Definition Stereoscopic 3D, a technique that presents 2D images (movies, games, photos) in a format that creates the illusion of three-dimensional depth when using compatible 3D displays / glasses / software.




PCI-Express 2.1




Microsoft DirectX 11

Get intense gaming performance and unrivalled image quality with stunning 3D visual effects, realistic lighting and lifelike imagery with SAPPHIRE graphics cards supporting DirectX11. New features in DirectX11 such as Hardware Tesselation, HDR Texture Compression, Multi-threading support and DirectCompute bring lifelike gaming and an experience never possible on a PC before.


OpenGL 4.1

Supports the latest OpenGL API (Application Programming Interface) to accelerate performance of applications outside of DirectX, i.e. Adobe Autodesk 2D/3D graphic design.


AMD Catalyst Control Center

The AMD Catalyst Control Center software application gives you complete control over the performance and visual quality of your SAPPHIRE AMD Radeon based graphics card allowing for the best experience on your PC.


Dolby TrueHD and DTSHD Master Audio Support

Support for copy protected, high bandwidth, 7.1 channel surround sound over HDMI. Get a fully immersive, high definition audio experience with the latest Blu-ray movies. (Requires a DVI to HDMI dongle on some models, an HD capable monitor and a Blu-ray drive)


Anti-aliasing features

Supports advanced AA (Anti-aliasing) features to maximise your enjoyment of high definition gaming.

  • Multi-sample anti-aliasing (2, 4 or 8 samples per pixel)
  • Up to 24x Custom Filter Anti-Aliasing (CFAA) for superior quality
  • Adaptive super-sampling and multi-sampling
  • Gamma correct
  • Super AA (AMD CrossFireXconfigurations only)
  • All anti-aliasing features compatible with HDR rendering




AMD PowerPlay

Dynamically manage power efficiency and take control of your performance with AMDs revolutionary AMD PowerPlay TM power management technology delivering high performance features when needed and conserving power when the demand on the graphics processor is low. This seemless technology dramatically reduces the overall power consumption allowing for break-through energy efficiency.


TriXX Utility

TriXX helps users to get the optimum performance from compatible SAPPHIRE graphics cards in any application by allowing them to monitor, tune and save different settings of key parameters for the card.


Windows 7 support

WHQL (Windows Hardware Quality Labs) Certified drivers and logos are available for all SAPPHIRE HD2000, HD3000, HD4000 and HD5000 series cards ensuring compatibility and reliability with Microsoft Windows 7.


AMD App Acceleration

AMD App Acceleration is a set of technologies designed to improve video quality and enhance application performance. Full enablement of some features requires support for OpenCL, DirectCompute or DirectX Video Acceleration (DXVA).


Cutting-edge Quad HD display support (4K Support)

The display resolution on AMD Radeon HD7000 series is quadrupled to the resolution of 4KX2K(4096X2160)from the outputs of DisplayPort 1.2 and HDMI.


Windows 8/8.1 support

WHQL (Windows Hardware Quality Labs) Certified drivers and logos are available for SAPPHIRE cards ensuring compatibility and reliability with Microsoft Windows 8/8.1.

System Requirements
  • PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
  • 1024MBMinimum of system memory.
  • Installation software requires CD-ROM drive.
  • DVD playback requires DVD drive.
  • Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive.
  • 400 Watt Power Supply is required.
