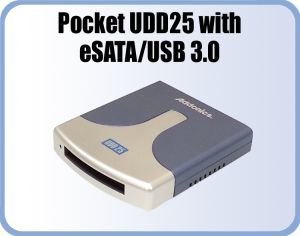

PU25EU3-4F - (Pocket UDD25 PRO, eSATA/USB 3.0)
Content: Pocket UDD25 with eSATA / USB 3.0 connection, 100 cm. eSATA cable (AAESATA100C), 1M USB 3.0 male A - male A cable (AAU3AA3F), 2.5" M2 Flash drive (AD25M2SSD), 2.5" mSATA flash drive (AD25MSD), 2.5" CFast flash drive (AD25CFASTD), 2.5" CF flash drive (AD25CFD), user guide.
The Addonics Pocket UDD25 is a storage Reader/Writer designed to use standard 2.5" HDD / SSD, M2 card, mSATA SSD, CFast card or CF card as a removable storage media like a floppy disk. As a matter of fact, literally any storage media that are in a standard 2.5" drive form factor with SATA connector can become a storage media for the Addonics Pocket UDD25. Designed to mount directly into a standard 3.5" drive bay, th Pocket UDD25 can be connected to aDesktop, Server or computing equipment via a SATA or the ubiquitous USB 3.0 / 2.0 port.
Ther is also a READ only of the Pocket UDD25 that blocks all the write functions to the media, an ideal solution for forensic application or for protecting virus contamination or data tampering.For more information, please visit the Pocket READ ONLY UDD25 product page.

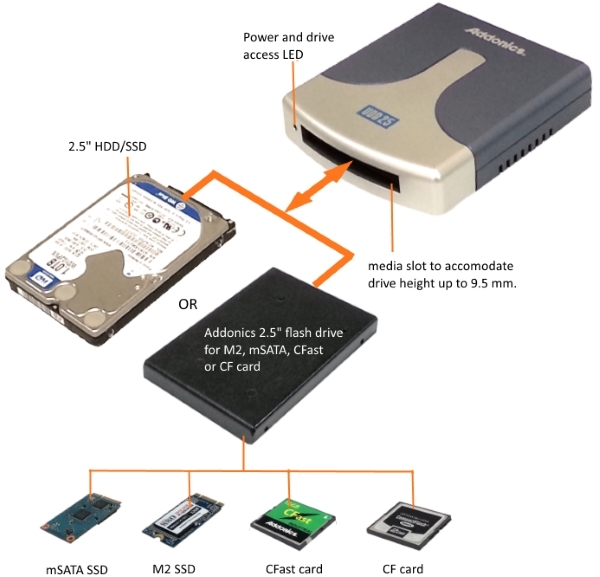

Features illustration of Pocket UDD25
The following Addonics optional 2.5" flash drive kit can READ/WRITE to M2, mSATA, CFast or CF cards via this Pocket UDD25 device:
|
M2 card in 2.5" M2 drive
kit (AD25M2SSD)
|
mSATA SSD in 2.5" mSATA
drive kit (AD25MSD)
|
CFast card in 2.5" CFast
drive kit (AD25CFASTD)
|
CF card in 2.5" CF drive kit
(AD25CFD)
|
Features
- Read/Write to standard 2.5" SATA HDD/SSD or storage media with same dimension and connectors of the standard 2.5" SATA HDD
- Read/Write to M2, mSATA, CFast and CF card using optional Addonics2.5" flash drive kit(these adapters are included in the PRO model: PU25EU3-4F)
- Media can be insert or removed like using a floppy disc without restarting the computer (SATA connection requires SATA port that supports hot swap feature. All Addonics SATA controllers support hot swapping)
- Supported drive height from 7 - 9.5 mm
- Connect to system via SATA or USB 3.0 / 2.0 port
- Support SATA 1, 2 and 3.0 speed*, up to 6 Gbps data transfer when connecting to eSATA 3.0 port
- Support USB 3.0 and 2.0 speed*, up to 5 Gbps data transfer* with USB 3.0 connection
- Comes with all necessary cables:
- eSATA - eSATA cable (AAESATA100C)
- USB 3.0 male A - male A cable (AAU3AA3F)
- Portable - compact size and weight less than 6 oz
- Powered from USB port or optional external power adapter (AAPAC5V)
- Complete Plug and Play, no software driver to install
- Media can be used as a boot device (for CF card, it may need to be fixed disk type depending on the OS)
- Compatible with Windows 8, 7, Me, XP, 98SE, all versions of Windows Server, Mac 9.0 and later release, Linux kernel 2.4 and later
Specifications:
- Drive slot accommodates drive thickness up to 9.5 mm

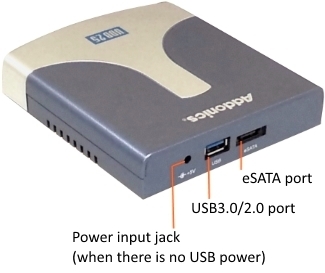

- Device interface connectors: eSATA and USB 3.0 type A female
- Combo LED for power and drive access
- Powered from USB port or via external power adapter (AAPAC5V)
- Dimension (W x L x H): ~ 118 x 137 x 26 mm(4.65 x 5.39 x 1.02 in.)
- Weight: ~159 g (5.6 oz.)
- Operating temperature and humidity: 0 - 65 C, 5 - 90 %RH
- Storage temperature and humidity: -20 - 75 C, 0 - 95 %RH (non-condensing)
