All stock codes associated to this product
AD25CFD
2.5" CF Flash Drive
Model: AD25CFD
Overview
This Addonics 2.5" CFFlash drive turns a regular CF card into a 2,5" SSD. The drive frame and the connector mimic the exact size and connector locationof a 2.5" SATA hard drive. So once the CF is mounted inside this 2.5" CF Flash drive, it can be used just like a standard 2.5" SATA hard drive.
Model: AD25CFD (installation of the CF card requires disassembing and reassembing the adapter into the bracket. Good for application that require permanent and secure installation
CF installation illustration
Completed 2.5" CF Flash drive

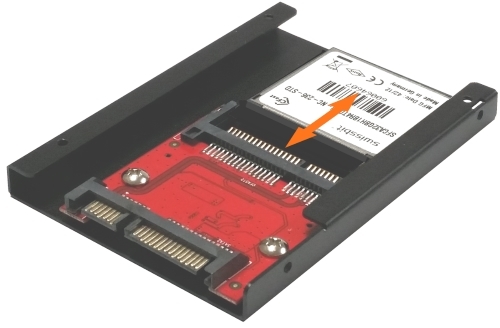

Model: AD25CFD-N (for easy installation or replacement of the CFast card)
CF card can be inserted into or removed from the adapter directly
Note: CF card in the diagrams is for illustration purpose and is not part of the 2.5" CF Flash drive product
Once the CF media is coverted into the 2.5" CF Flash drive, it can also be used as a 2.5" removable hard drive or a 3.5" hard drive with the optional 2.5" to 3.5" drive adapter (also called Snap-In 25, model: AE25SN35SA)
Mounting of the 2.5" CF Flash drive into
the removable tray of the Snap-In 25 |
Loading the removable tray into the Snap-in 25, which can be used just like a 3.5" SATA hard drive |
The snap-In 25 can be mounted intoa 3.5" drive bay of a Destop system |
 |
 |
 |
Features
- Build your own 2.5" SATA SSD with CF I/II cardof your choice
- Replace 2.5" hard drive with low power and shock resistant CF card
- Use as direct replacement for 2.5" 9 mm height SATA hard drive for Notebook or any computer equipment
- Can be used as removable storage media in conjunction with the AddonicsPocket UDD25orInternal UDD25
- Use as a 3.5" hard drive by using the optional 2.5" to 3.5" drive adapter (model: AE25SN35SA)
- CF Card can be the primary bootable device containing the OS and applications.
- OS independent.No software driver required
Specifications
- 22-pin SATA and power combo connector (same as 2.5" SATA hard drive)
- SATA Hot-swappable support when connected to SATA port supporting such feature
- Maximum transfer rate 150 MB/sec
- Support DMA and UDMA mode for CF media with these features
- 1 CF slot that supports CF type I/II card or Micro Drive

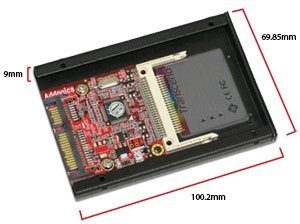

- Dimensions: same as 2.5" hard drive with 9 mm height - 69.85 mm (W) x 100.2 mm (L) x 9 mm (H)
- Power: +5V from PC power supply
- Maximum Current: ~150 mA at 5V
- Operating Temperature: 0 C to + 75 C
- Operating Humidity: 5% - 95% (non condensing)
- Storage Temperature: -40 C to + 85 C
- Storage Humidity: 5% - 95%
- Warranty: One Year
